Air Door
>>
Air Door Actuator / Motor
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

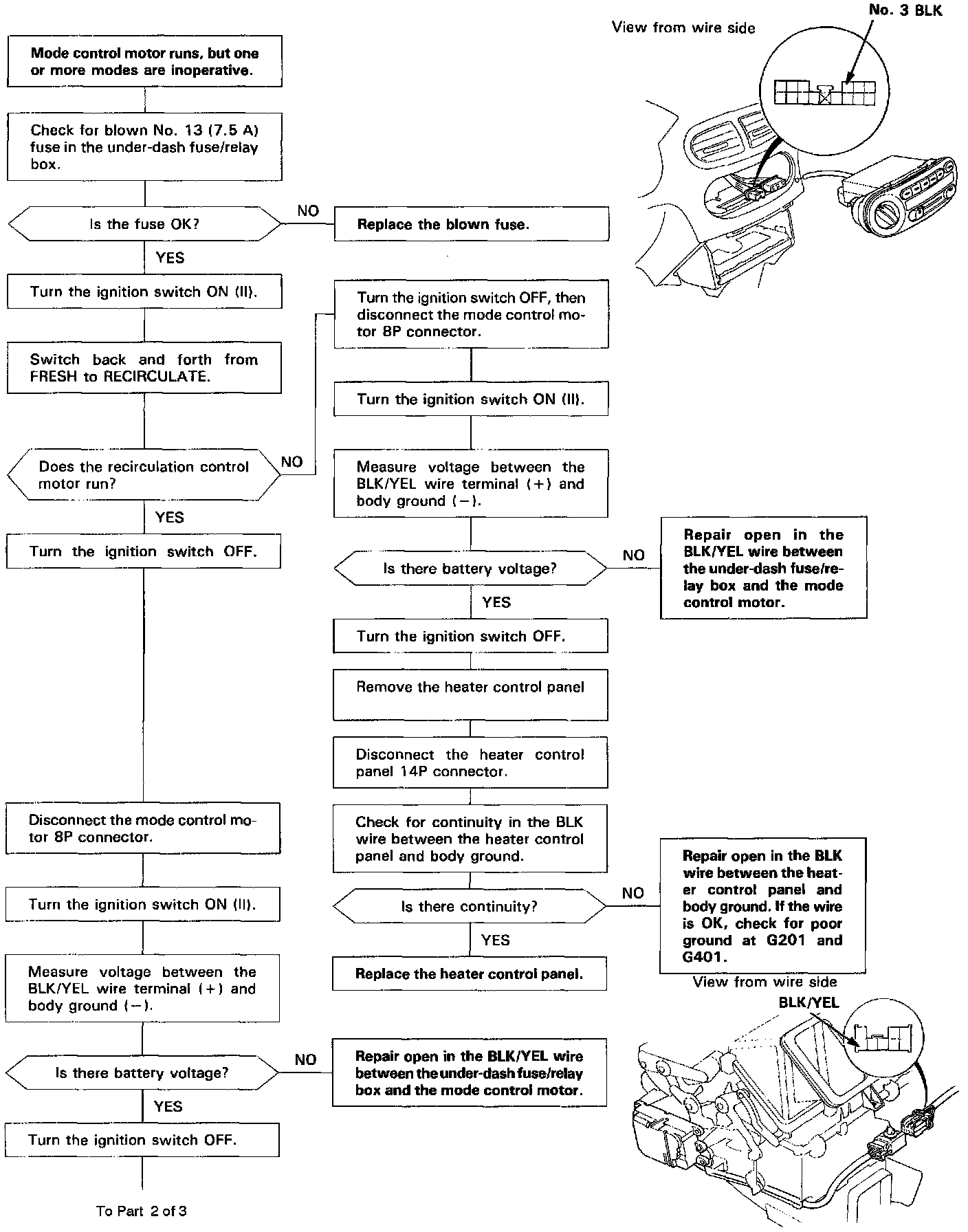

Flow Chart-Mode Control Motor (Part 1 Of 3):

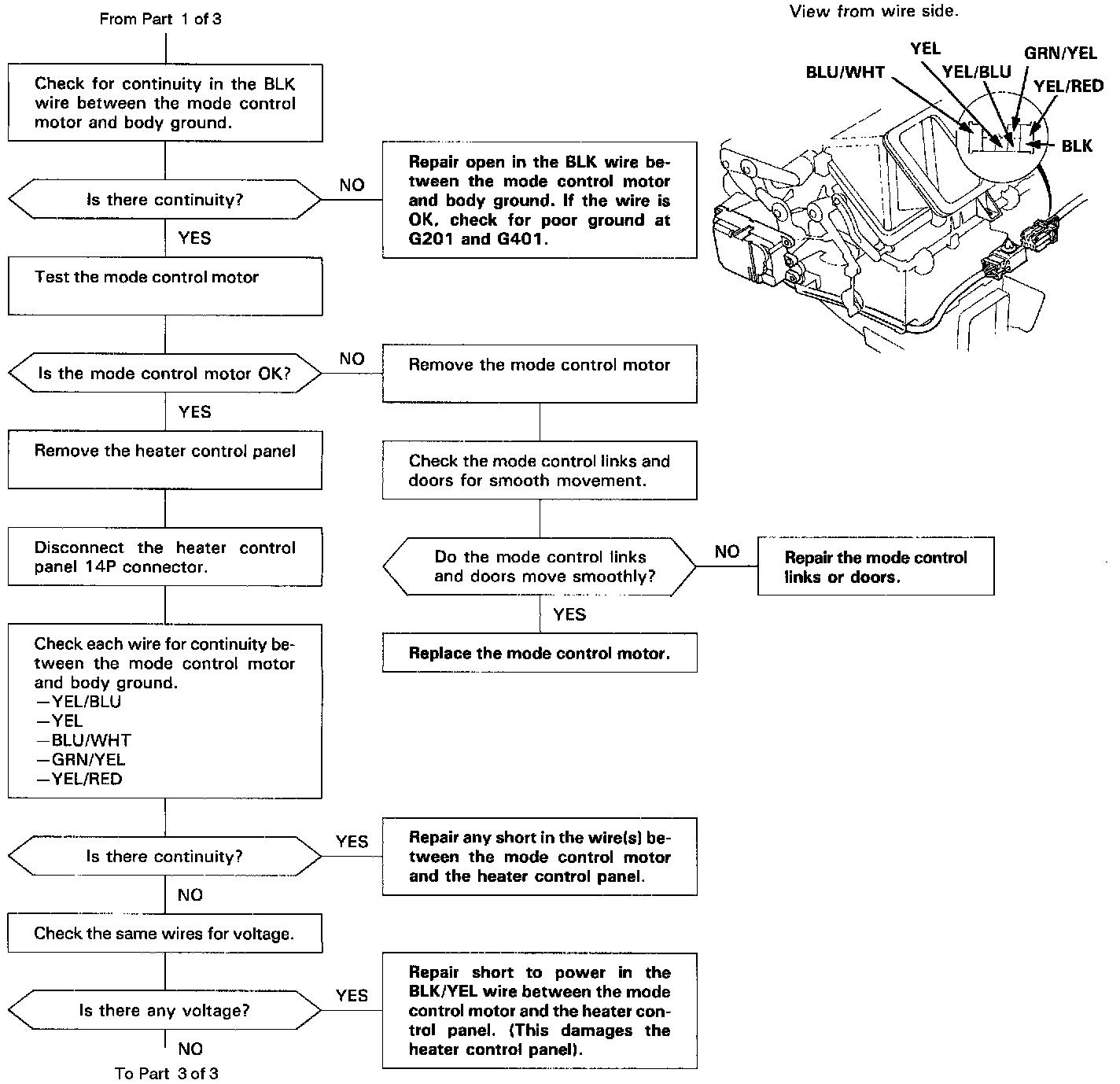

Flow Chart-Mode Control Motor (Part 2 Of 3):

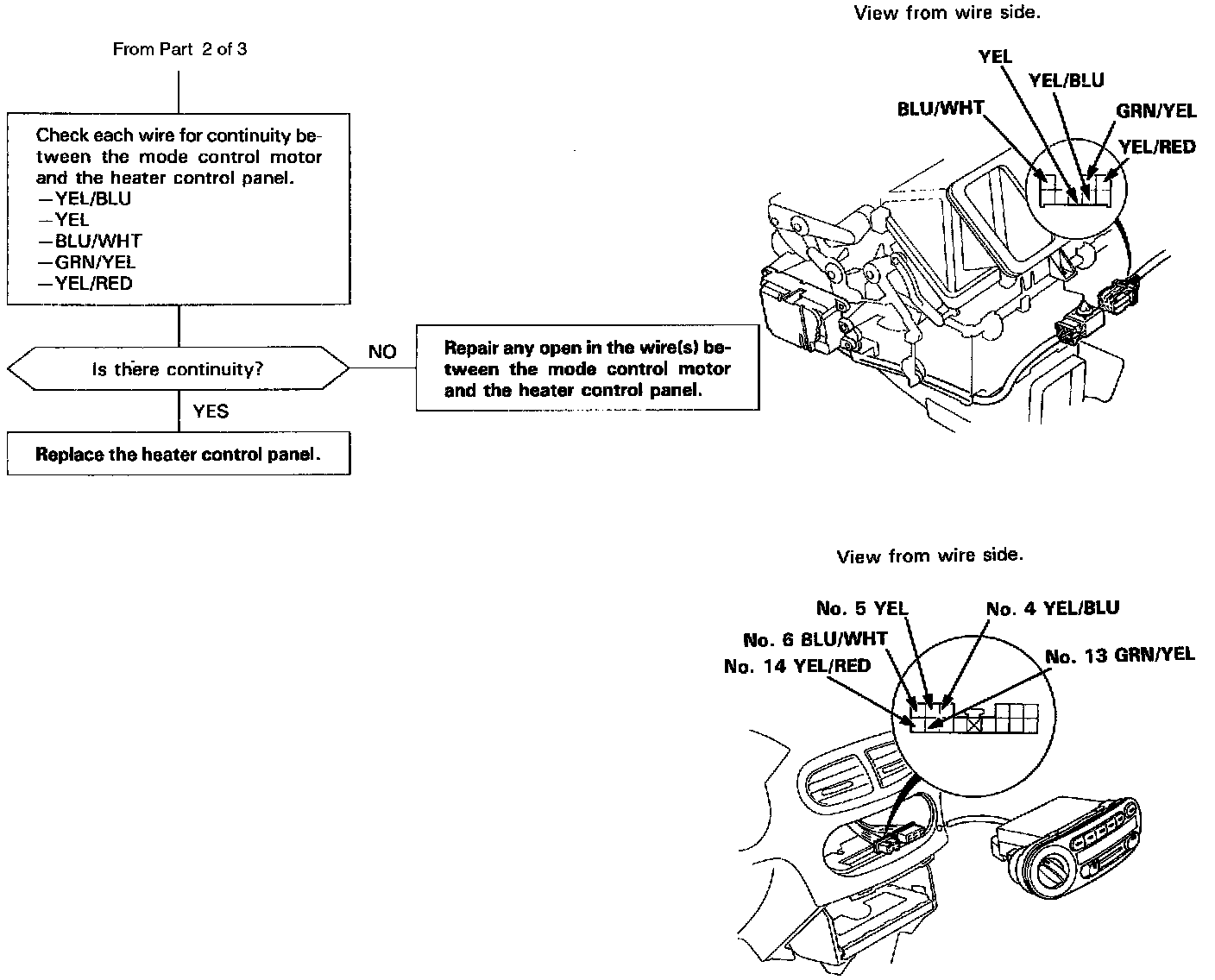

Flow Chart-Mode Control Motor (Part 3 Of 3):
