Toe-In

1. Release parking brake.
2. Before adjustment, note location of compensator arm adjusting bolts.

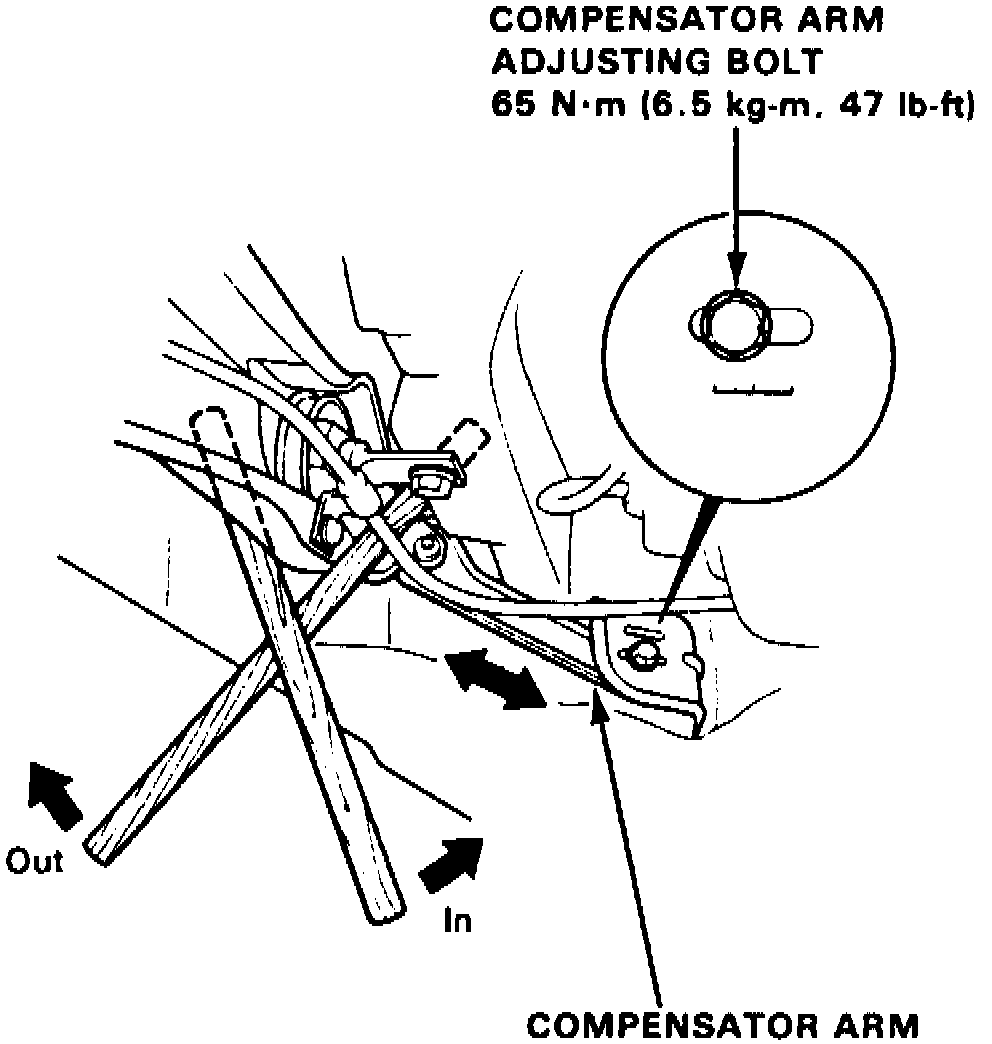

Fig. 4 Rear Toe-In Adjustment:

3. Loosen adjusting bolt and slide compensator arm in or out, Fig. 4, to adjust toe.
4. Torque adjusting bolt to 47 ft. lbs.
