Mainshaft Bearing/Oil Seal Replacement

TOOLS REQUIRED
- 07749-0010000 Driver
- 07947-6340500 Attachment
- 07736-A01000A Adjustable Bearing Puller, 25-40 mm
- 07746-0010500 Attachment, 62 x 68 mm
- 07746-0010600 Attachment, 72 x 75 mm

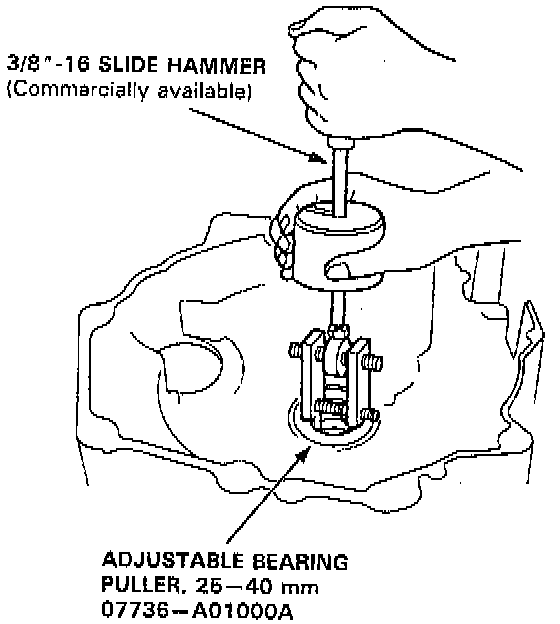

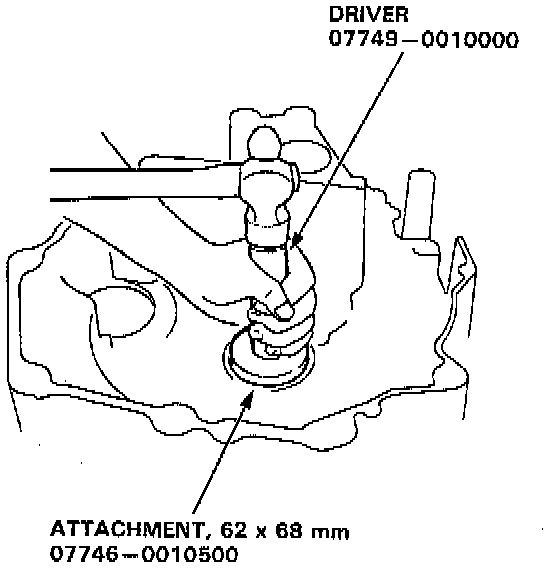

1. Drive out or pull up the mainshaft bearing and oil seal using the special tools as shown.

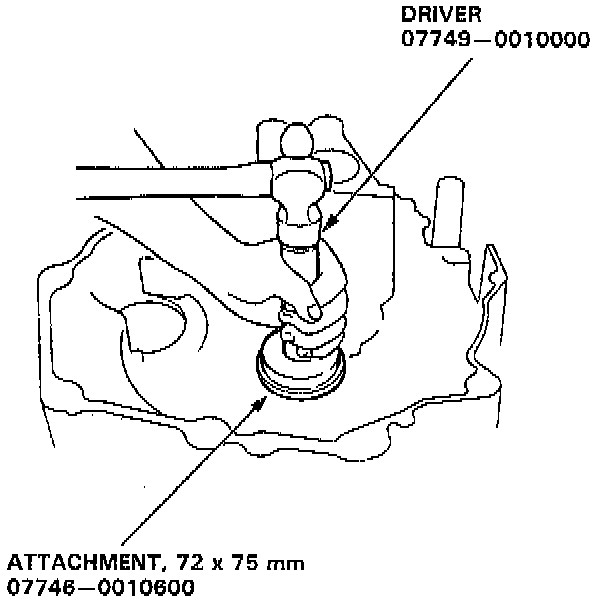

2. Drive in the new mainshaft bearing until it bottoms in the housing, using the special tools as shown.

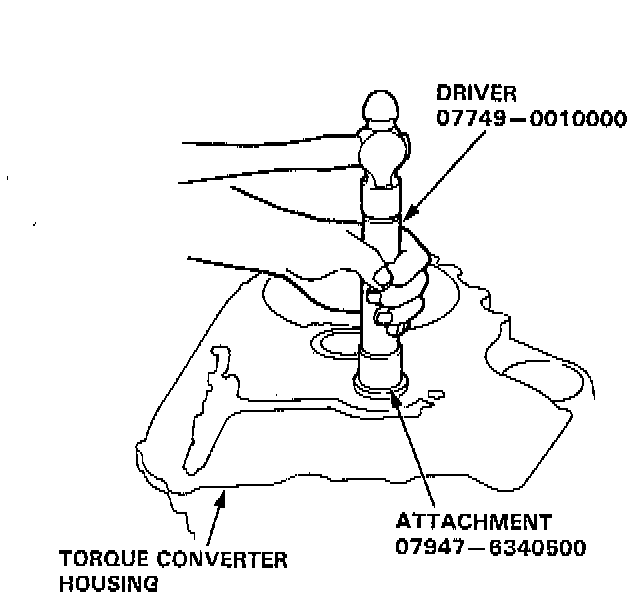

3. Install the new oil seal flush with the housing using the special tools as shown.
