Throttle Valve Cable/Linkage: Adjustments

NOTE: Before inspecting the throttle control cable, make sure;
- Throttle cable free play is correct.
- Idle speed is correct.
- To warm up the engine to normal operating temperature (cooling fan comes on).

1. Verify that the throttle linkage is in the full-closed position.

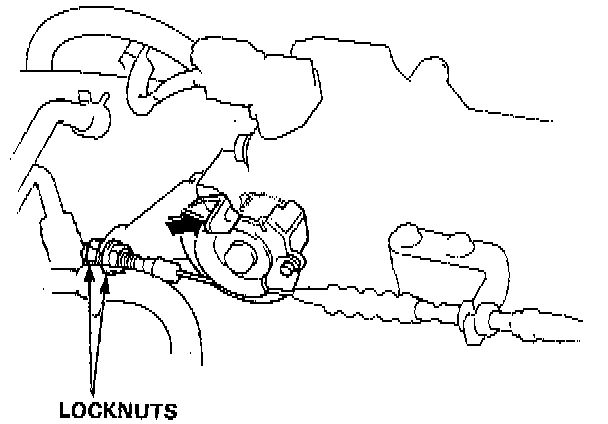

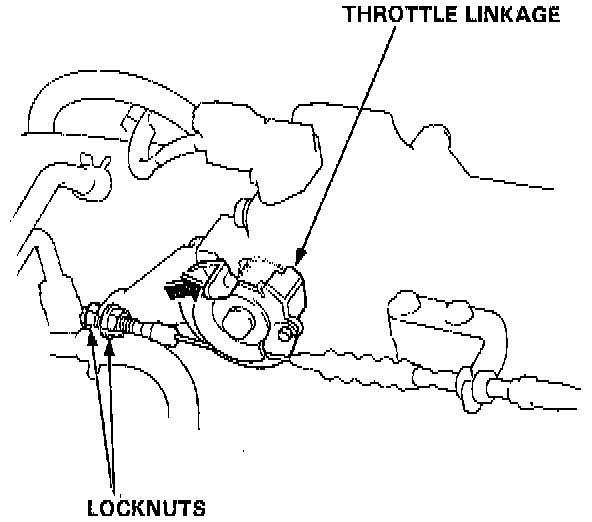

2. Loosen the locknut of the throttle control cable at the throttle linkage.

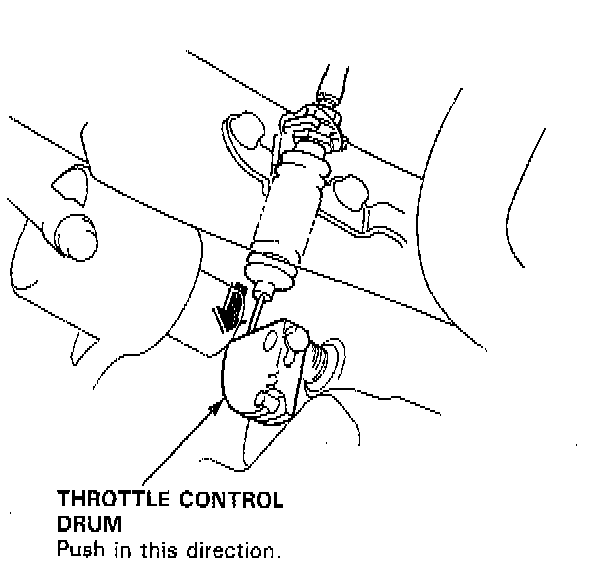

3. Remove the free play of the throttle control cable with the locknut, while pushing the throttle control drum to the full-closed position as shown.





4. Tighten the locknuts.
5. After tightening the locknuts, inspect the synchronization and throttle control drum movement.
