Removal and Installation

1. Drain power steering fluid from reservoir.
2. Loosen power steering pump adjusting bolt, mounting bolts and nuts, then remove power steering belt.
3. Cover alternator with shop towels to prevent damage from spilled power steering fluid, then disconnect inlet and outlet hoses from power steering pump and plug hoses. Take care not to spill fluid on body or parts. Wipe off any spilled fluid at once.

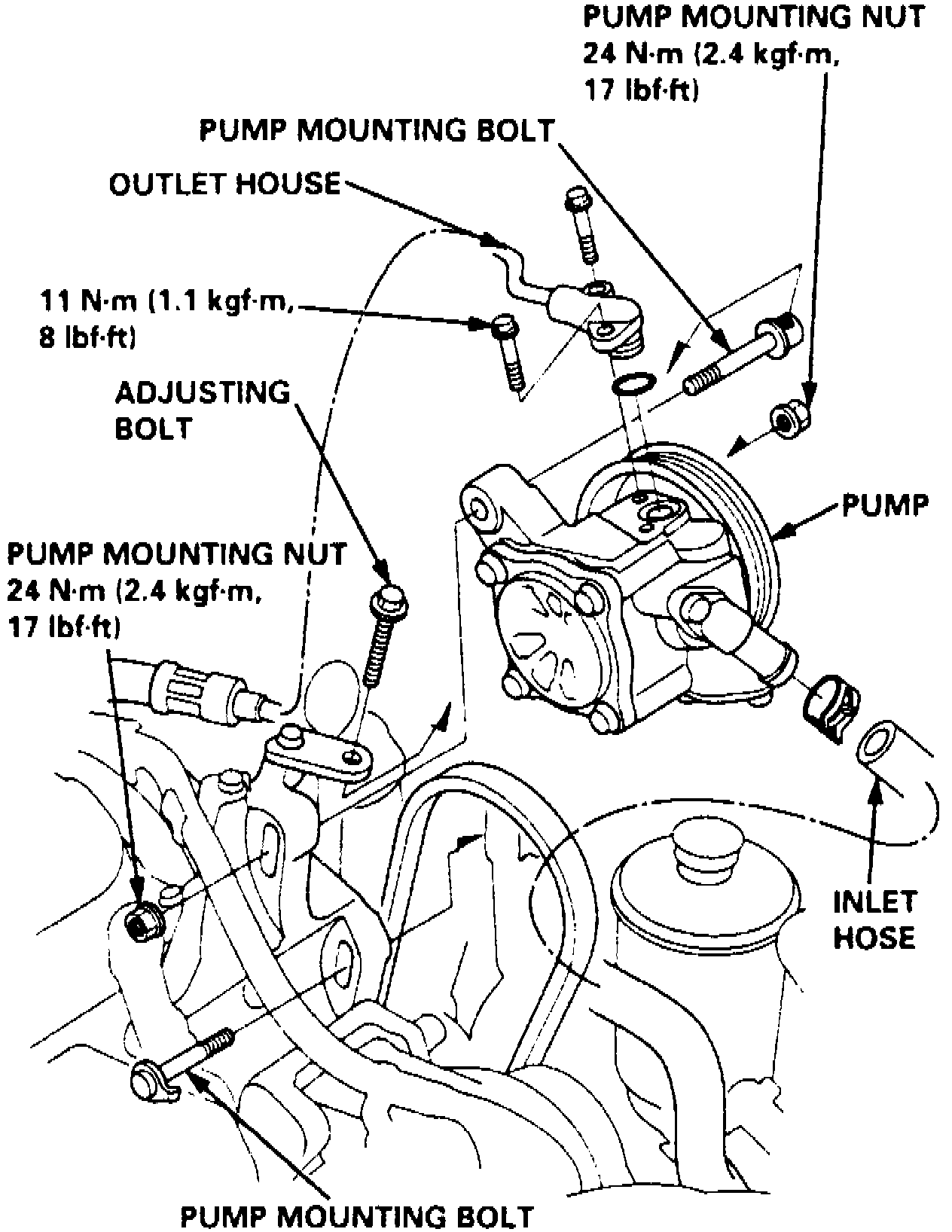

Fig. 6 Power Steering Pump Removal:

4. Remove power steering pump mounting bolt, then remove power steering pump, Fig. 6. Do not turn steering wheel with pump removed.
