Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Prelude L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

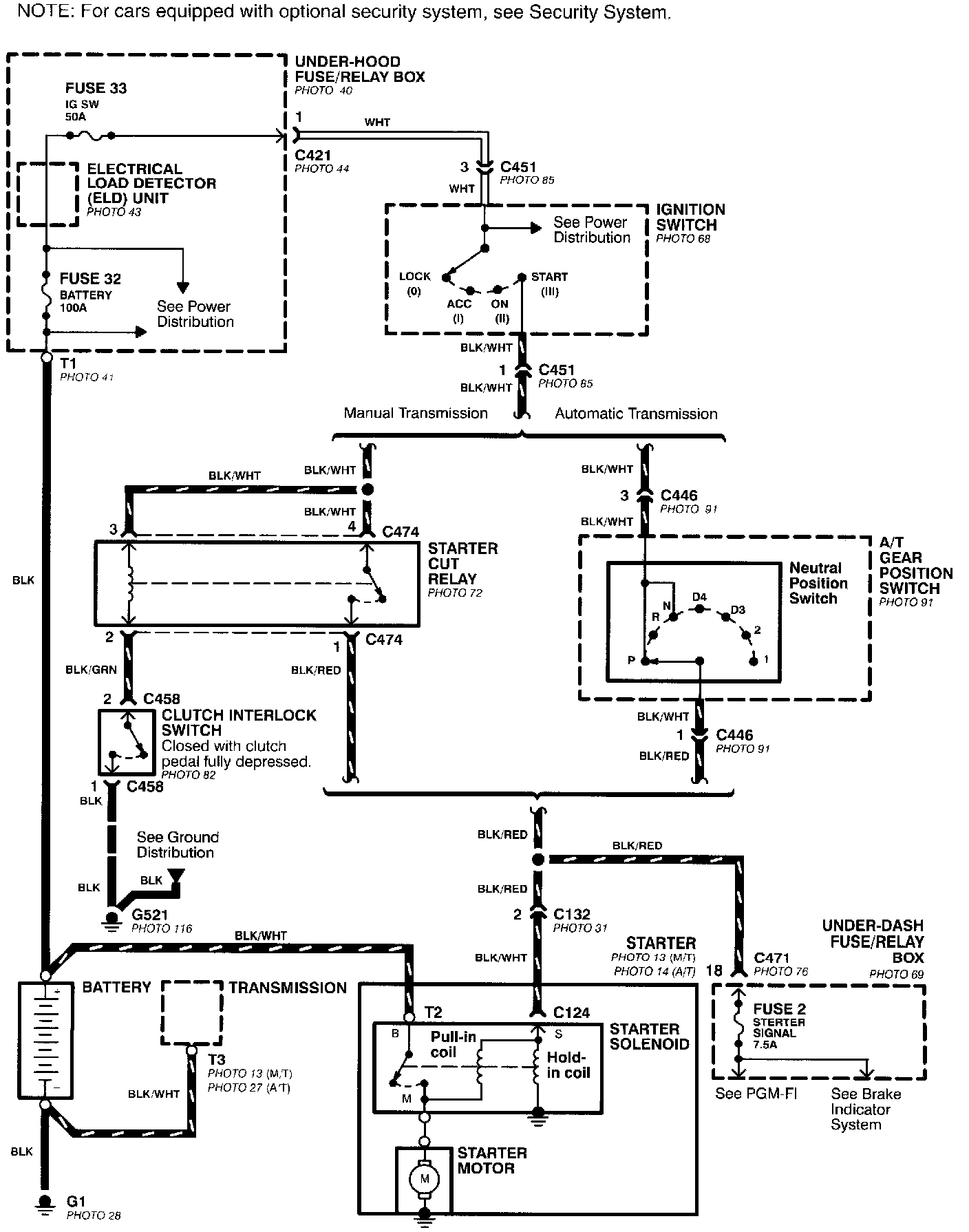

Starting System:
