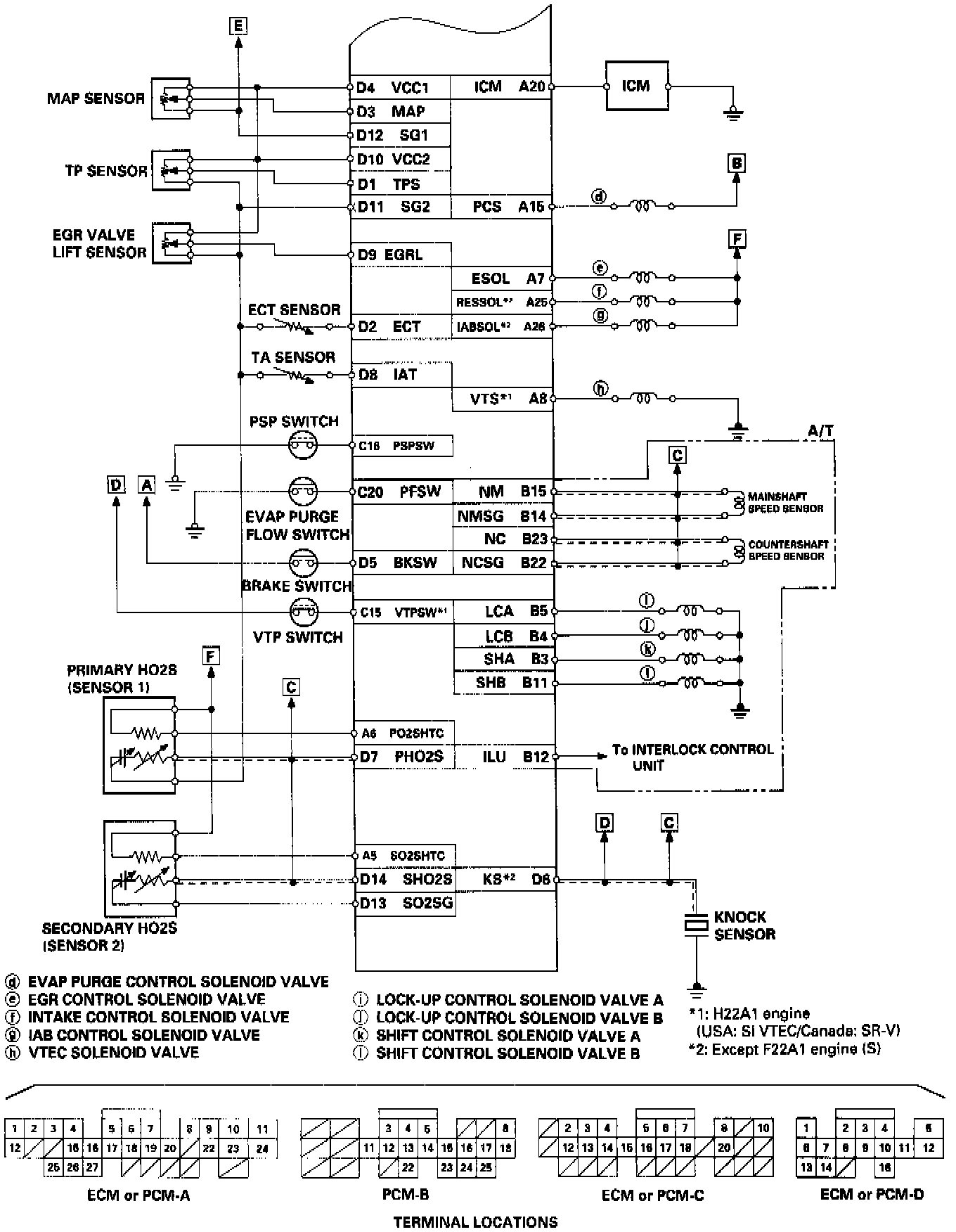

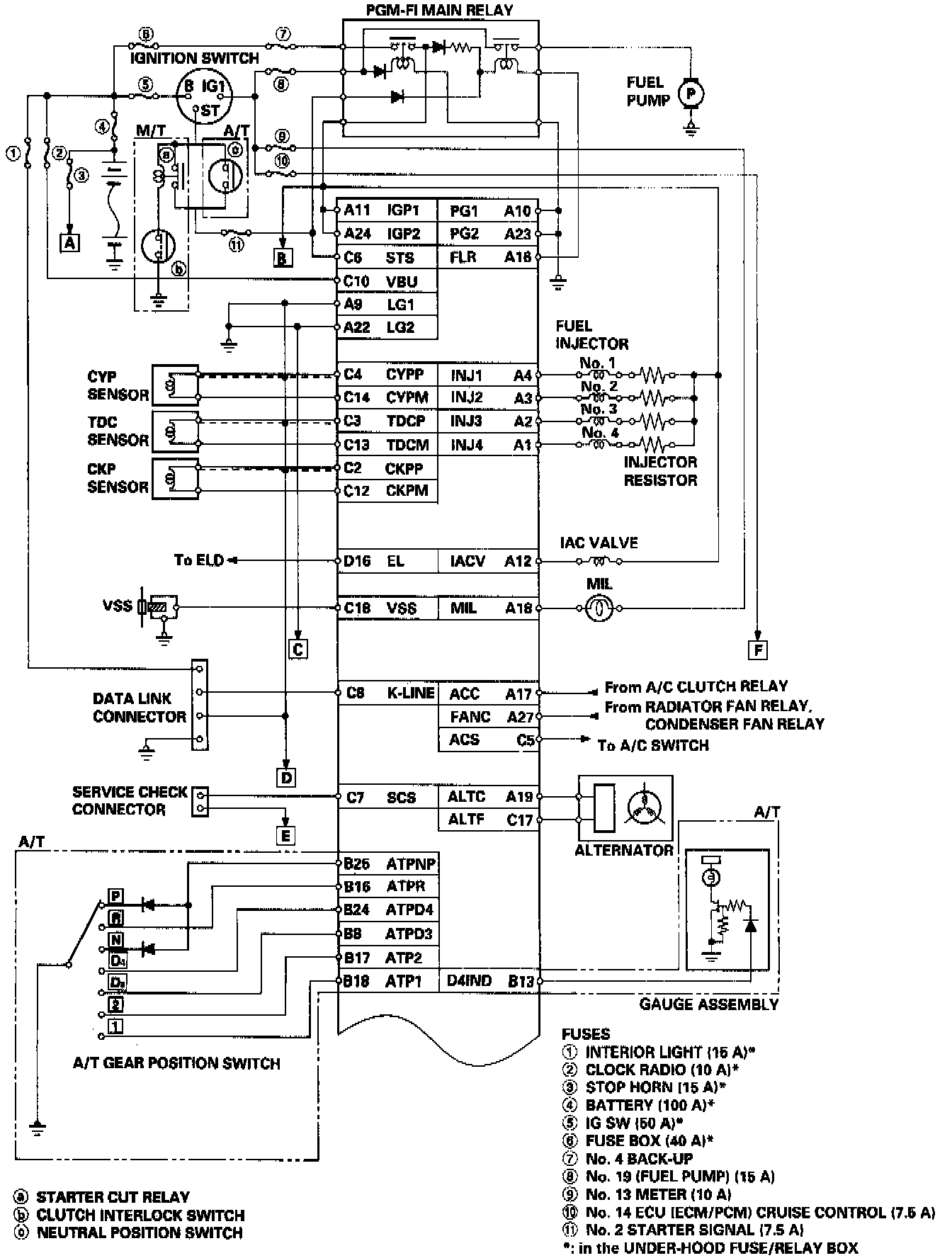

Home >> Honda >> 1996 >> Prelude L4-2.3L DOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Part 1

Part 1
