Prelude L4-2.3L DOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
S, SI, SR
S, SI, SR

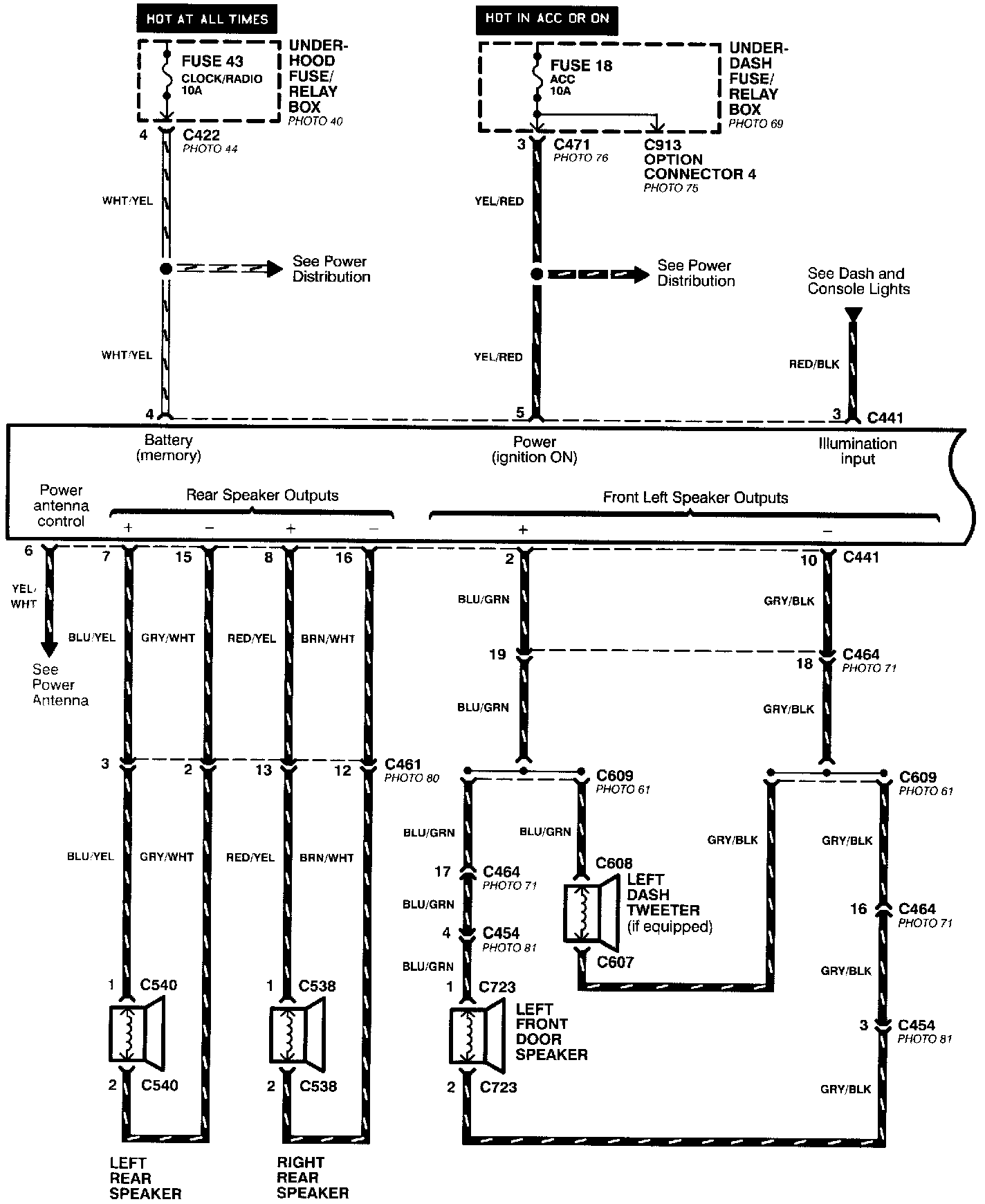

Stereo Sound System- S, Si, SR (Part 1 Of 2):

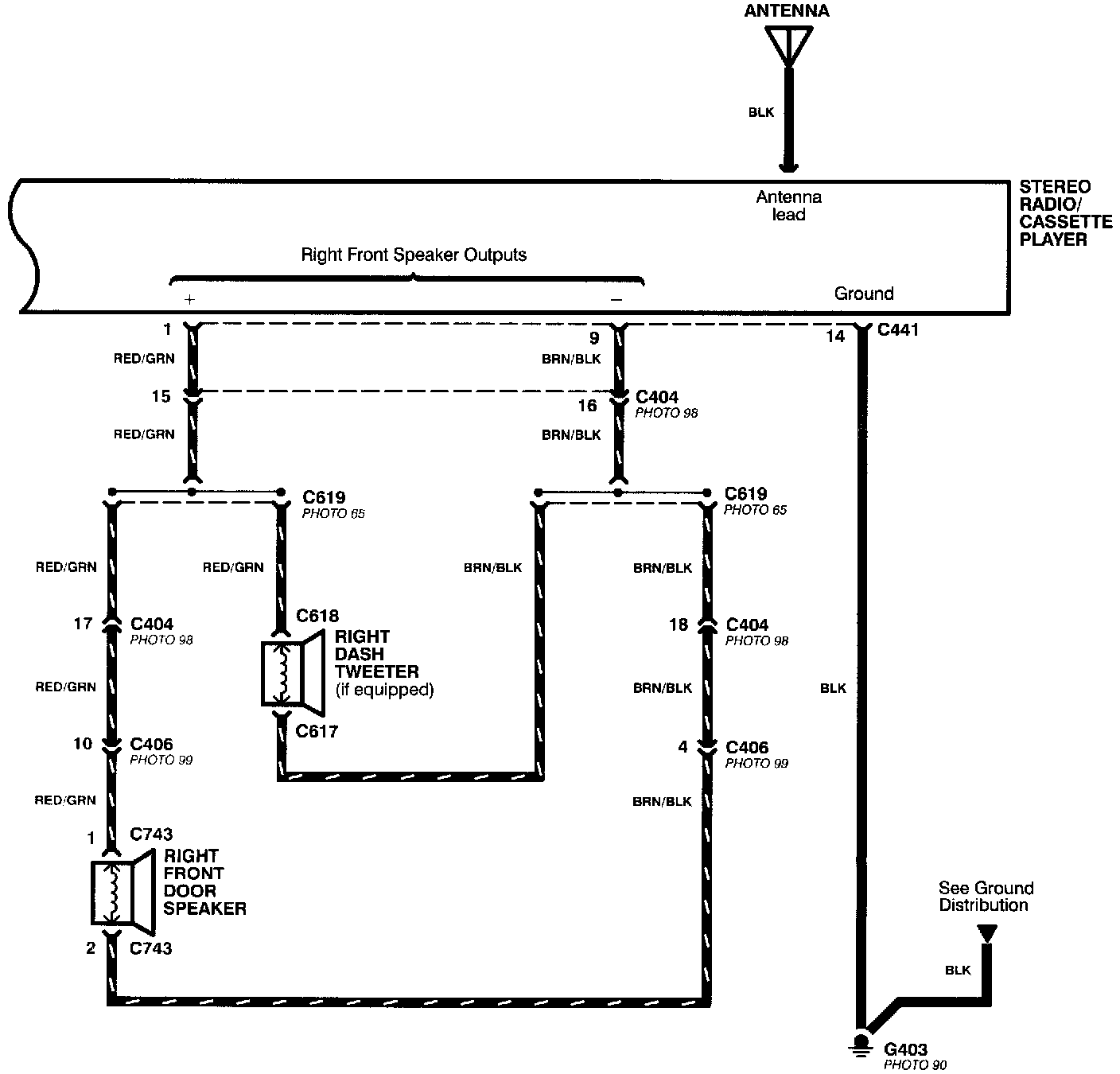

Stereo Sound System- S, Si, SR (Part 2 Of 2):
