Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Prelude L4-2.3L DOHC (16 Valve)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G551
G551

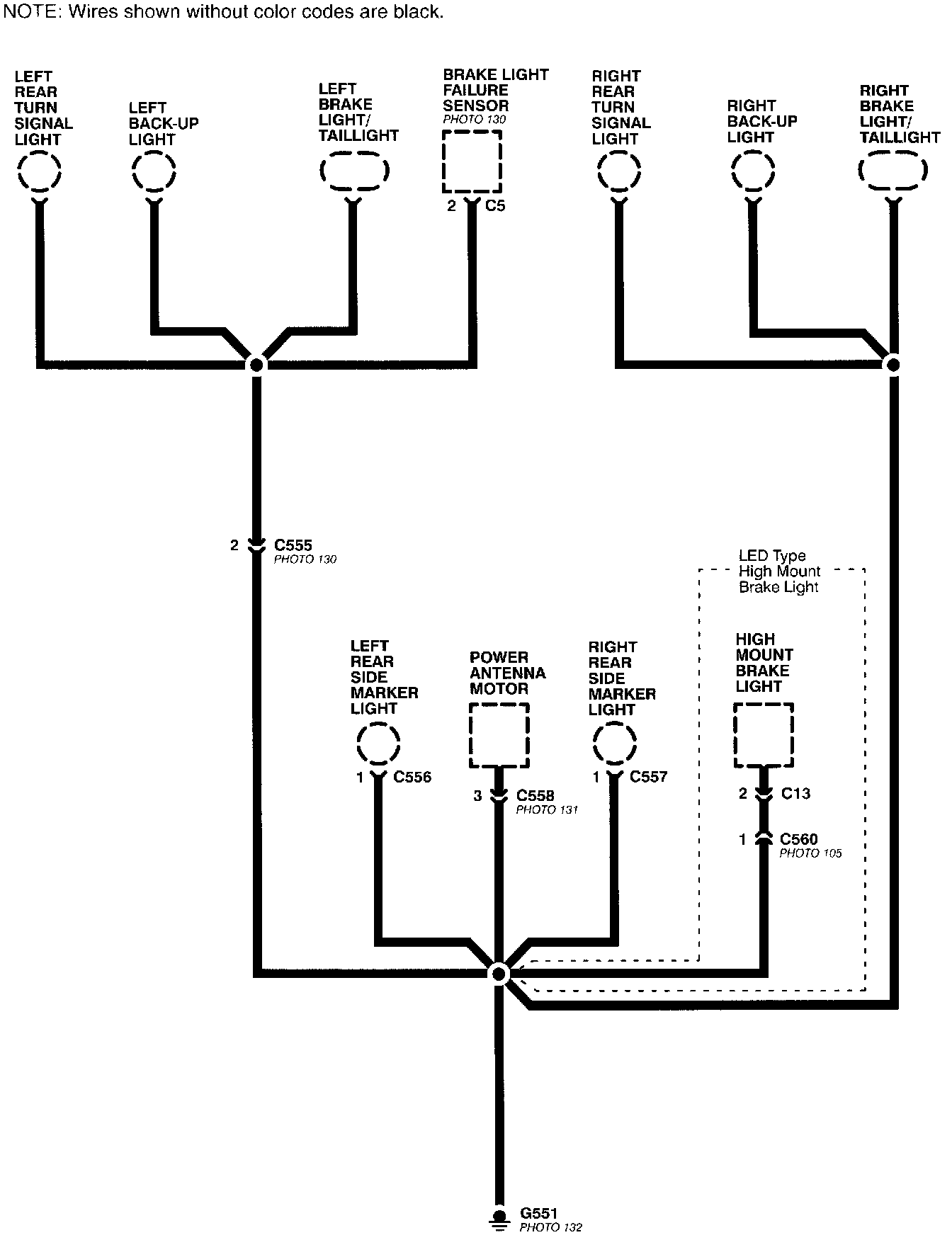

Ground Distribution- G551:
