Prelude L4-2.3L DOHC (16 Valve)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G552
G552

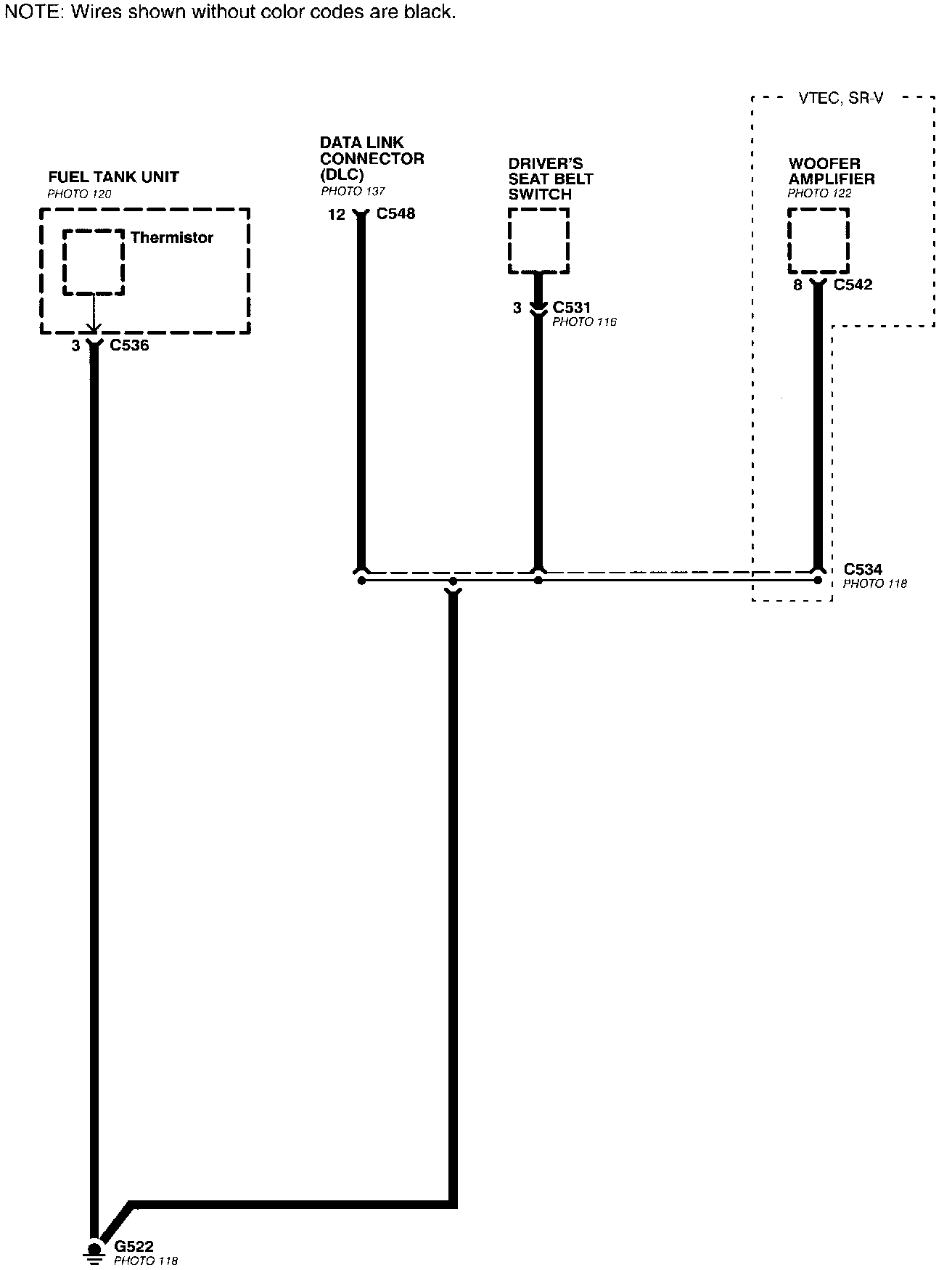

Ground Distribution- G522:
