Home >> Honda >> 1996 >> Prelude L4-2.3L DOHC (16 Valve) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> 4 Wheel Steering Control System >> 4WS Indicator Light Circuit

4WS Indicator Light Circuit

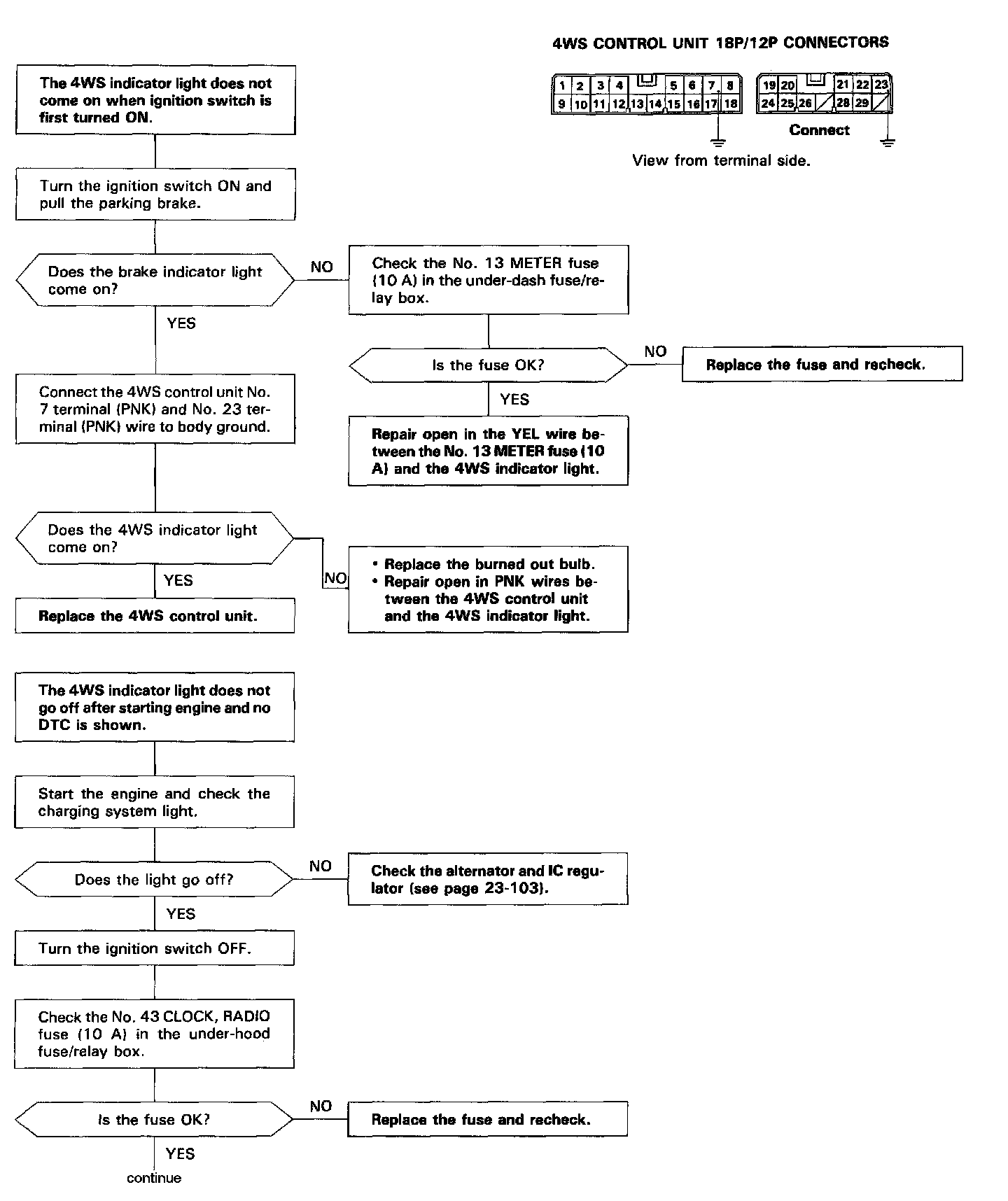

Inspection Procedure - Part 1:

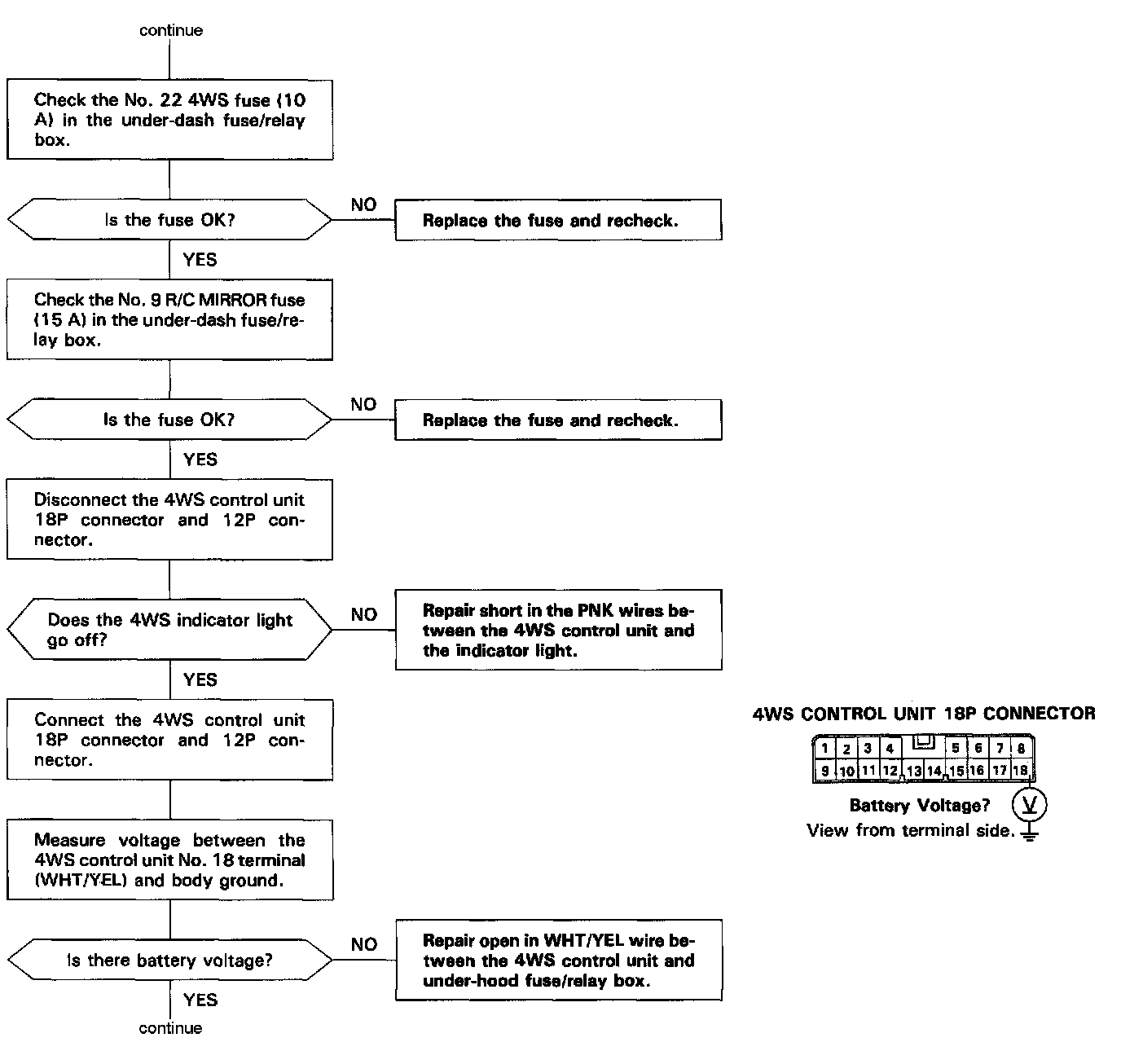

Part 2:




Part 3:
