Brake Master Cylinder: Testing and Inspection

Master Cylinder Inspection

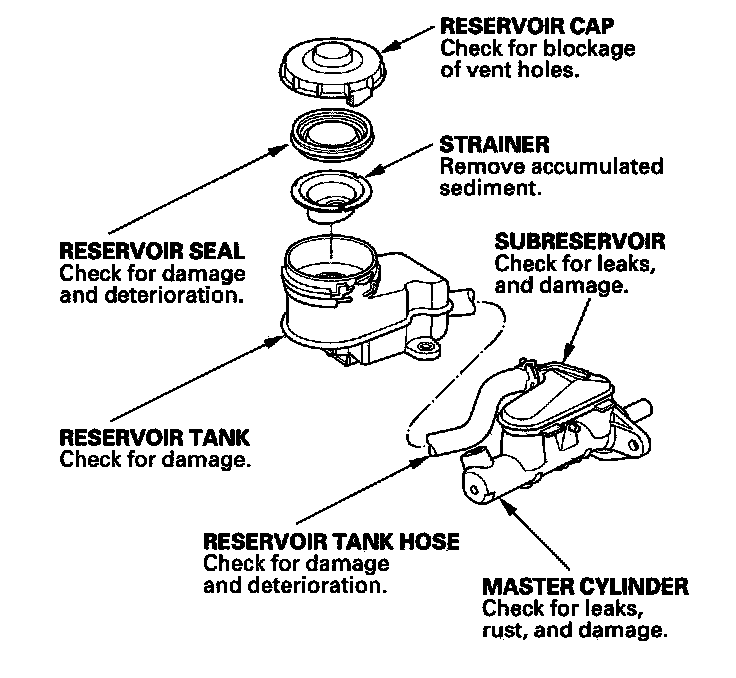

1. Inspect and note these items:
^ Before reassembling, check that all parts are free of dirt and other foreign particles.
^ Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
^ Do not allow dirt or foreign matter to contaminate the brake fluid.

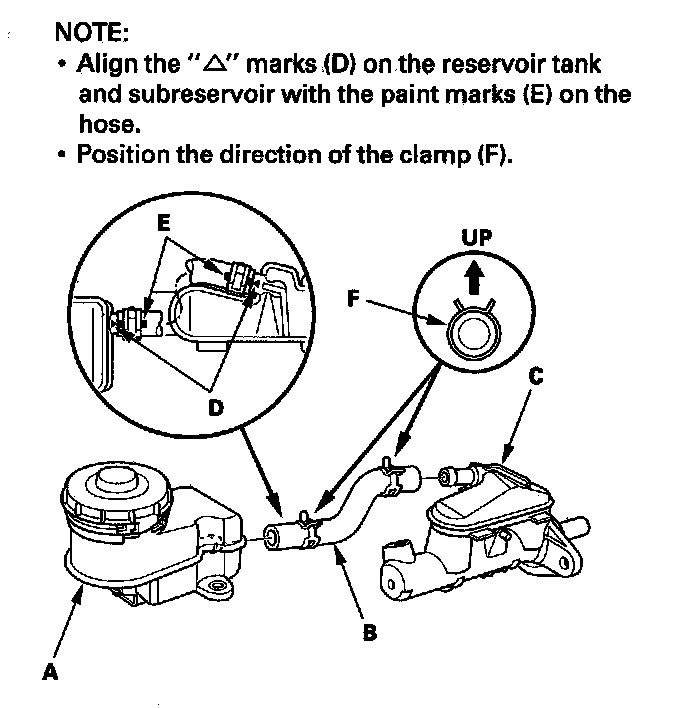

2. If the reservoir tank hose was disconnected, install the reservoir tank (A) and the reservoir tank hose (B) to the sub-reservoir (C).
