Lower Torque Rod Replacement

Lower Torque Rod Replacement

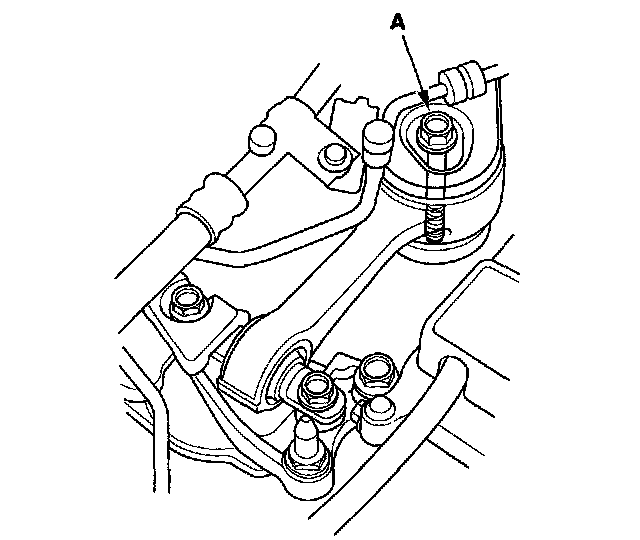

1. Loosen the upper torque rod mounting bolt (A).





2. Raise the vehicle on the lift to full height.
3. Remove the lower torque rod.

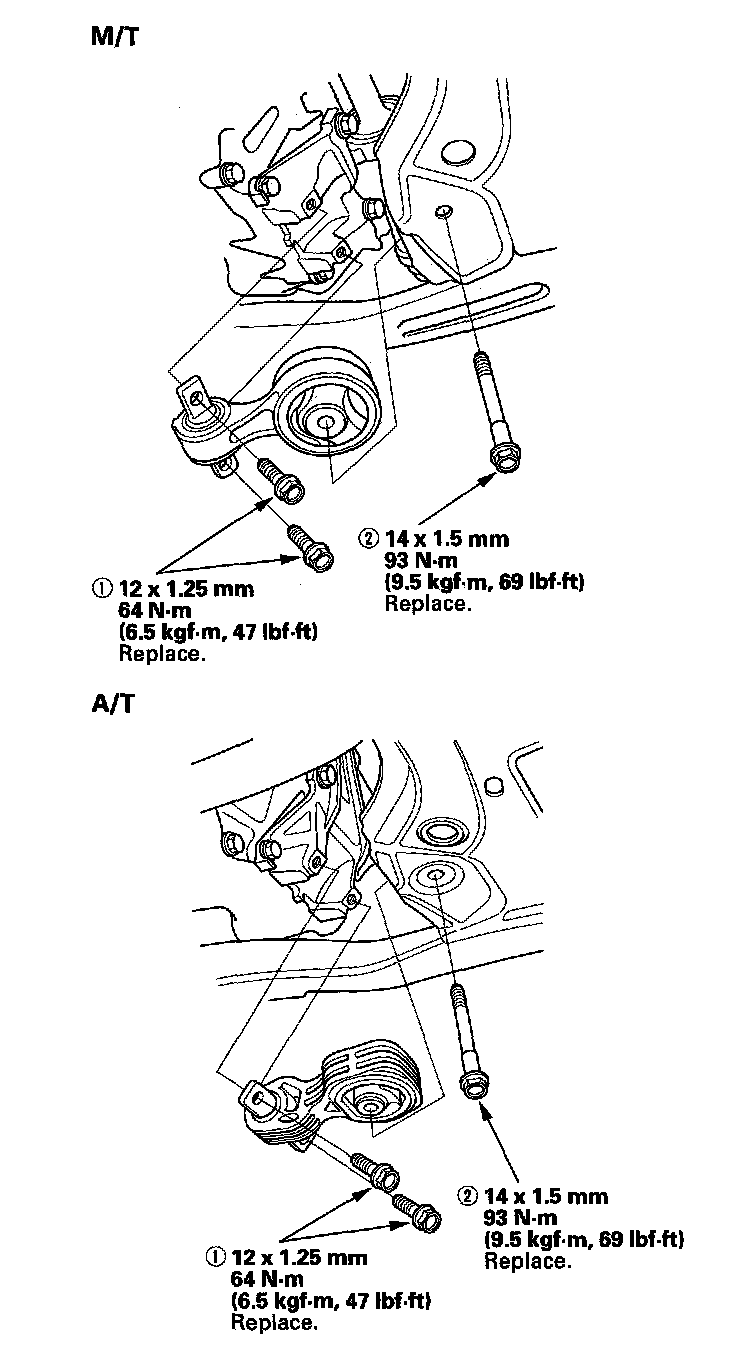

4. Install the lower torque rod, then tighten the new lower torque rod mounting bolts in the numbered sequence shown.
5. Lower the vehicle on the lift.
6. Tighten the upper torque rod mounting bolt.






15. Lower the vehicle on the lift.
16. Install the air cleaner assembly.

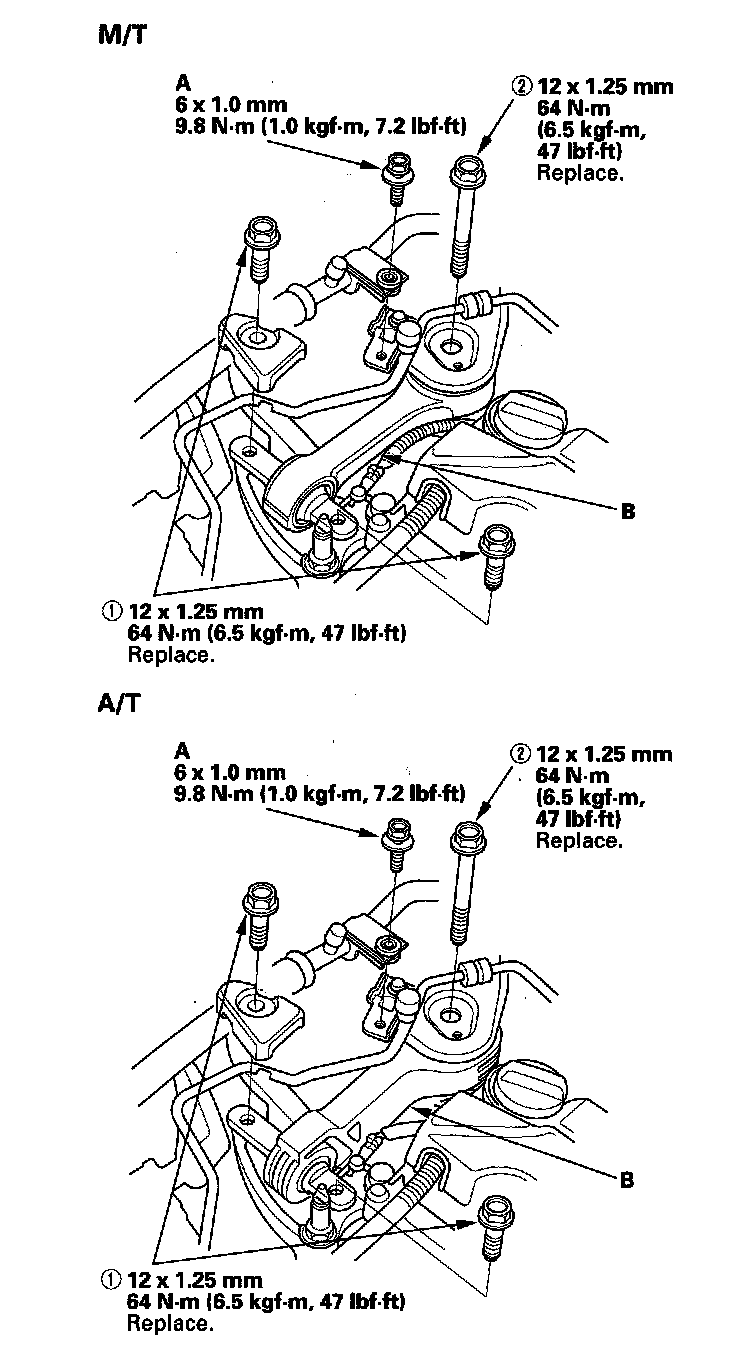

17. Install the upper torque rod (A), then tighten the new upper torque rod mounting bolts in the numbered sequence shown.





18. Install the bolt (B) securing the A/C line.

Upper Torque Rod Replacement

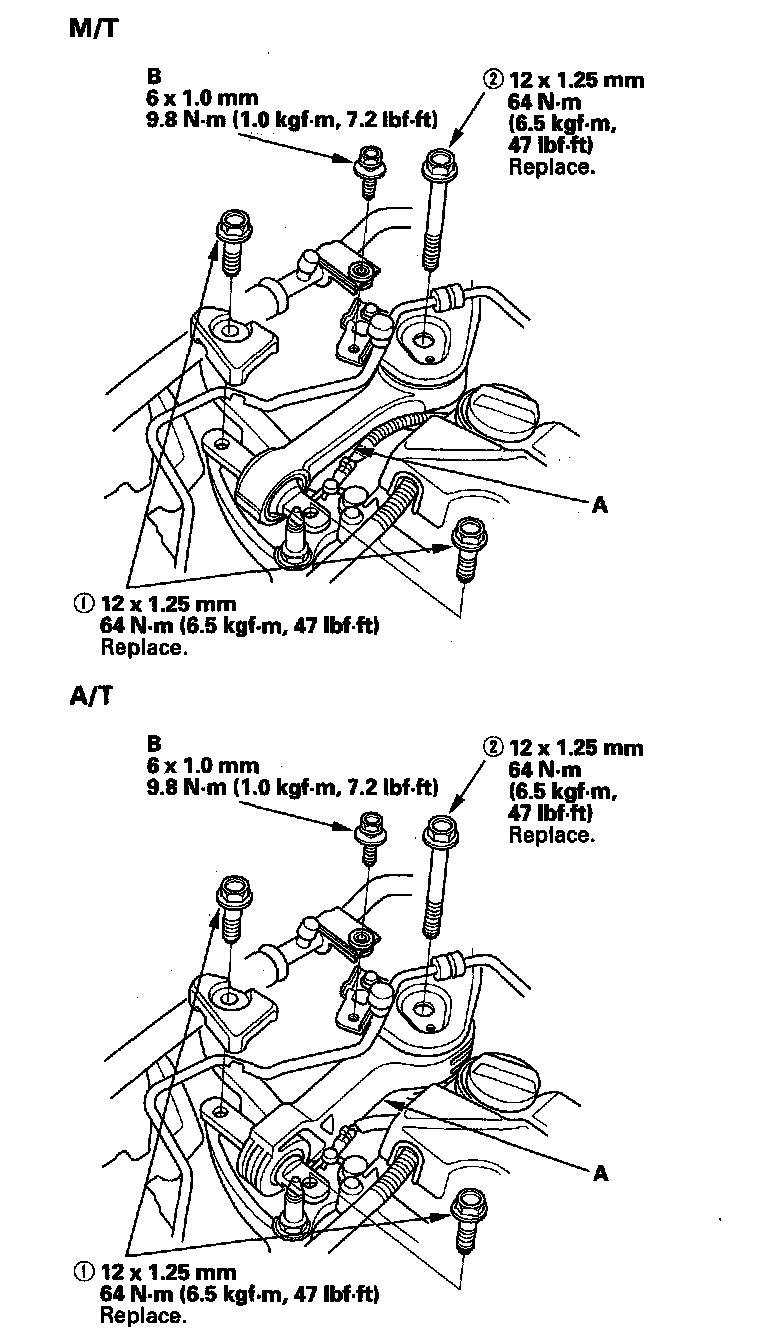

1. Remove the bolt (A) securing the A/C line, then remove the upper torque rod (B).





2. Install the upper torque rod, then tighten the new bolts in the numbered sequence shown.
