Electrical Diagrams

ABS diagrams

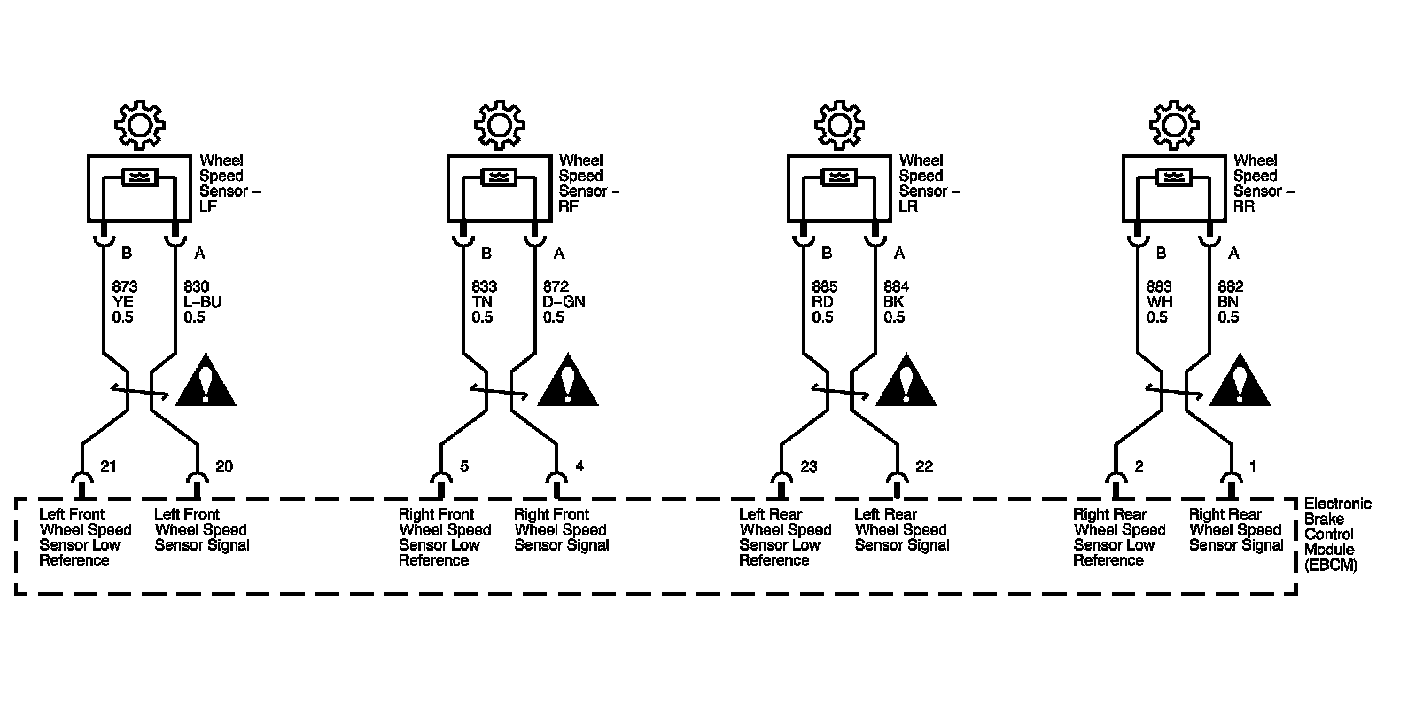

ABS diagram 1:

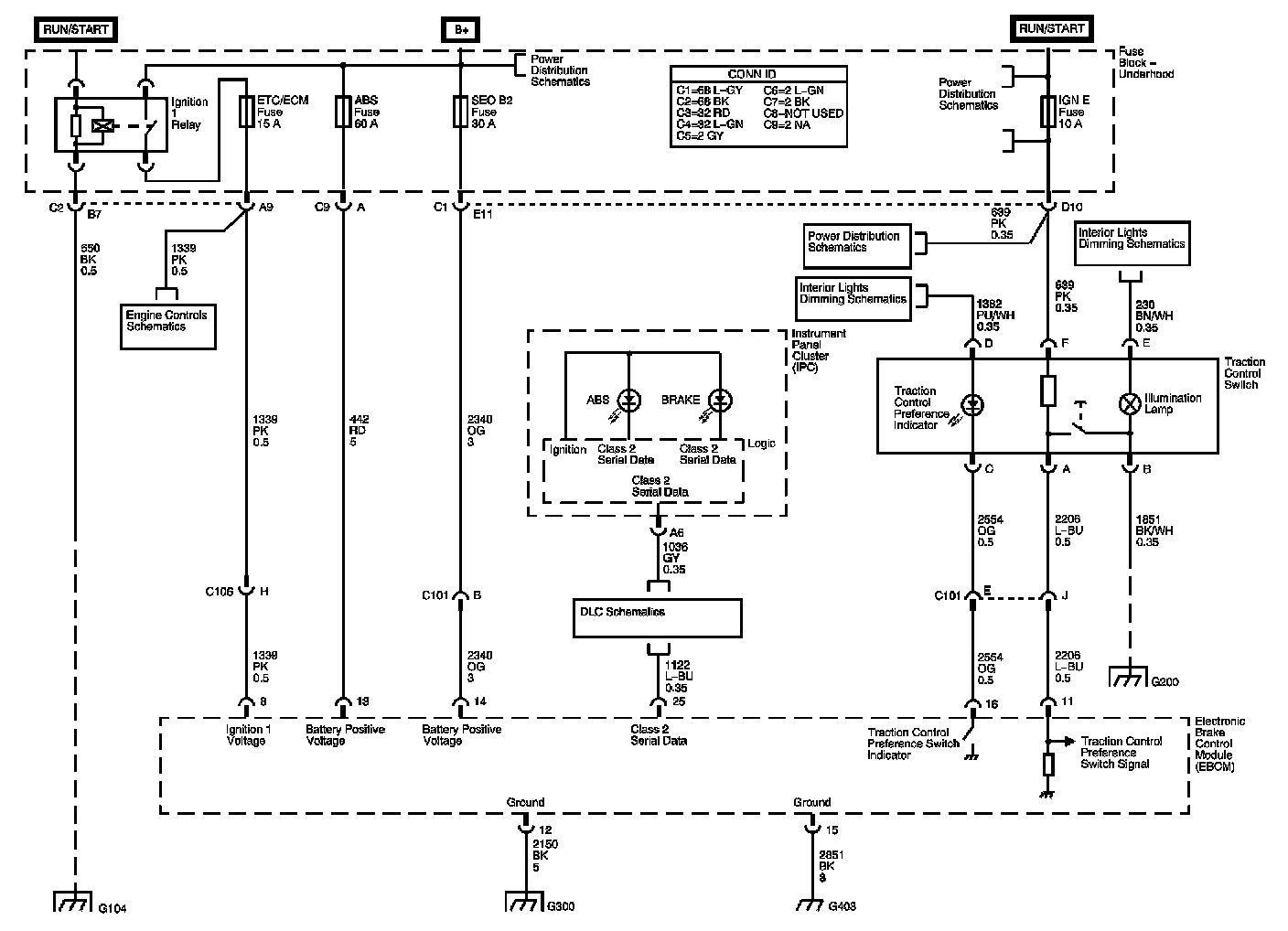

ABS diagram 2:

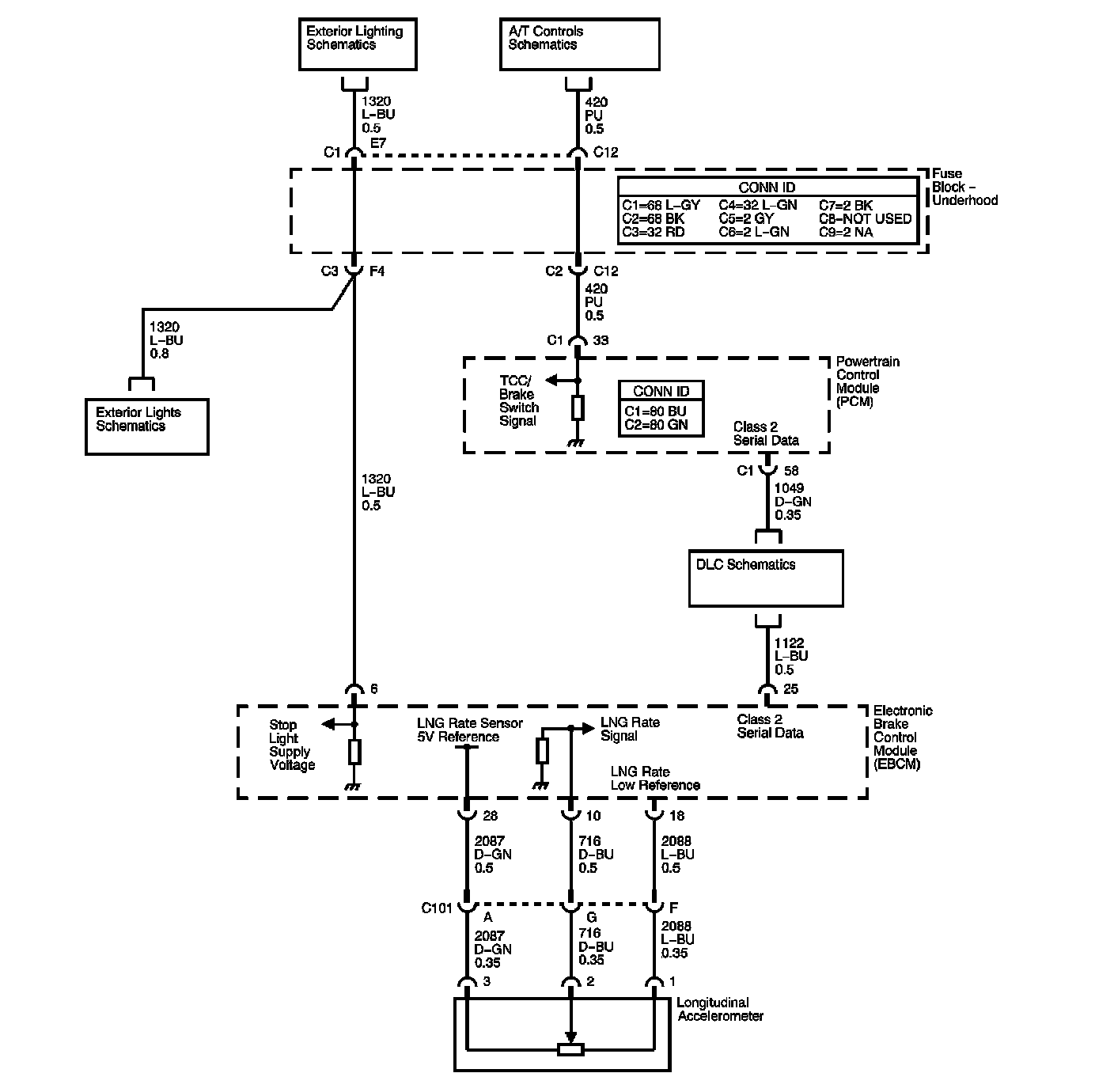

ABS diagram 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
