Drive Belt Tensioner Replacement - Air Conditioning

Drive Belt Tensioner Replacement - Air Conditioning

Removal Procedure





1. Remove the air conditioning (A/C) drive belt.

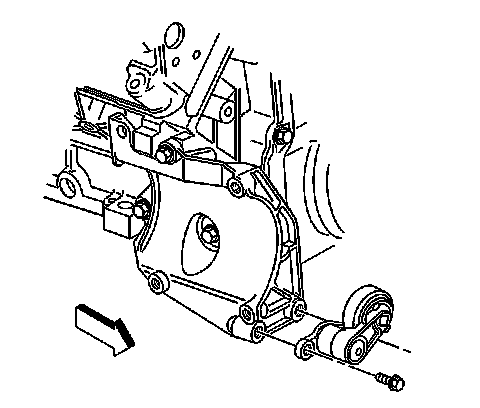

2. Remove the A/C belt tensioner bolts.
3. Remove the A/C belt tensioner.

Installation Procedure





1. Install the A/C belt tensioner.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the A/C belt tensioner bolts.
^ Tighten the A/C belt tensioner bolts to 50 Nm (37 ft. lbs.).
3. Install the A/C drive belt.
