Diesel Data: Automotive Repair
Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heating, Ventilation, and Air Conditioning >> Odor Diagnosis

Odor Diagnosis

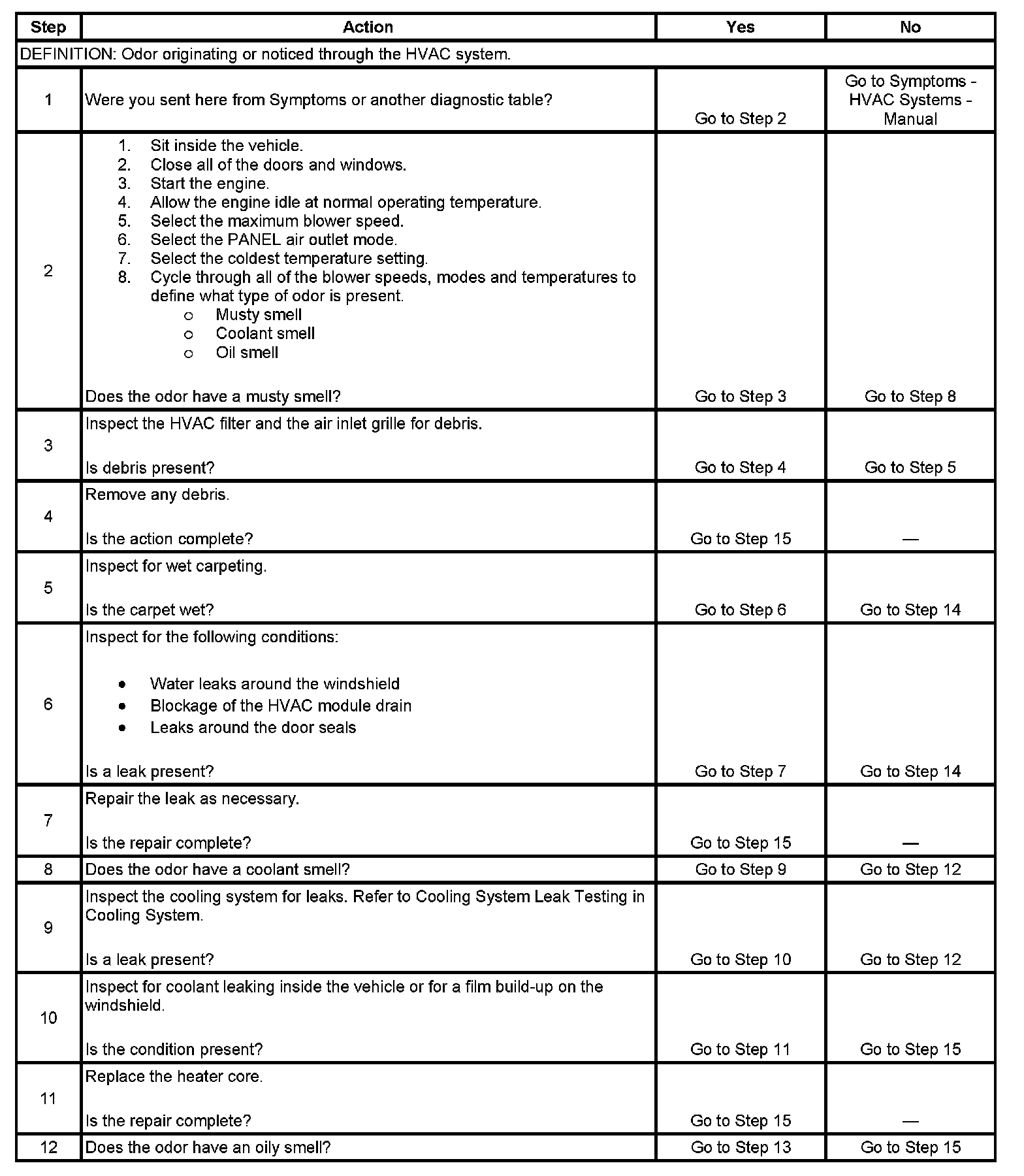

Step 1 - Step 12:

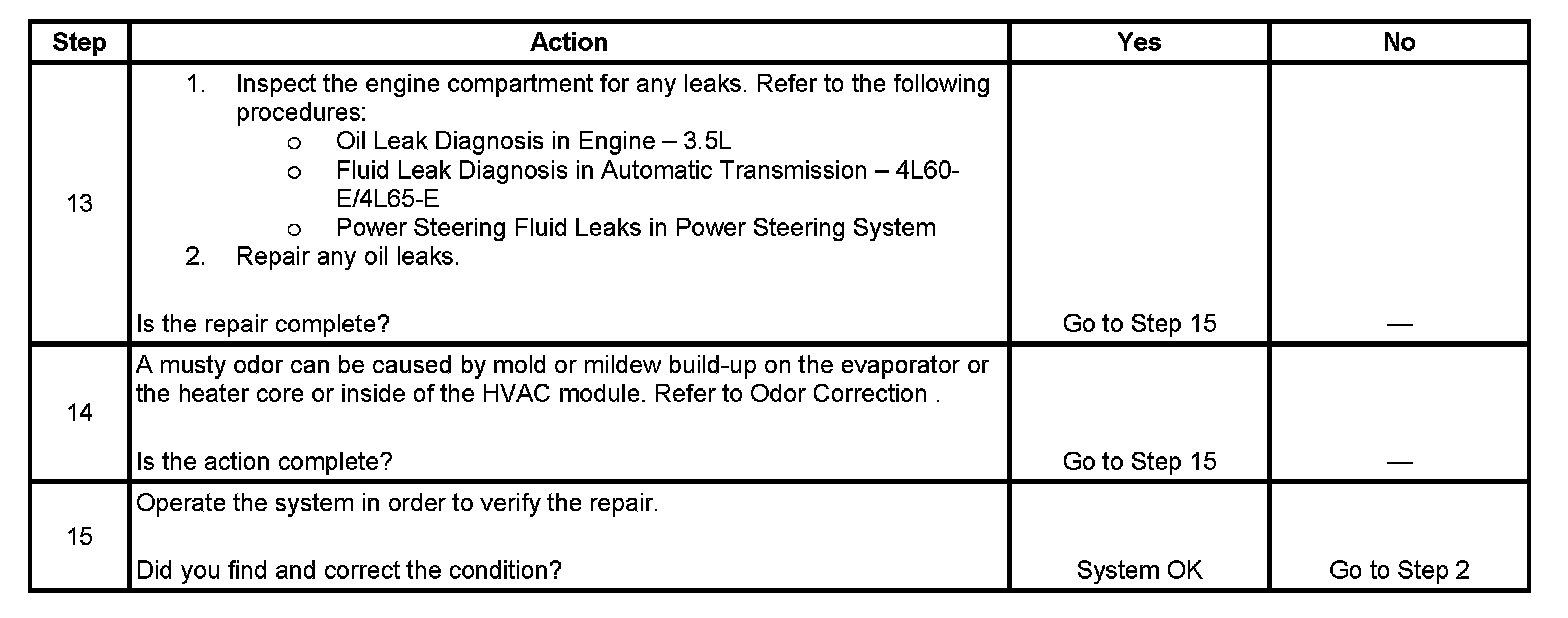

Step 13 - Step 15:
