Rear Tow Eye Replacement (SUV)

Rear Tow Eye Replacement (SUV)

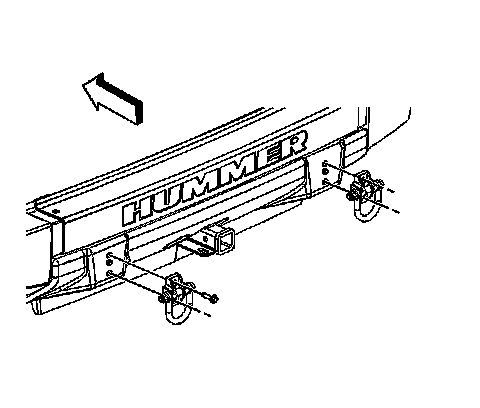

Removal Procedure





1.Remove the D-Ring mounting bolts.

2.Remove the D-Ring.

Installation Procedure





1.Install the D-Rings to the vehicle.

Notice:Refer to Fastener Notice .

2.Install the D-Ring mounting bolts.

TightenTighten the bolts to 85 N �m (63 lb ft).
