Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C Connectors (Control Harness)
C Connectors (Control Harness)

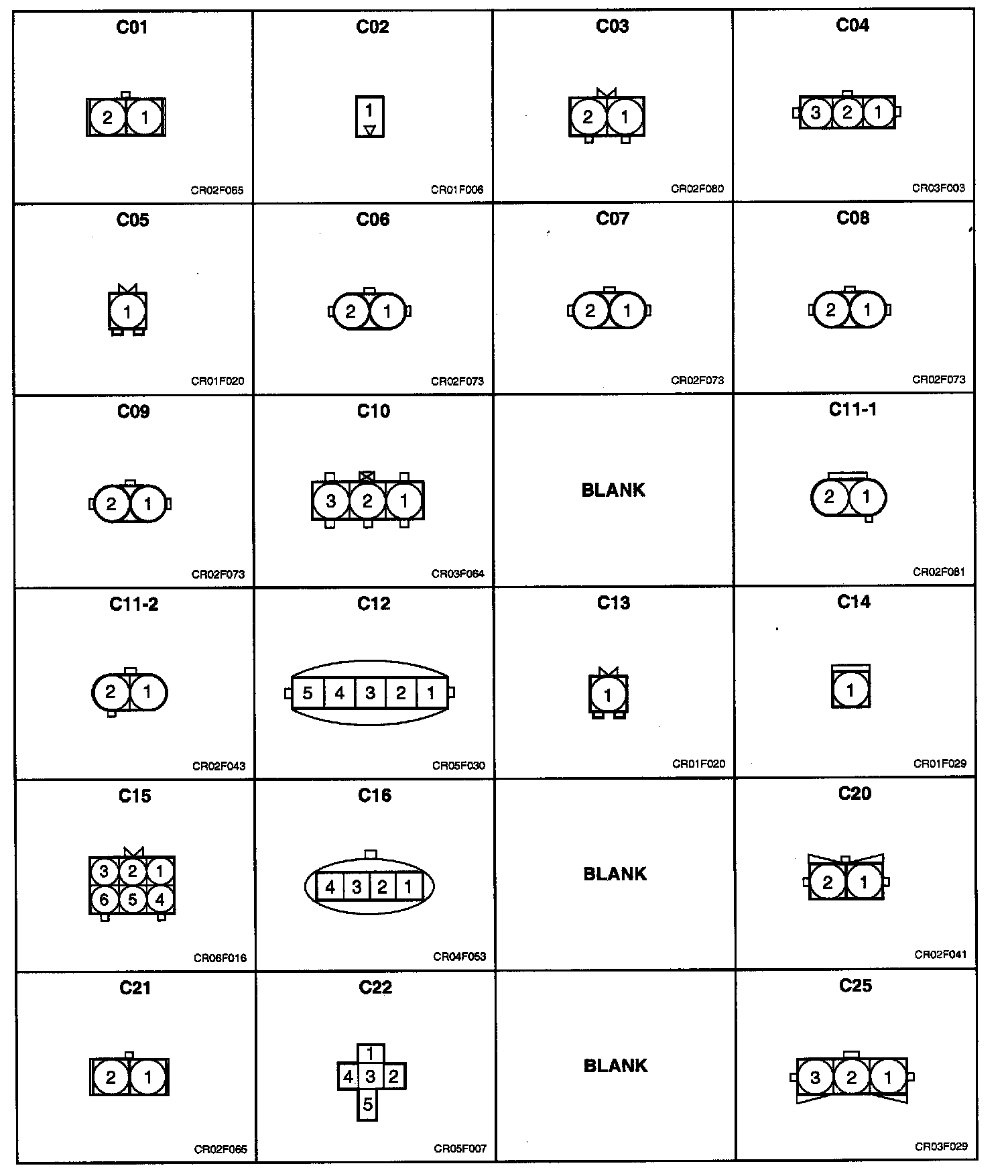

C01 - C25:

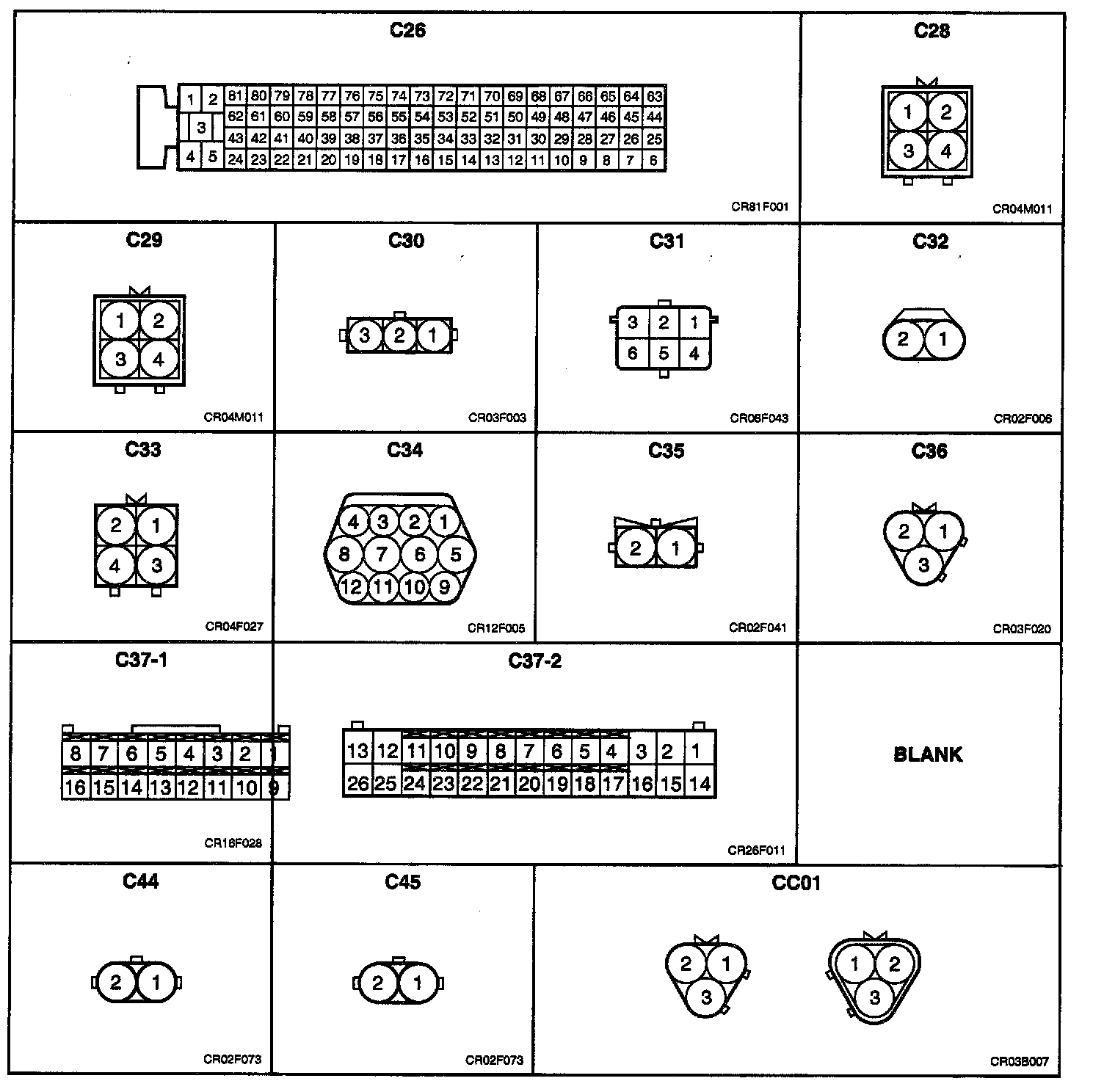

C26 - CC01:
