Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

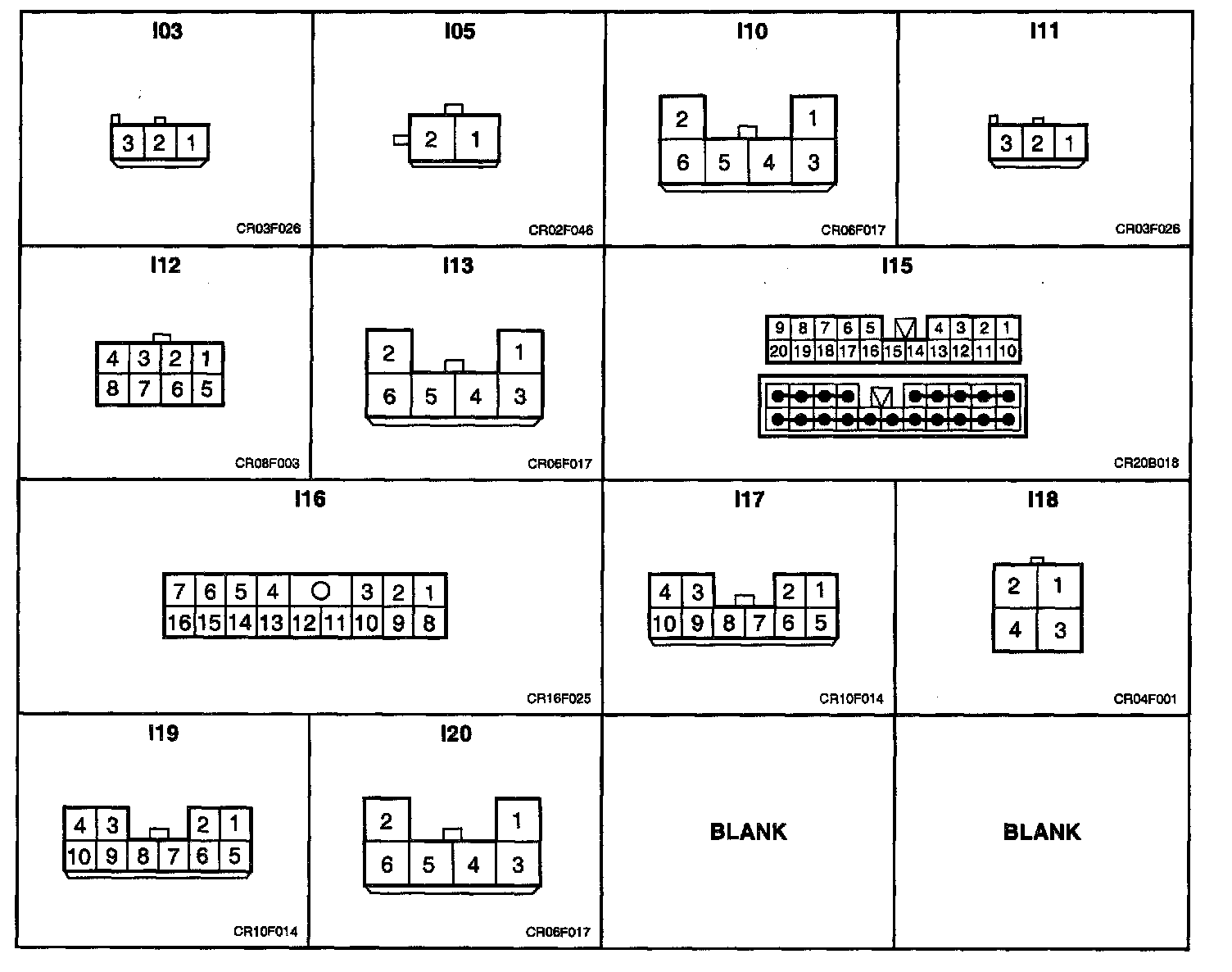

I Connectors (Instrument Harness)
I Connectors (Instrument Harness)
I01 - I20:
