Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M Connectors (Main Harness)
M Connectors (Main Harness)

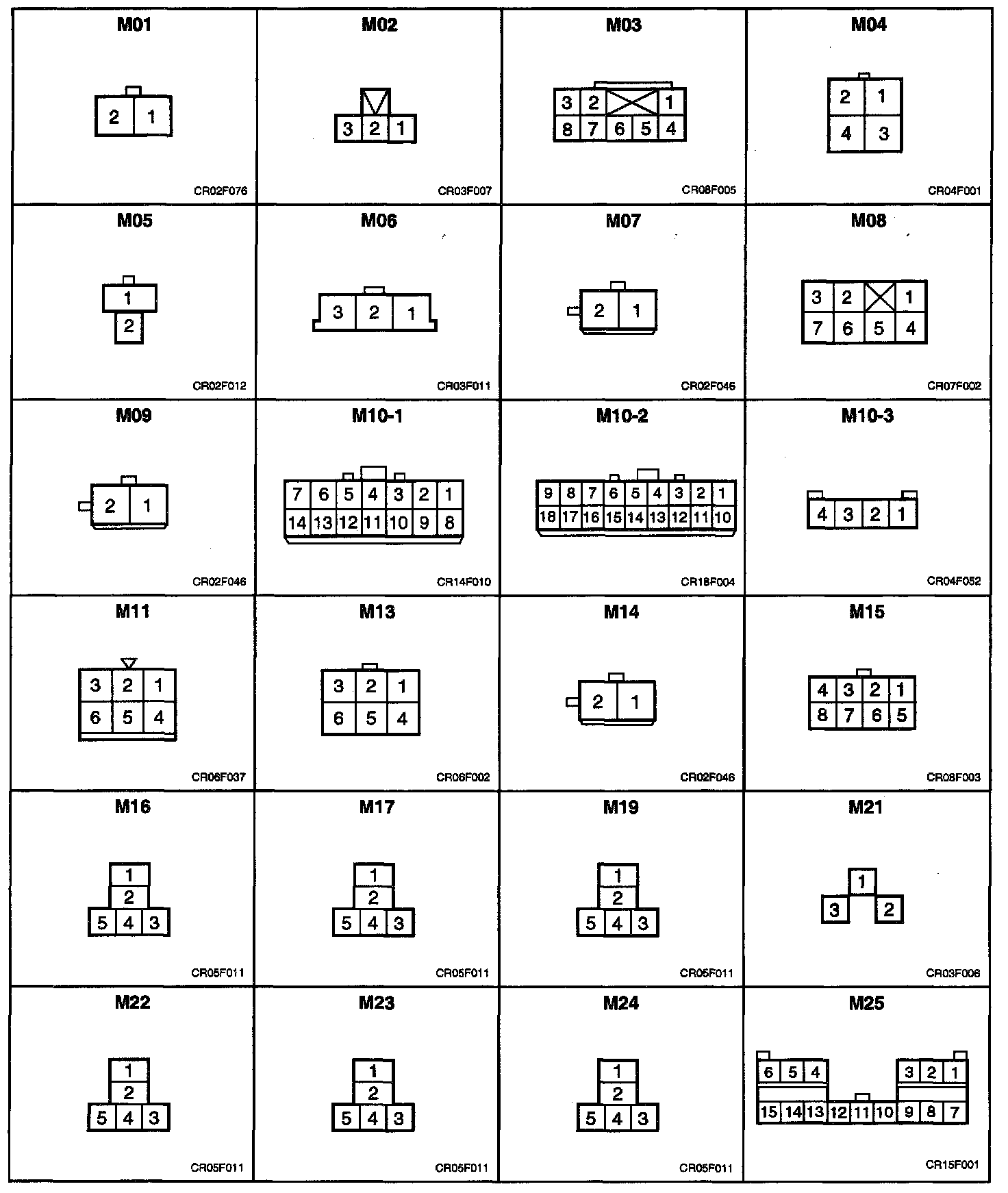

M01 - M25:

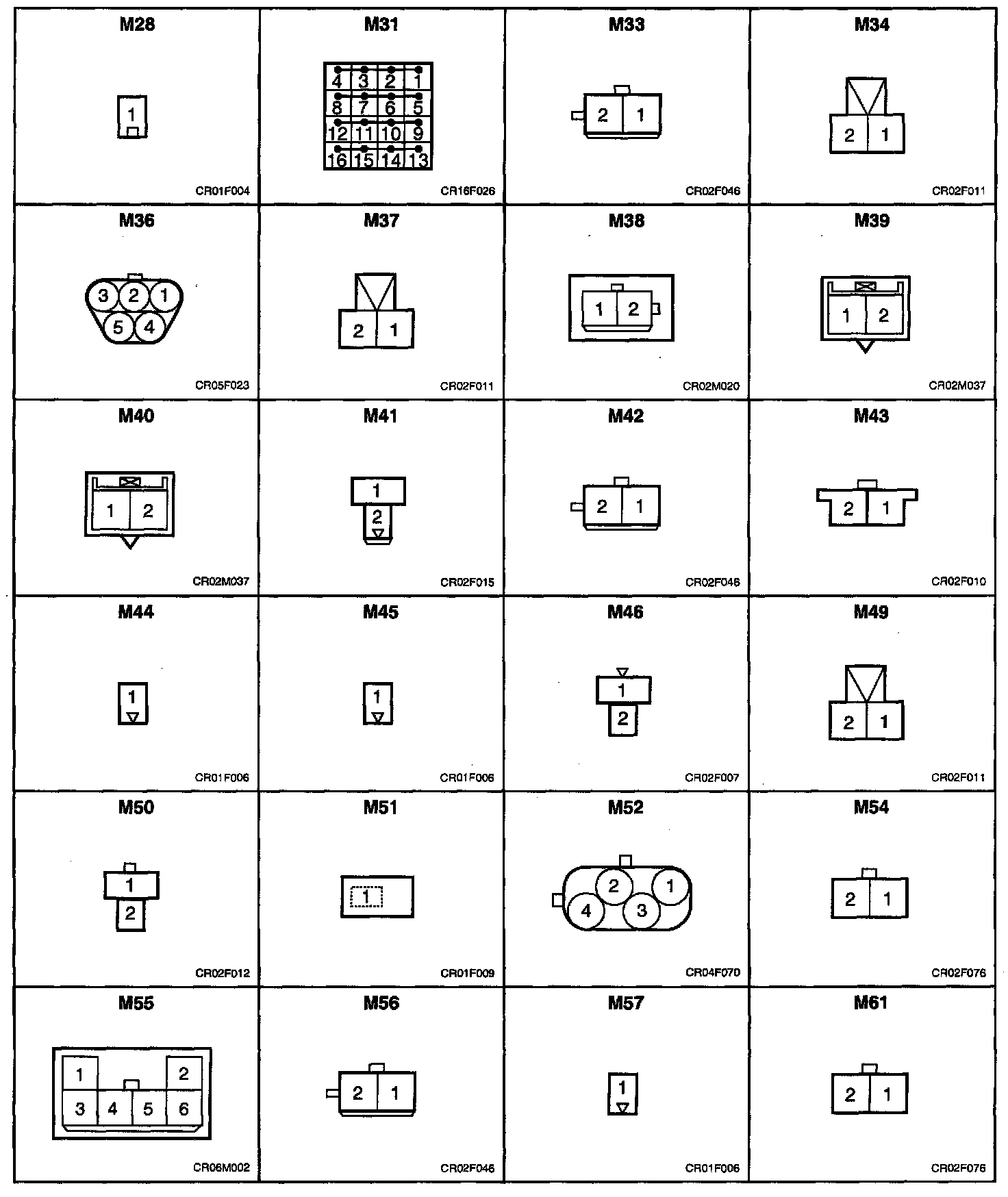

M28 - M61:

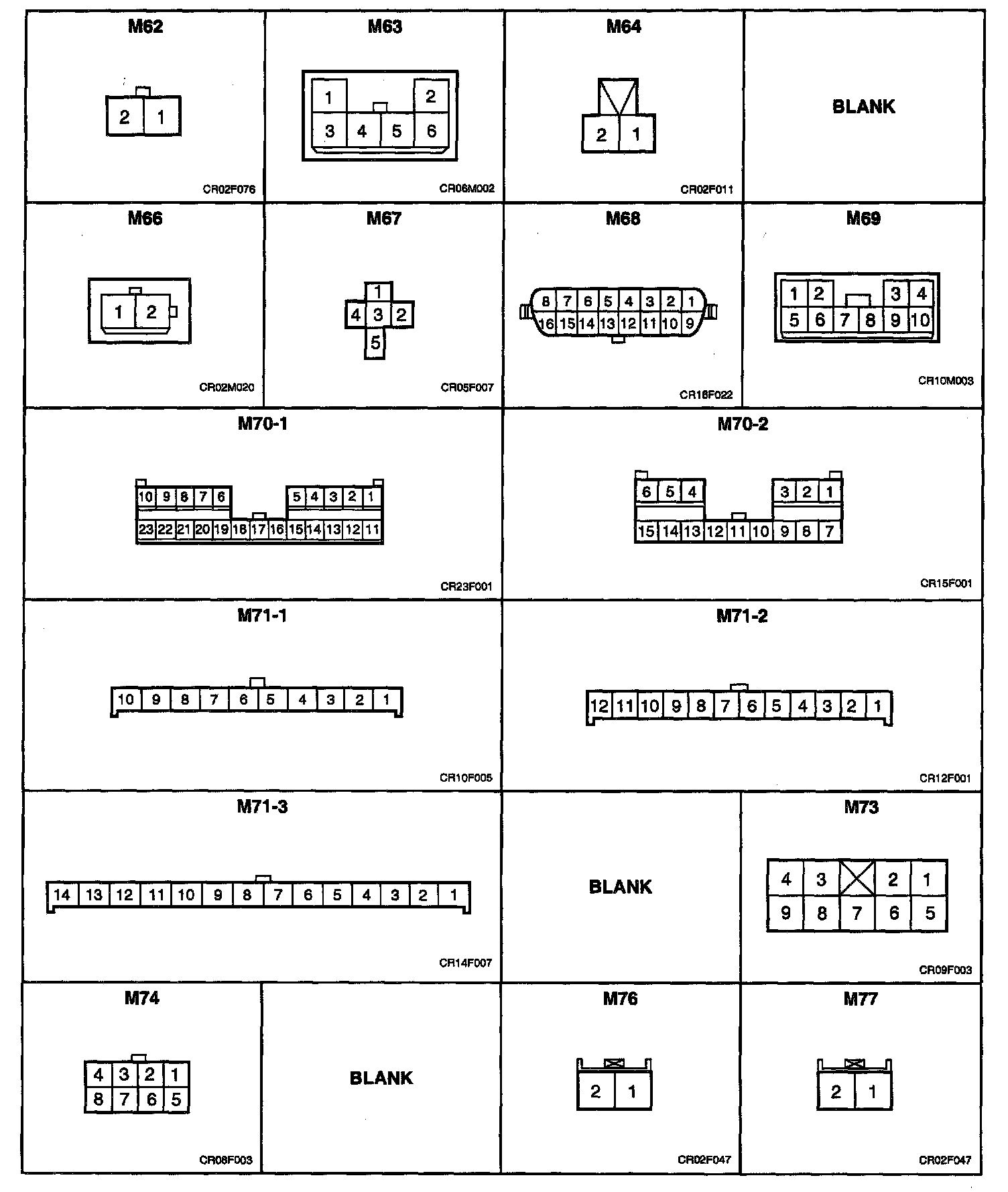

M62 - M77:
M82 - MD02:

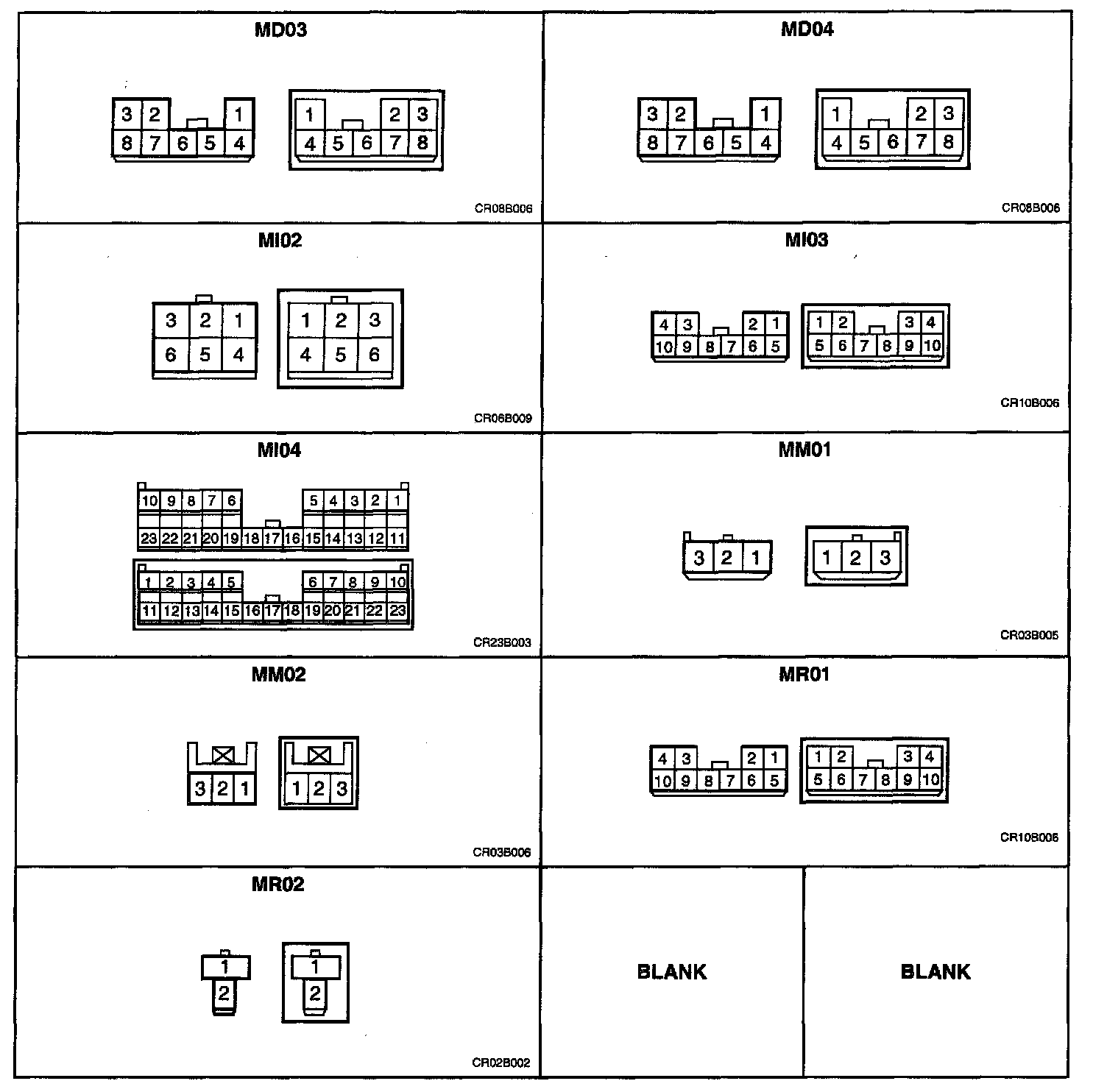

MD03 - MR02:
