Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

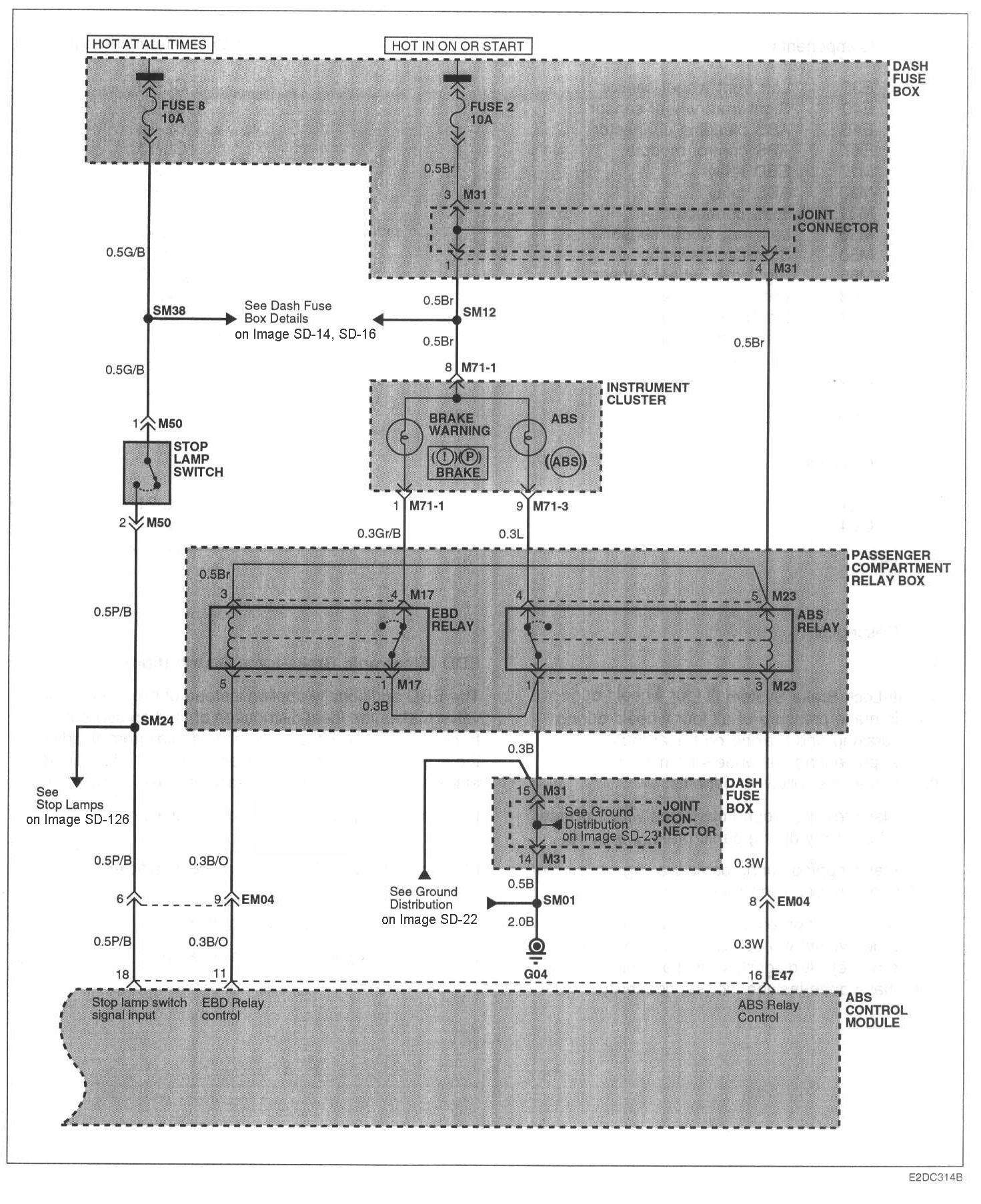

Image SD-60 Anti-Lock Brake System (ABS) (1):

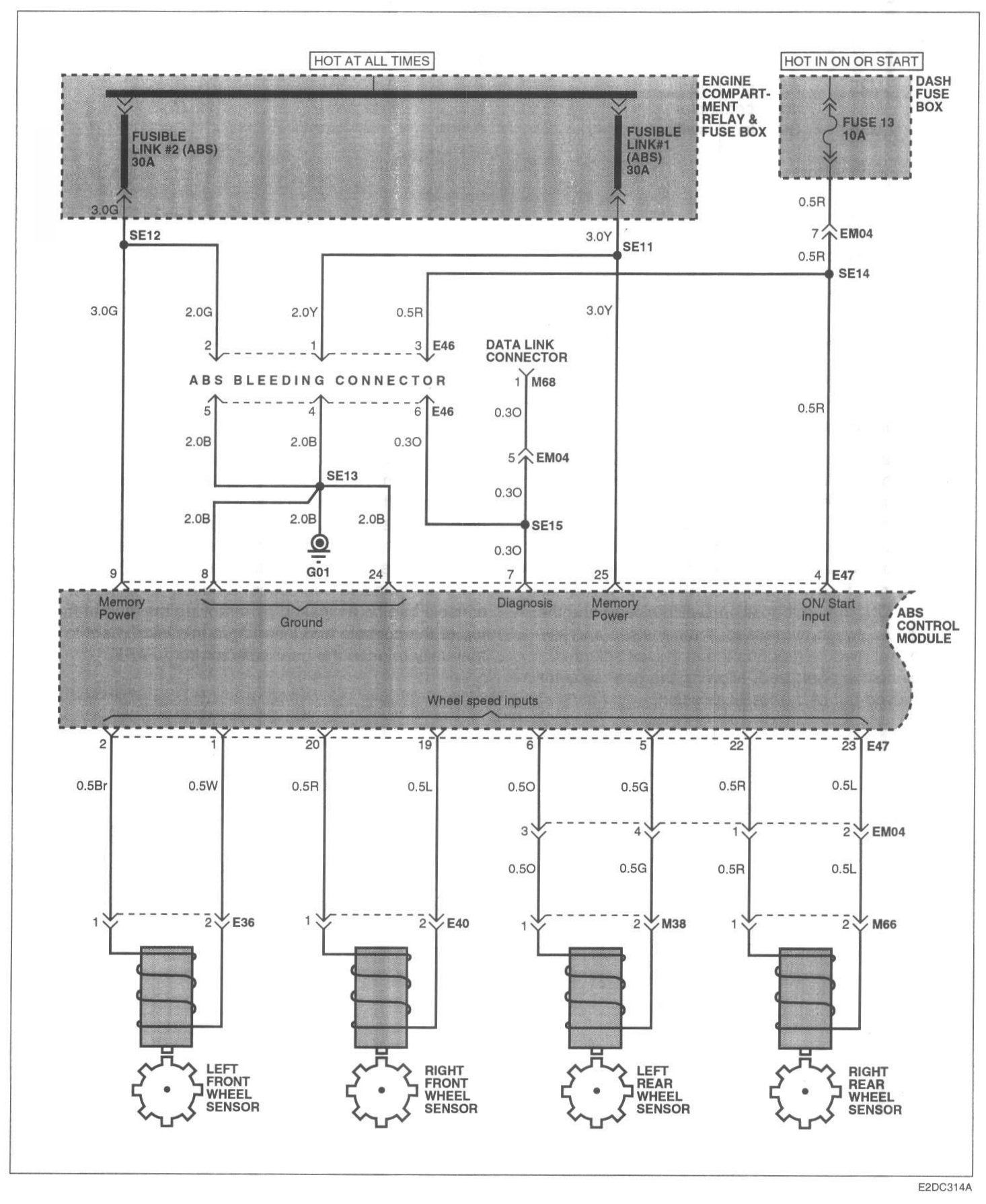

Image SD-61 Anti-Lock Brake System (ABS) (2):
