System Diagram
System Diagram

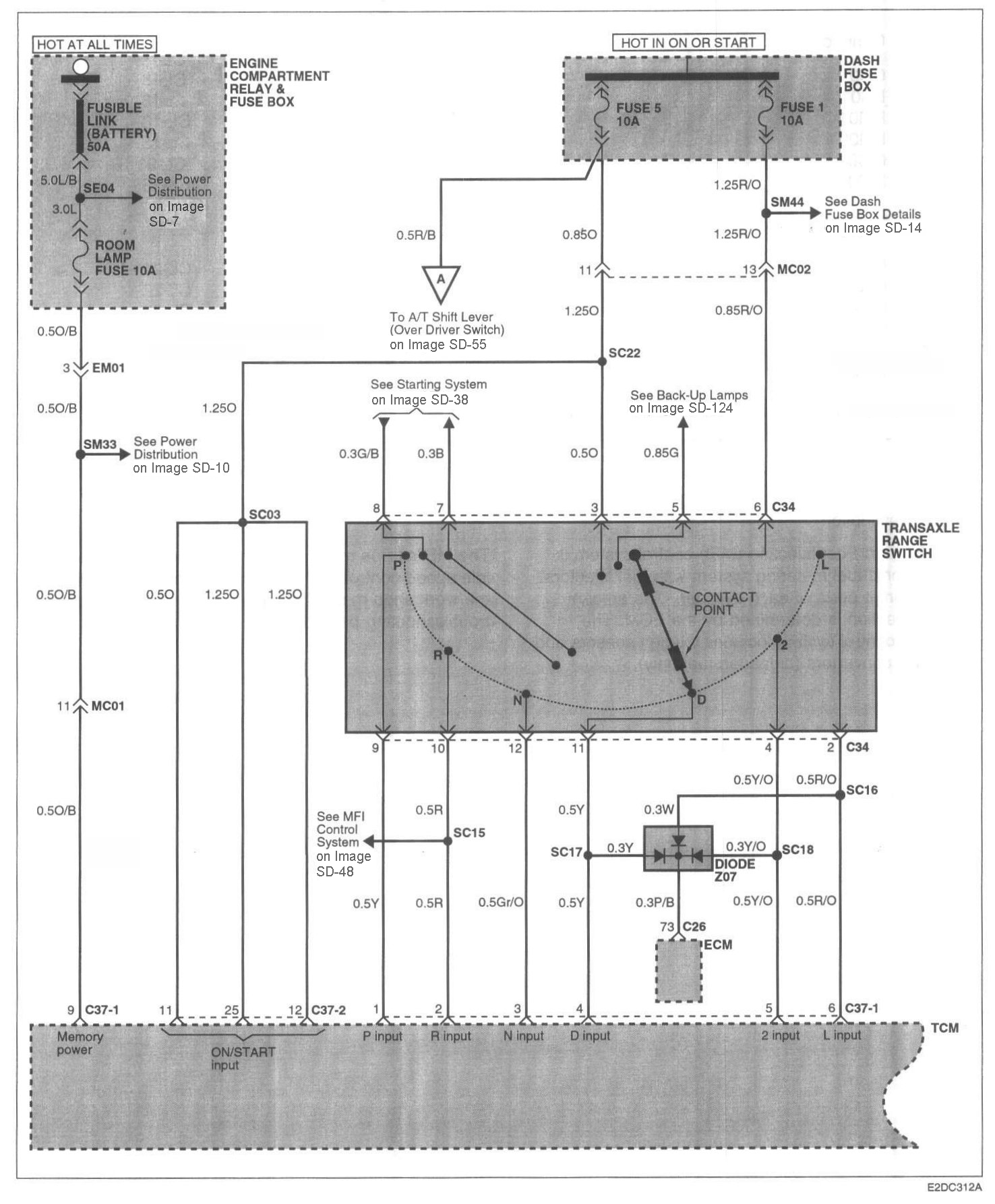

Image SD-54 Automatic Transaxle Control System (1):

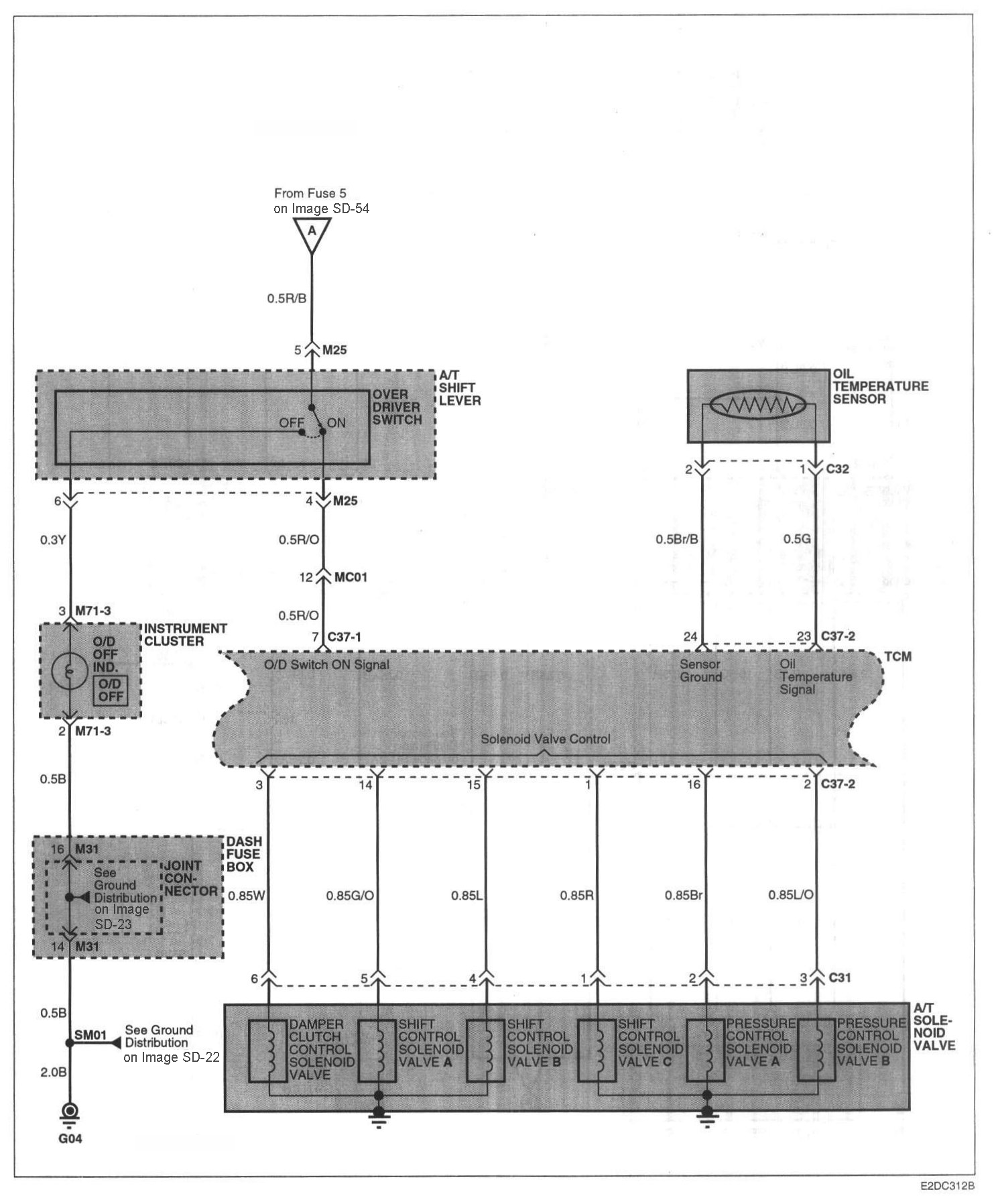

Image SD-55 Automatic Transaxle Control System (2):

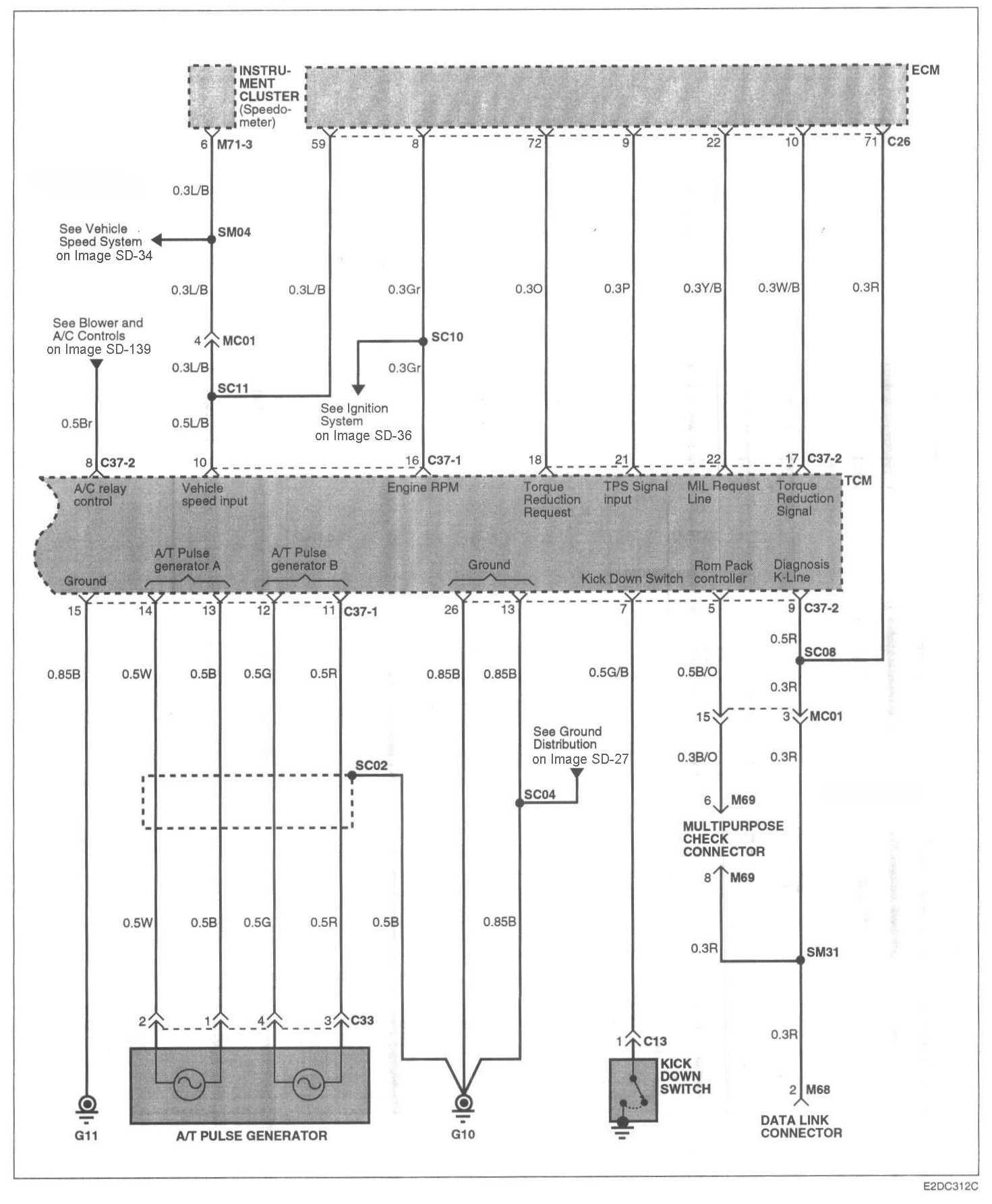

Image SD-56 Automatic Transaxle Control System (3):
