Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Lamp
Brake Lamp

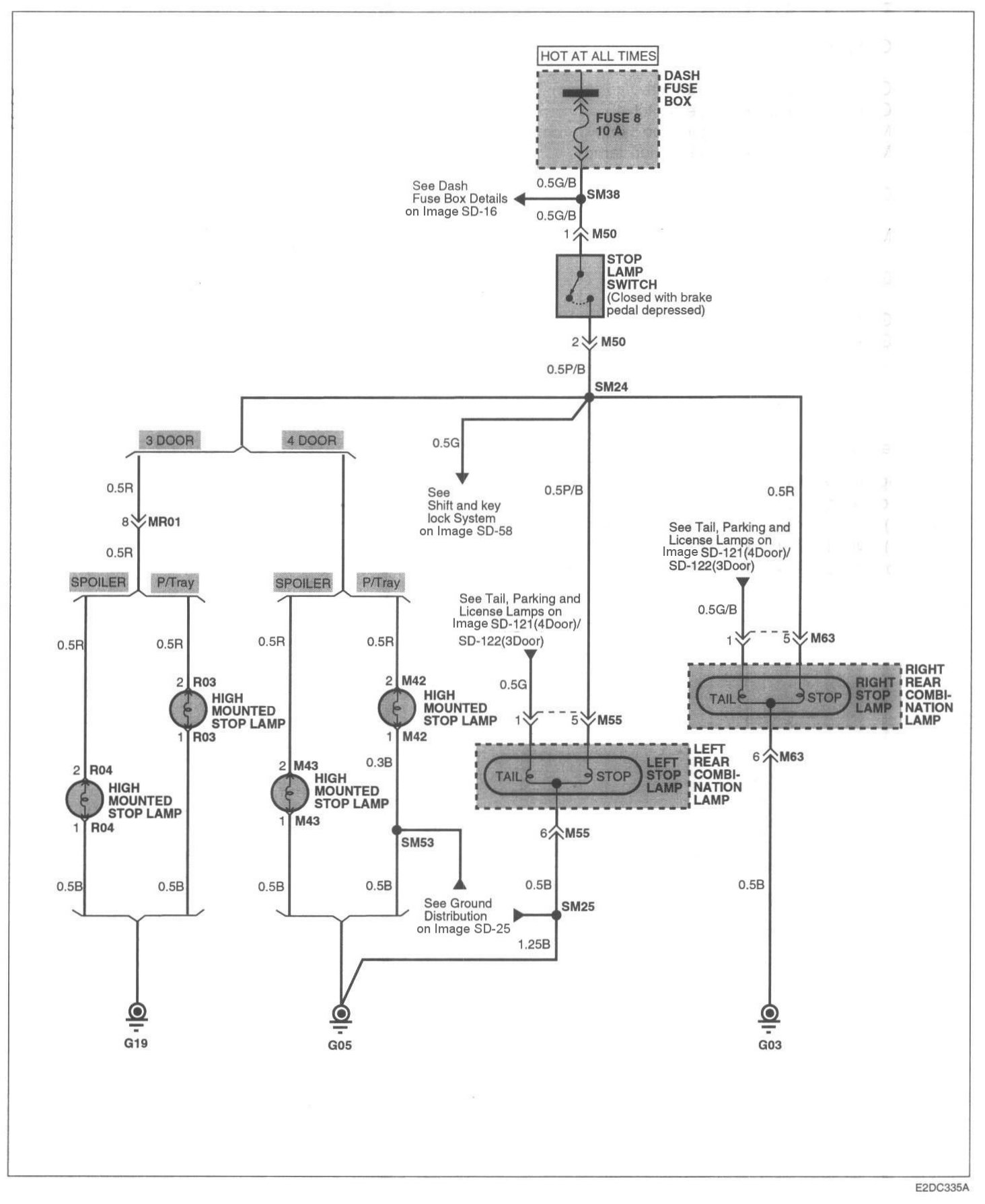

Image SD-126 Stop Lamps (1):
