Heated Glass Element
Heated Glass Element

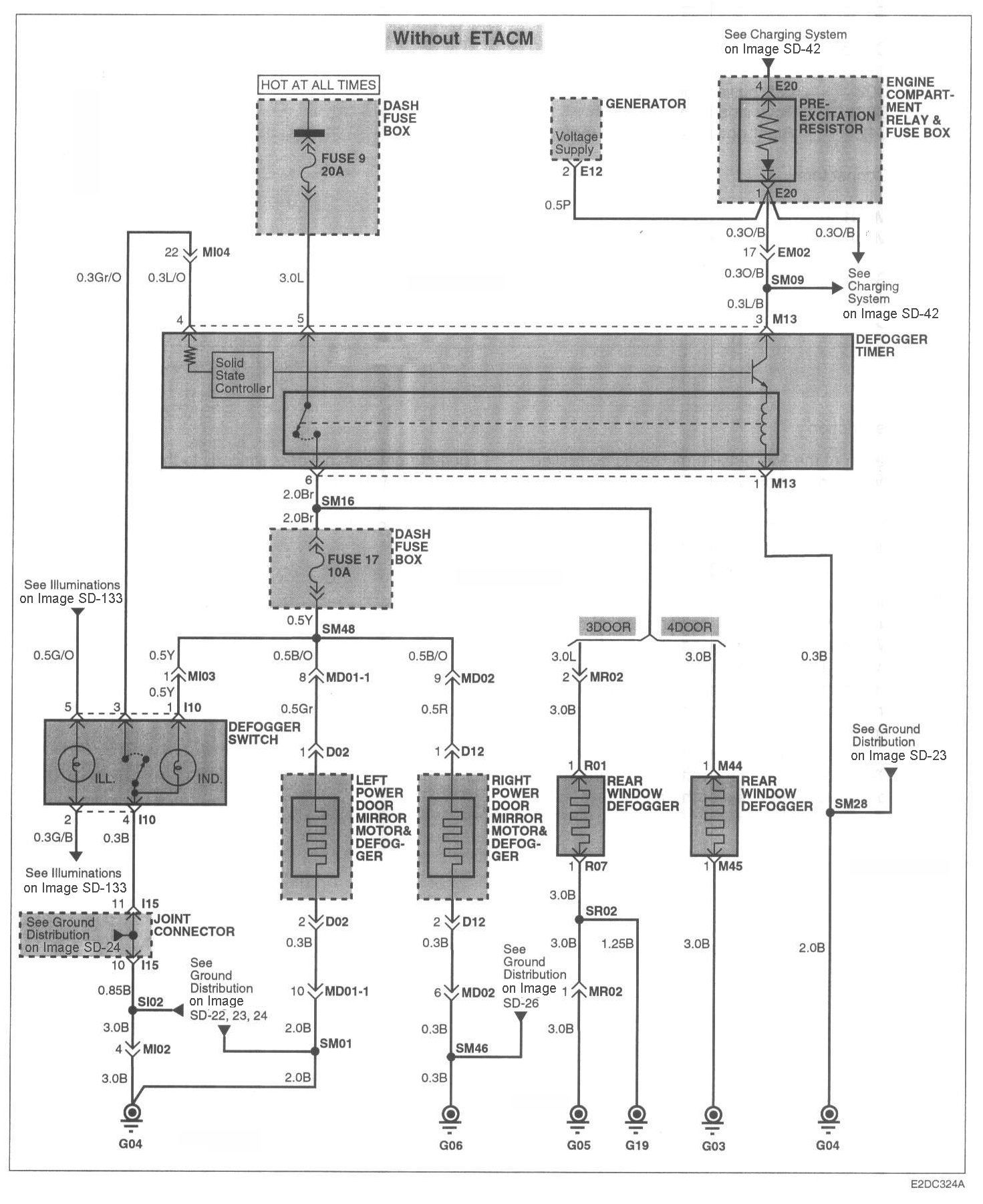

Image SD-92 Rear Window Defogger (1):

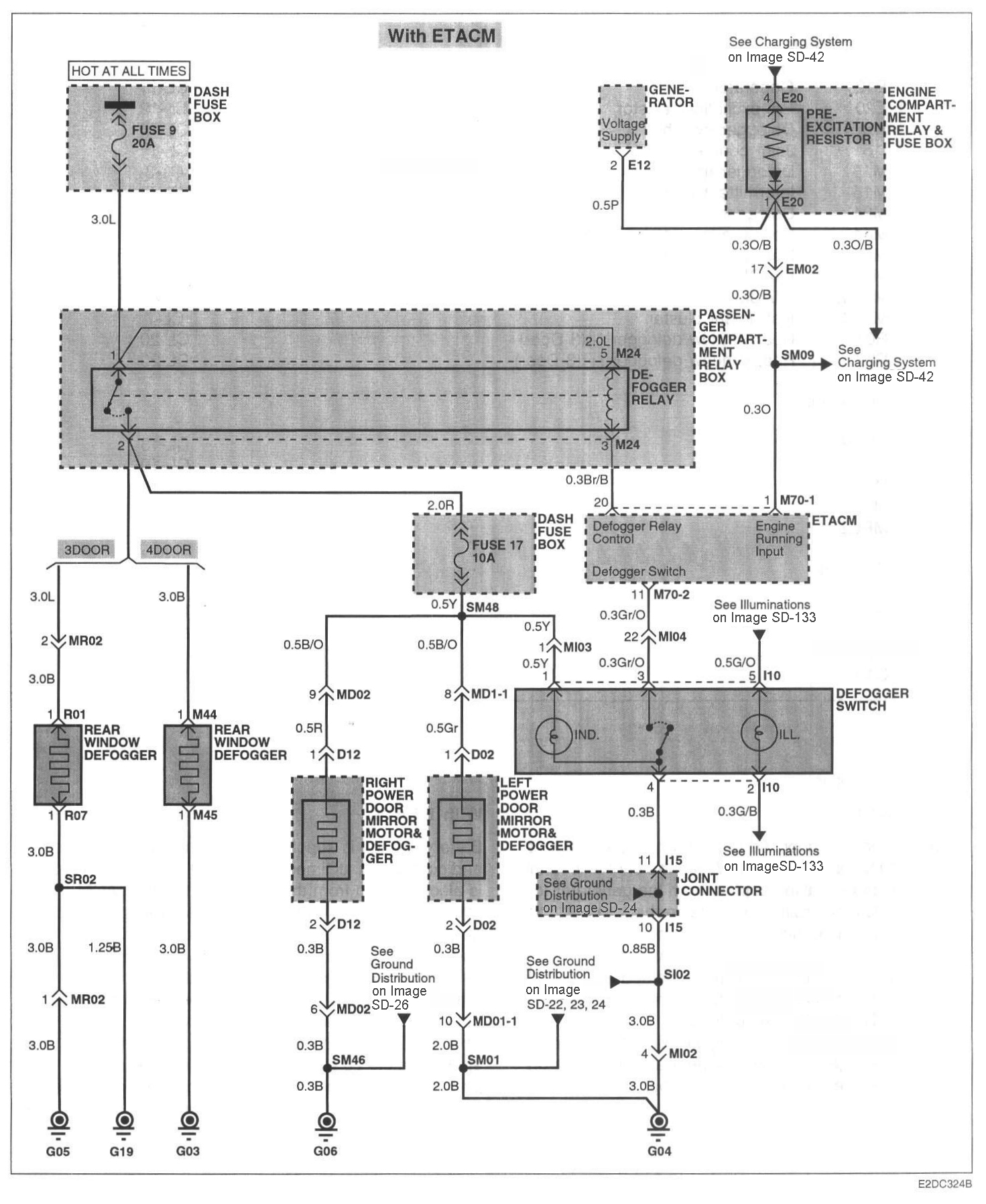

Image SD-93 Rear Window Defogger (2):
