Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Air Conditioning Switch
Air Conditioning Switch

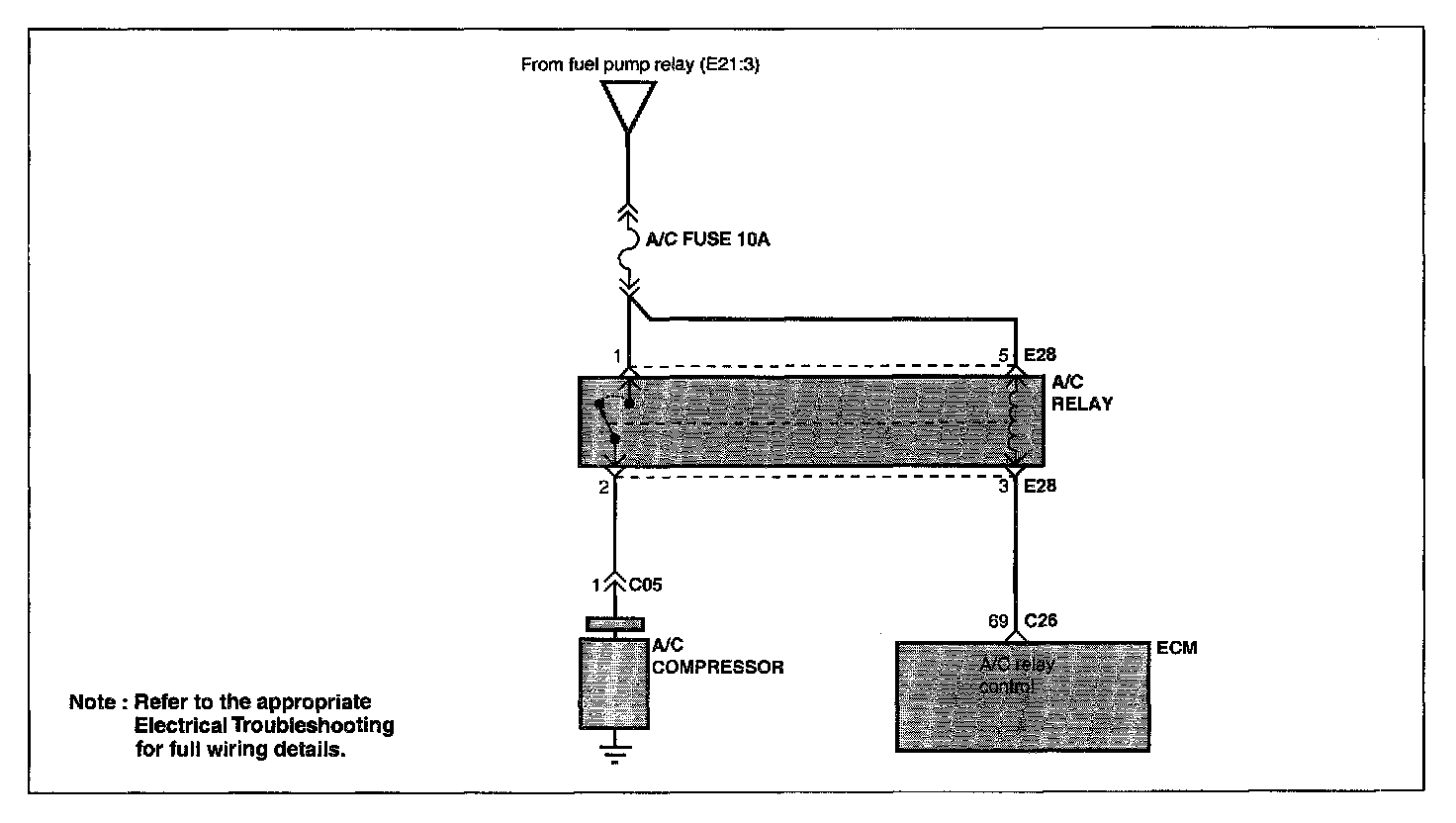

Circuit Diagram:
