Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
Cigarette Lighter

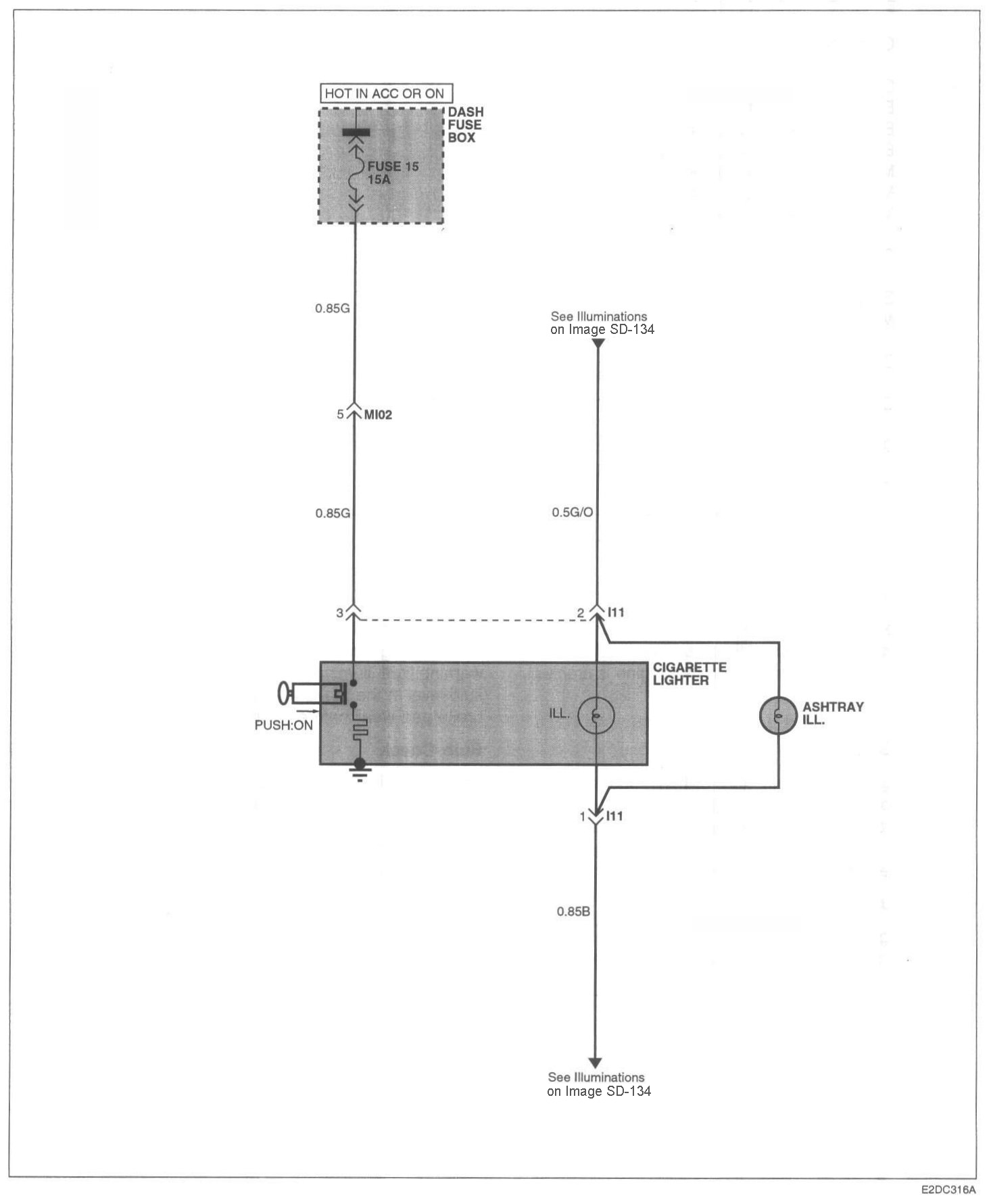

Image SD-66 Cigarette Lighter (1):
