Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Data Link Connector
Data Link Connector

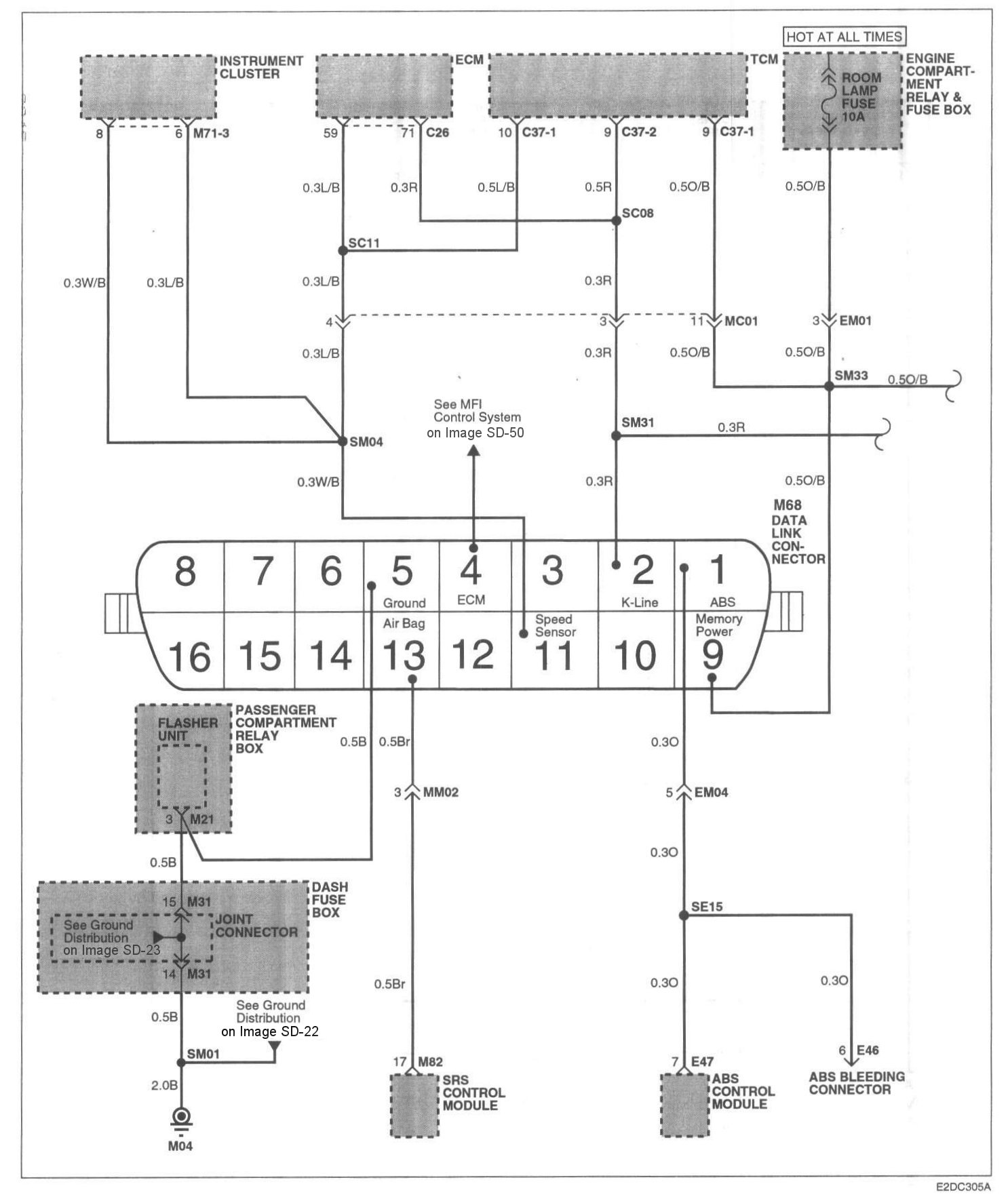

Image SD-30 Data Link Details (1):

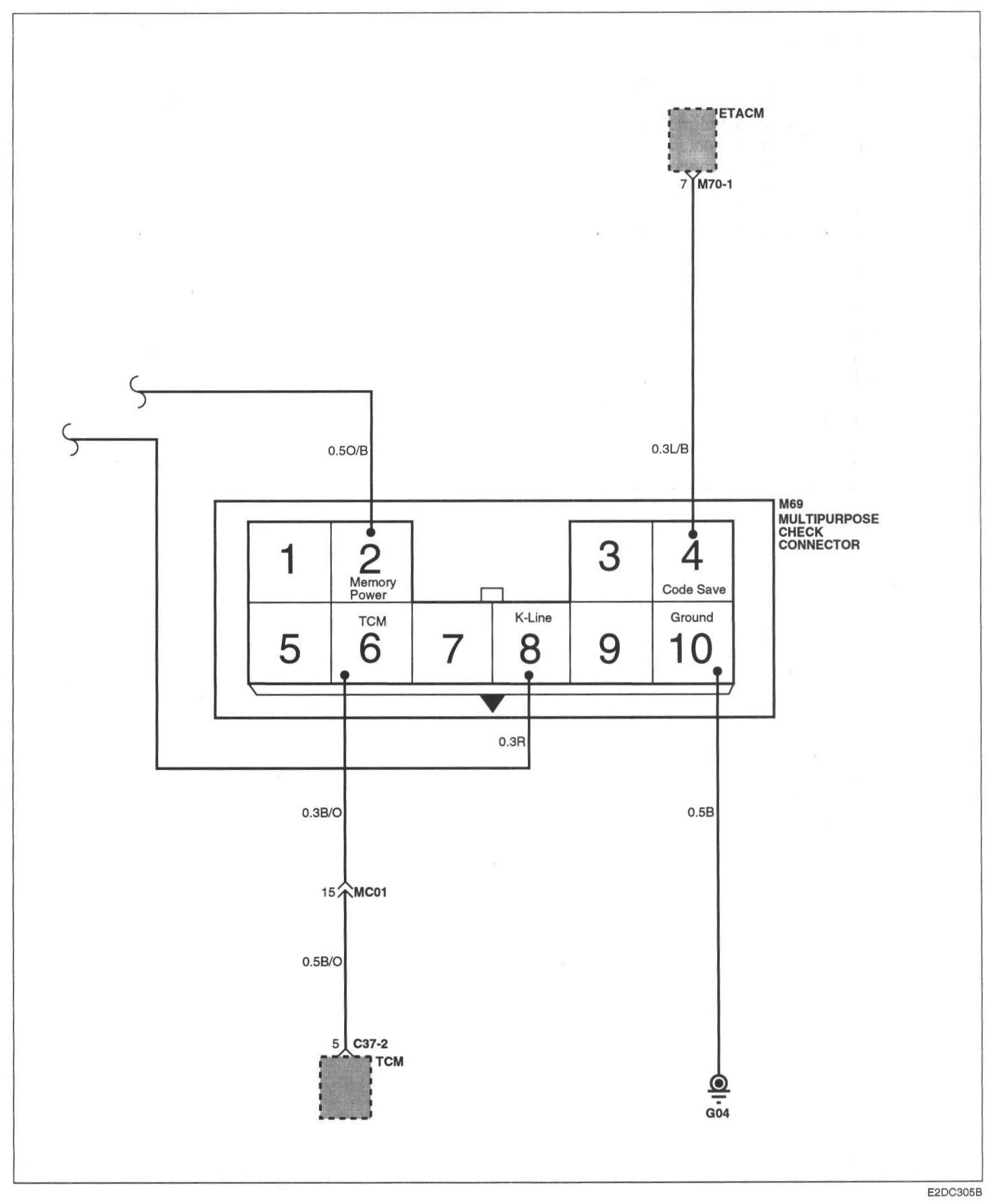

Image SD-31 Data Link Details (2):
