Ignition Lock Solenoid
Ignition Lock Solenoid

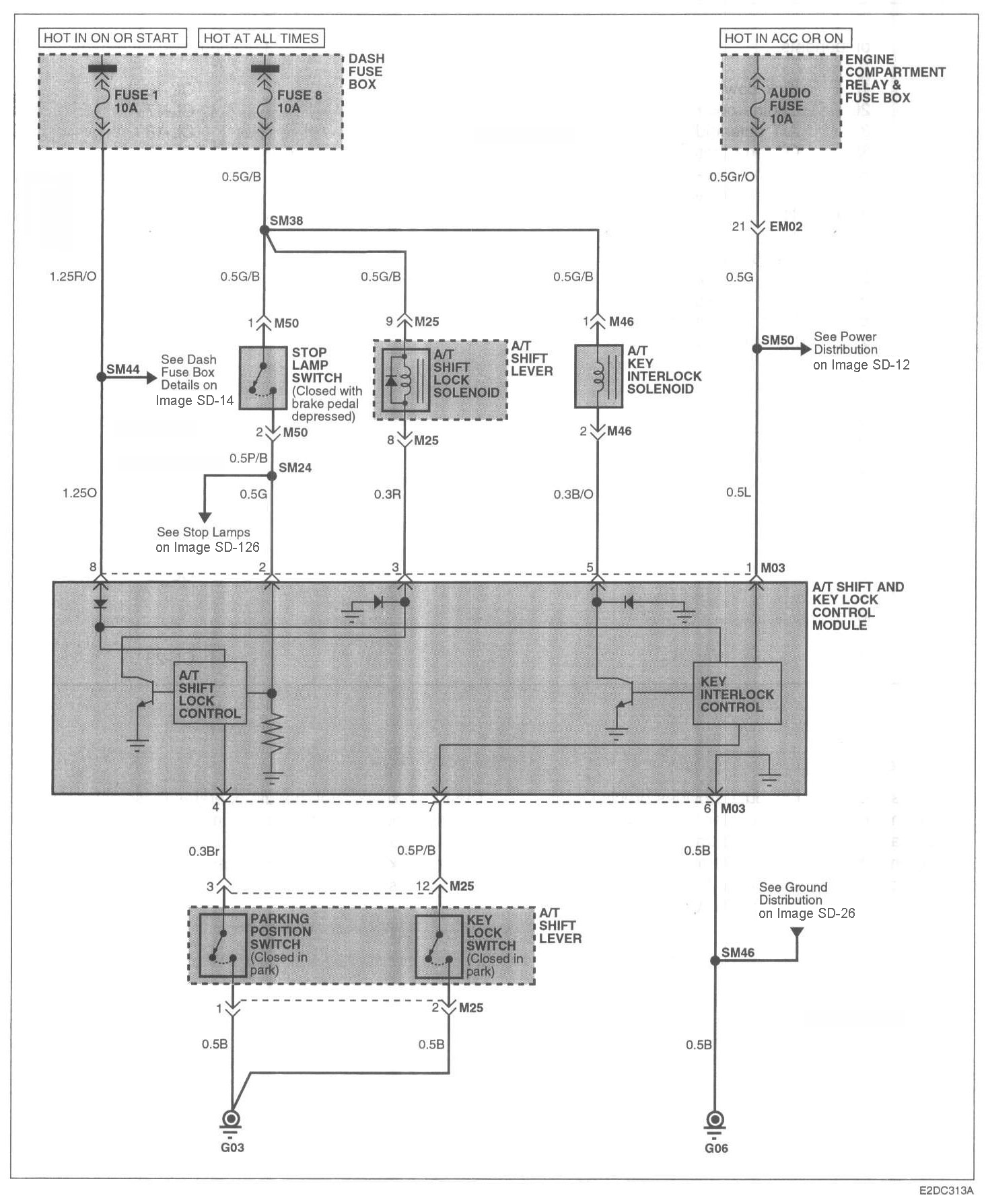

Image SD-58 Shift And Key Lock System (1):

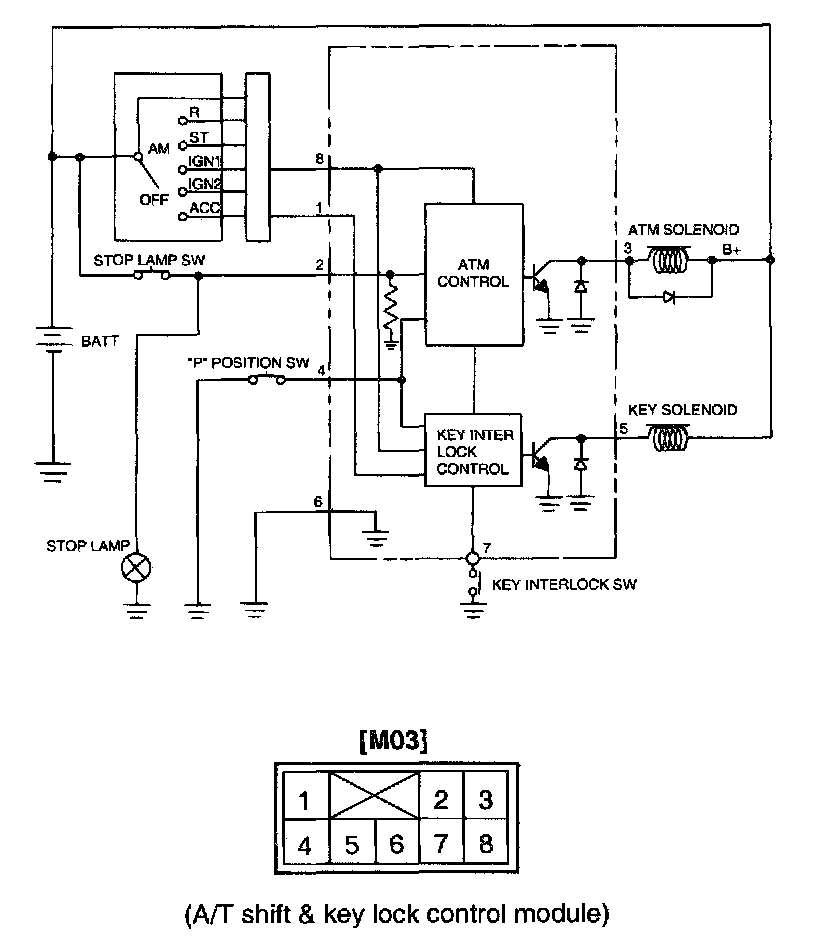

Circuit Diagram:
