Starting System
>>
System Diagram
System Diagram

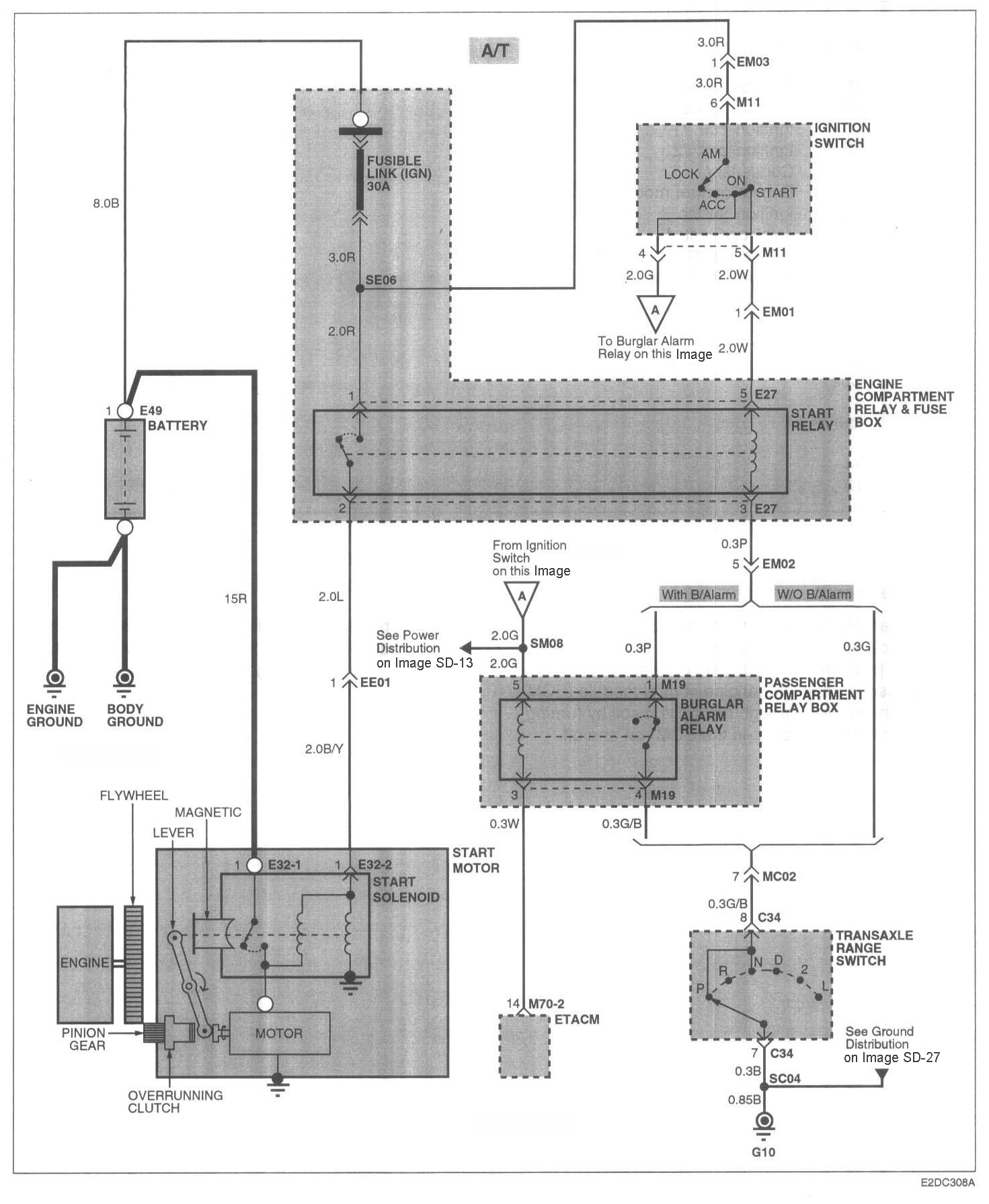

Image SD-38 Starting System (1):

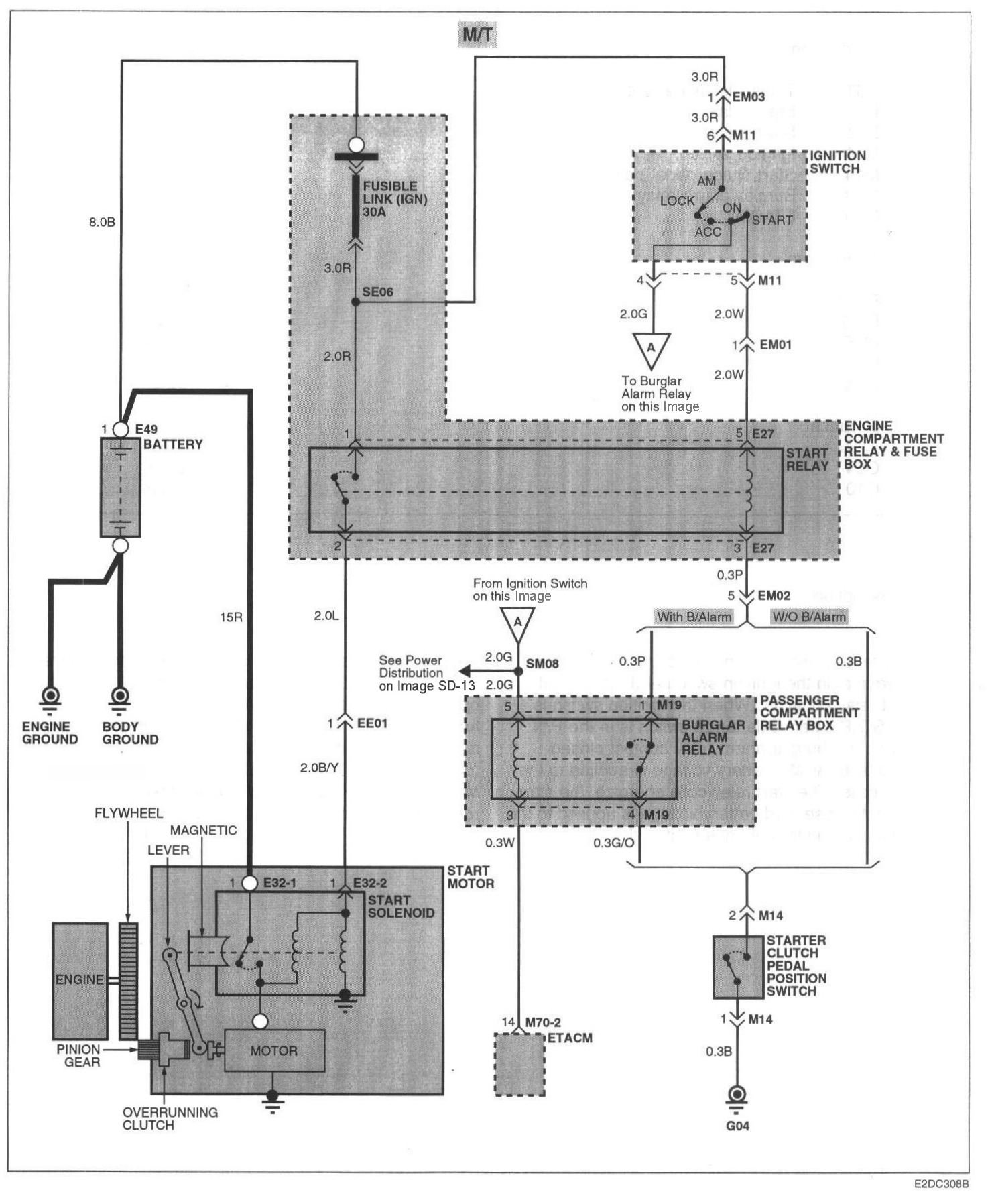

Image SD-39 Starting System (2):
