Trunk Lamp
Trunk Lamp

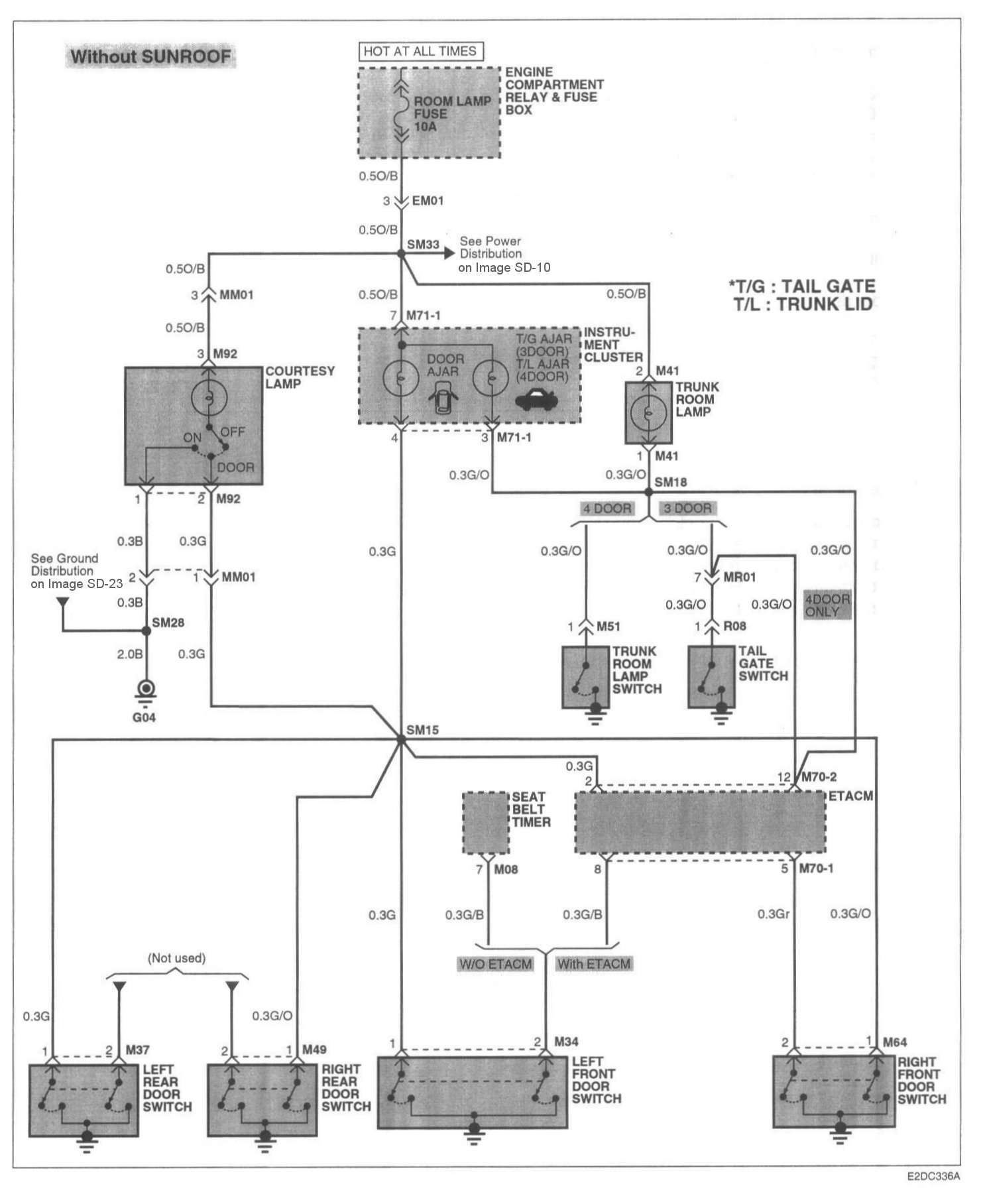

Image SD-128 Courtesy And Trunk Lamps (1):

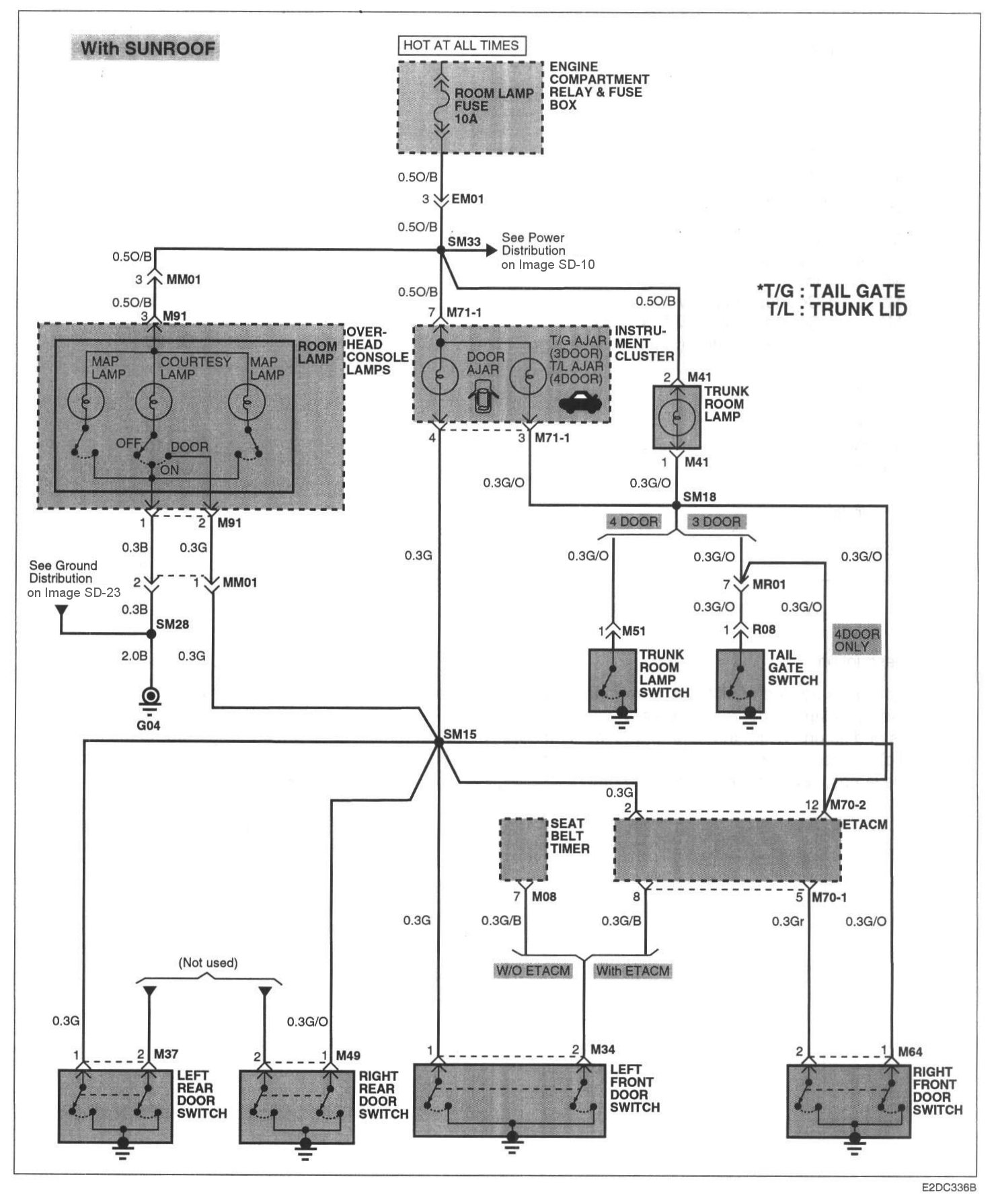

Image SD-129 Courtesy And Trunk Lamps (2):
