Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Compressor Pulley
Compressor Pulley

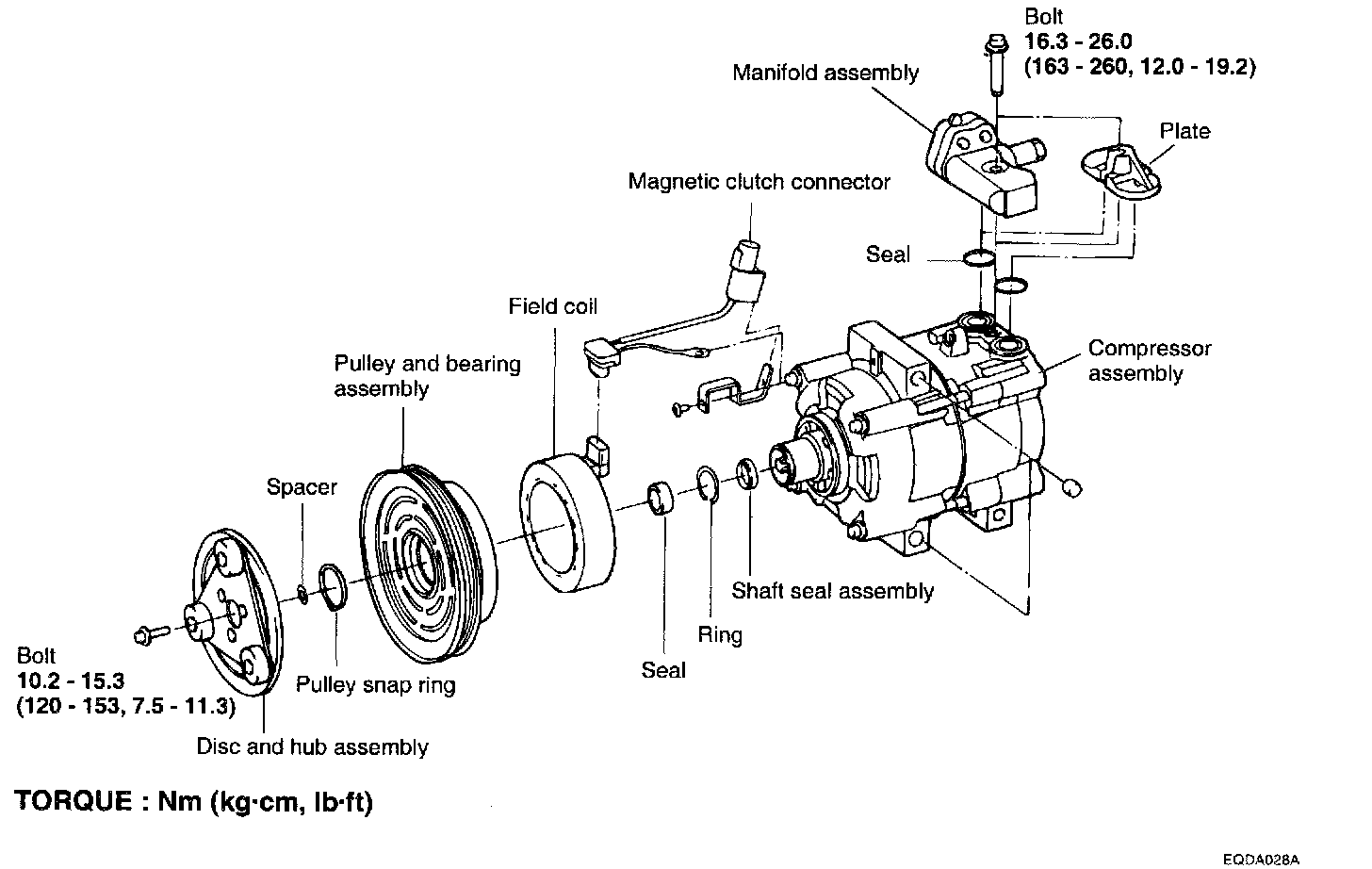

Compressor Components:
