Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Control Harness
Control Harness

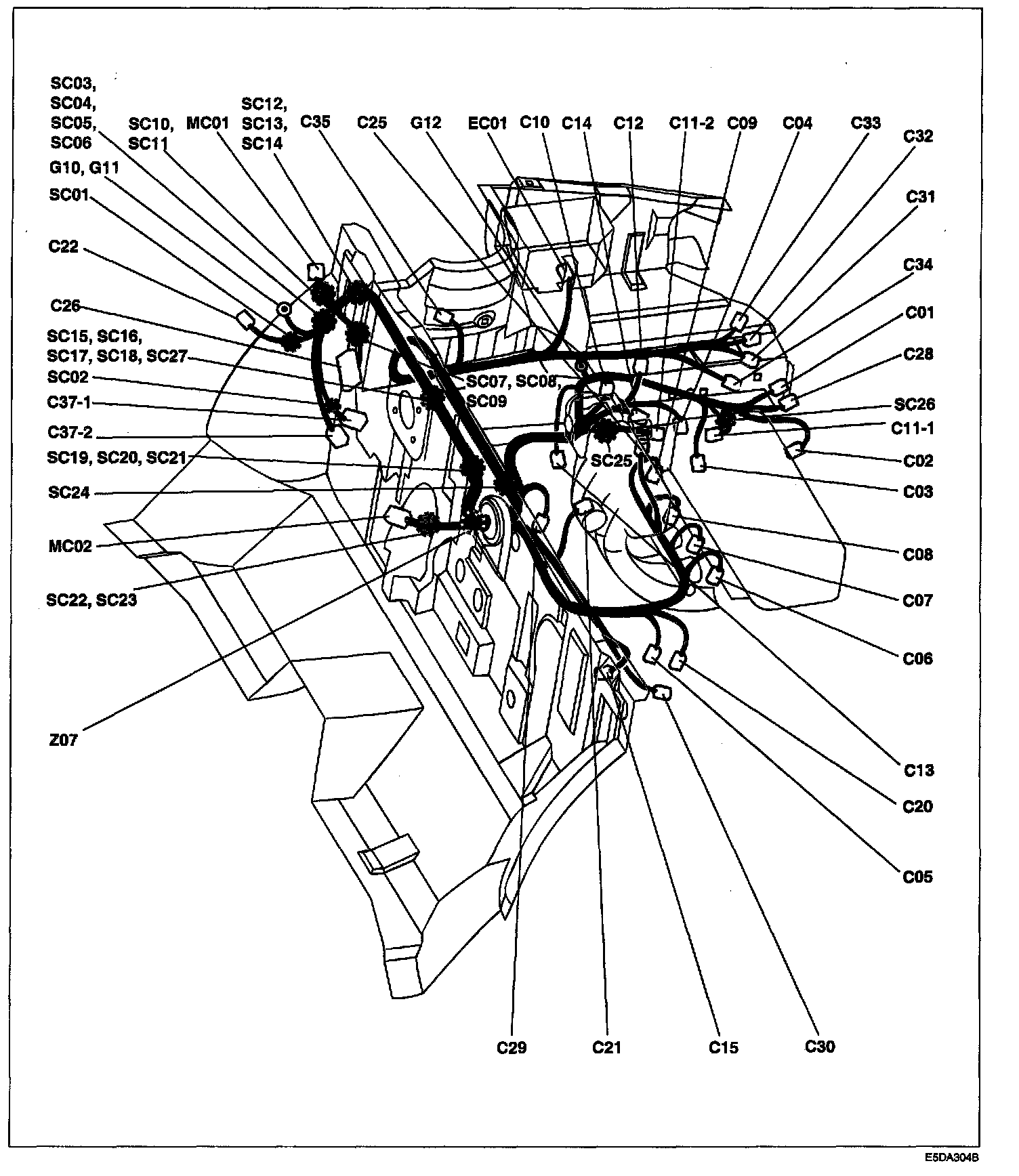

Control Harness (DOHC) View:

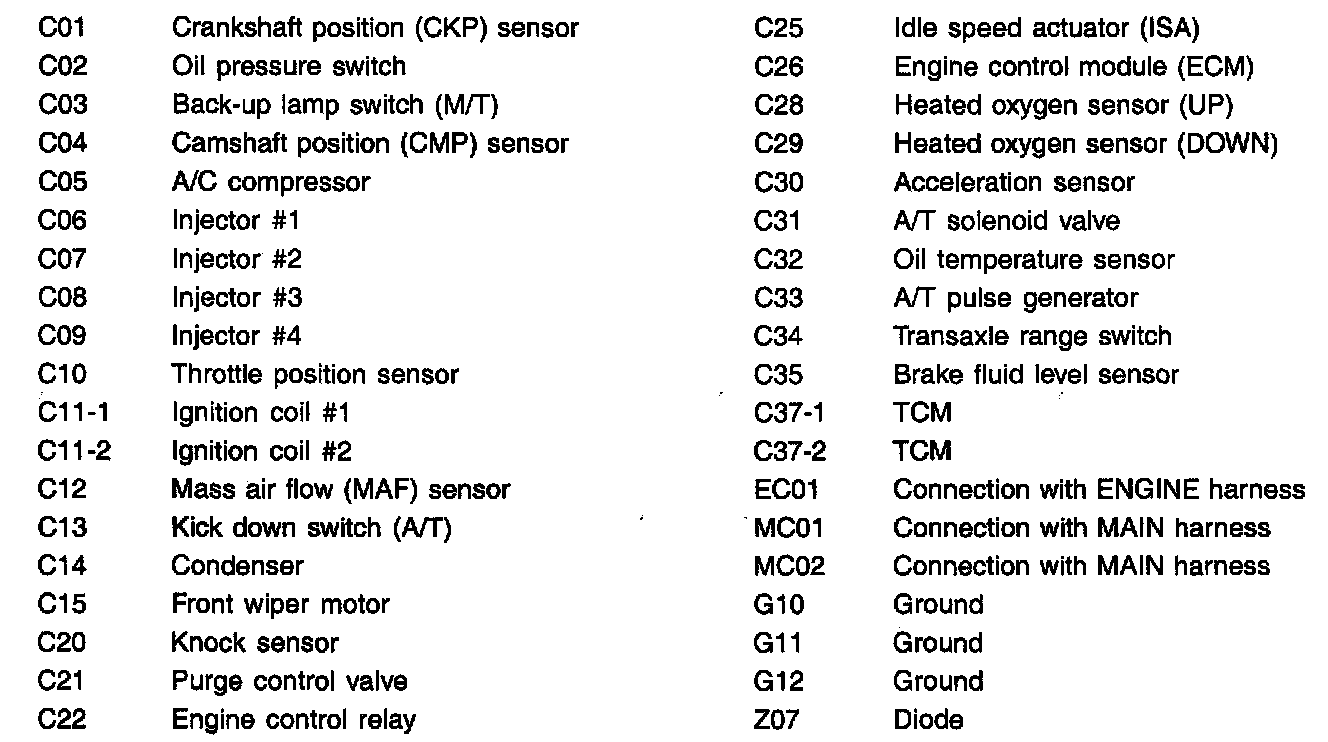

Control Harness (DOHC) Index:

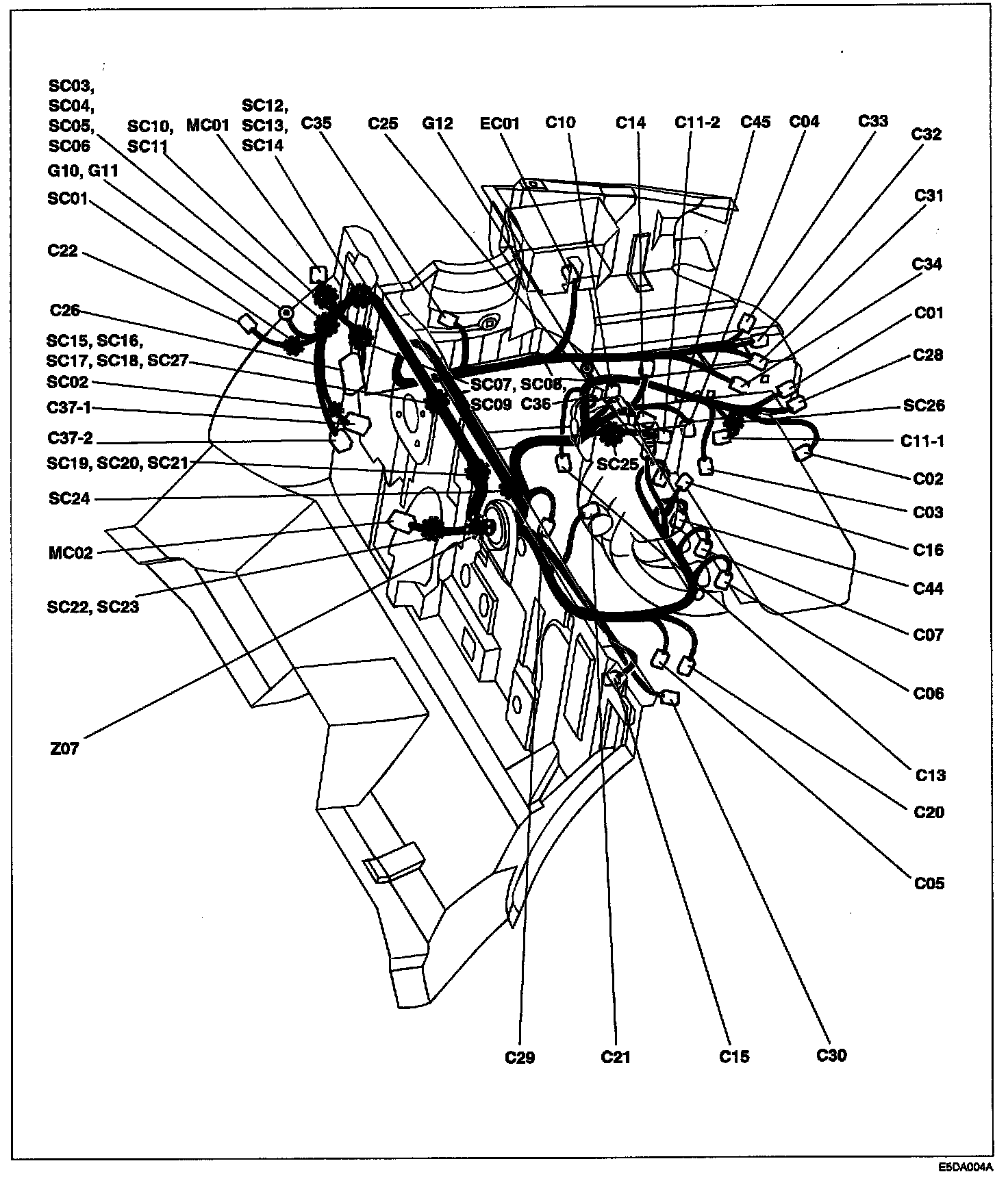

Control Harness (SOHC) View:

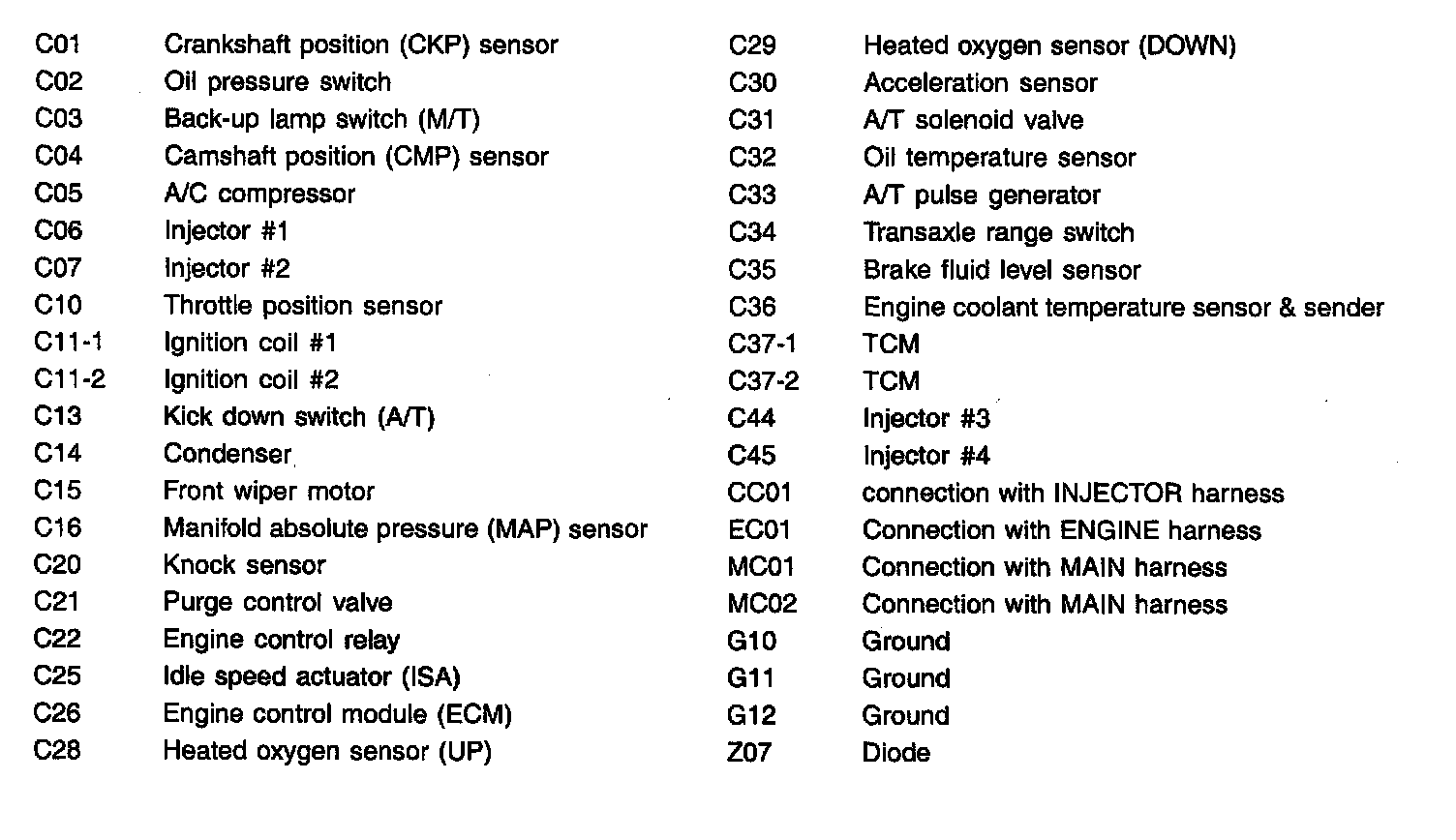

Control Harness (SOHC) Index:
