Blower Motor Resistor: Testing and Inspection

BLOWER RESISTOR

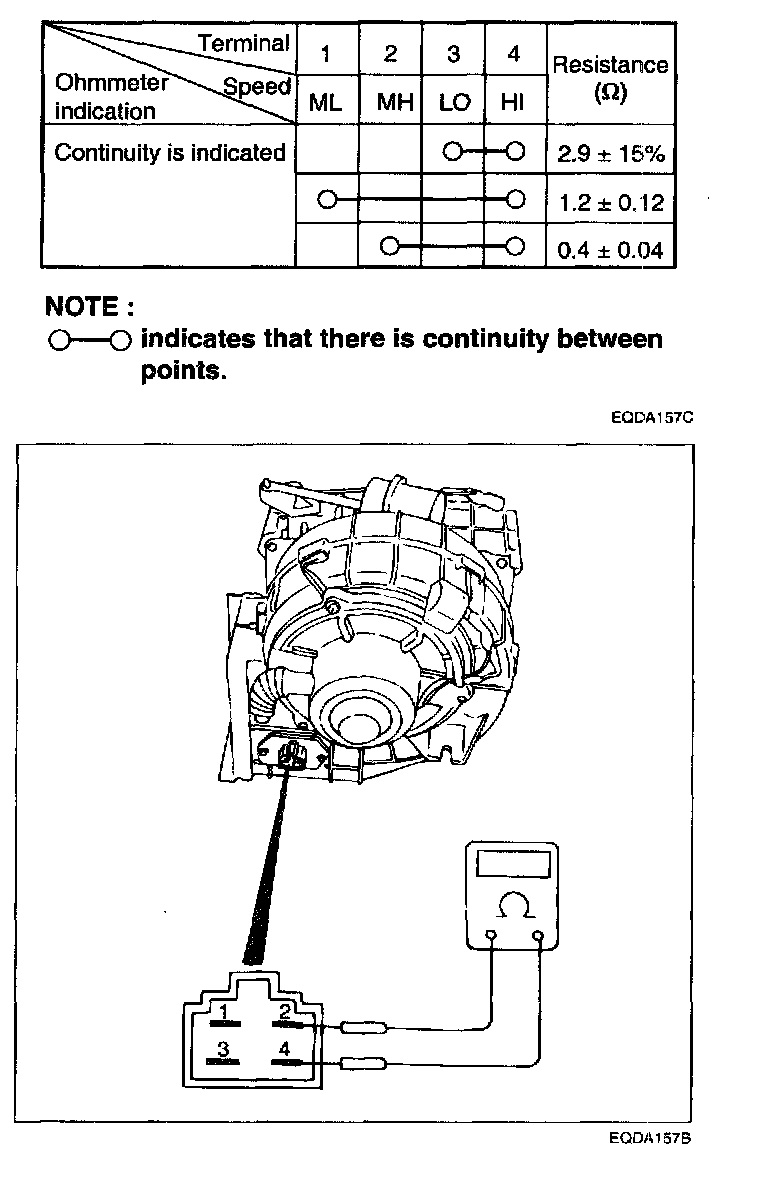

Measure terminal-to-terminal resistance of the blower resistor. If measured resistance is not within specification, the blower resistor must be replaced.
