Condenser Fan Motor Relay: Testing and Inspection
CONDENSER FAN RELAYINSPECTION
1. Remove the battery ground cable.
2. Remove the cover of relay box located in engine compartment.
3. Remove the relays from relay box.

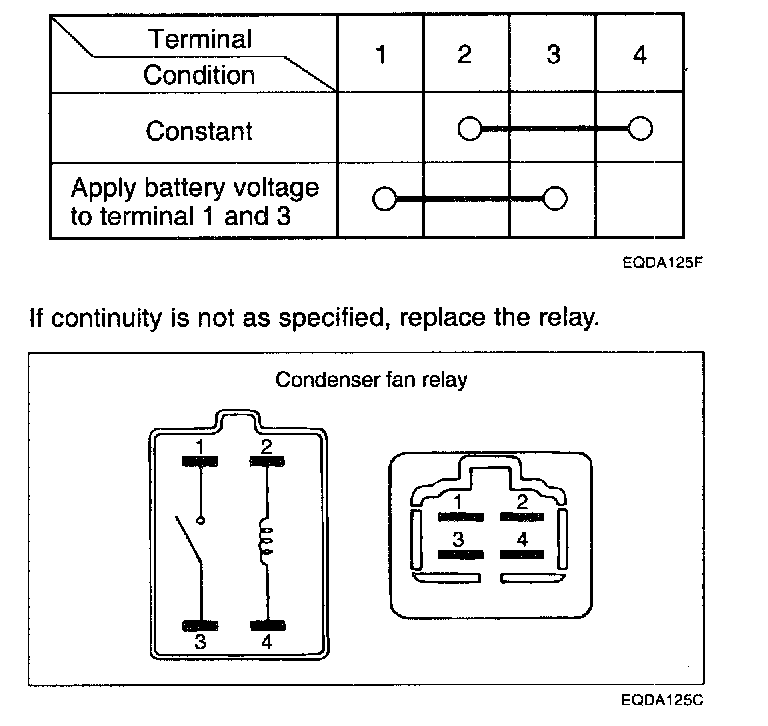

4. Check for continuity or voltage between the terminals.
Condenser Fan-Check For Voltage:
