Fuel Gauge Sender: Testing and Inspection

FUEL SENDER

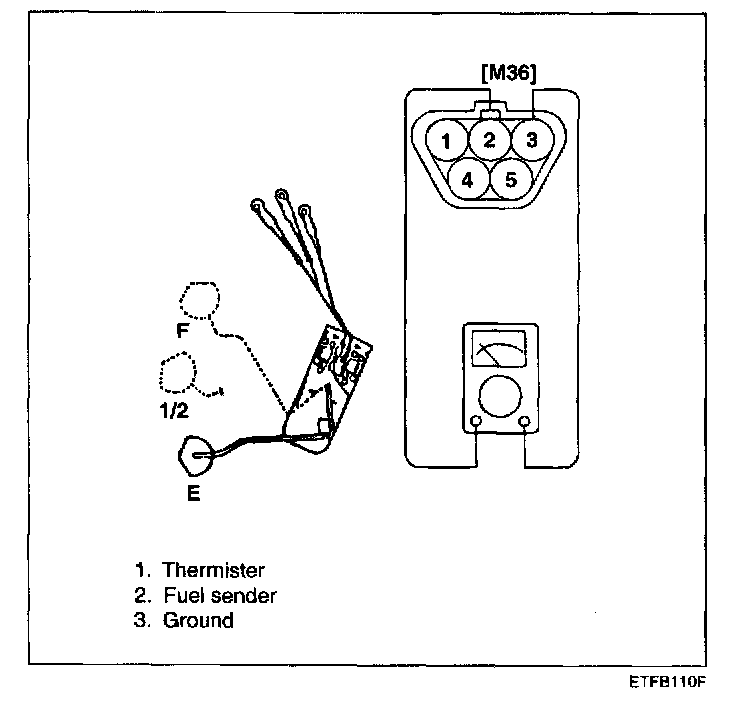

1. Using an ohmmeter, measure the resistance between terminals 2 and 5 at each float level.




2. Also check that the resistance changes smoothly when the float is moved from "E" to "F".
