Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Accent GL Hatchback L4-1.6L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

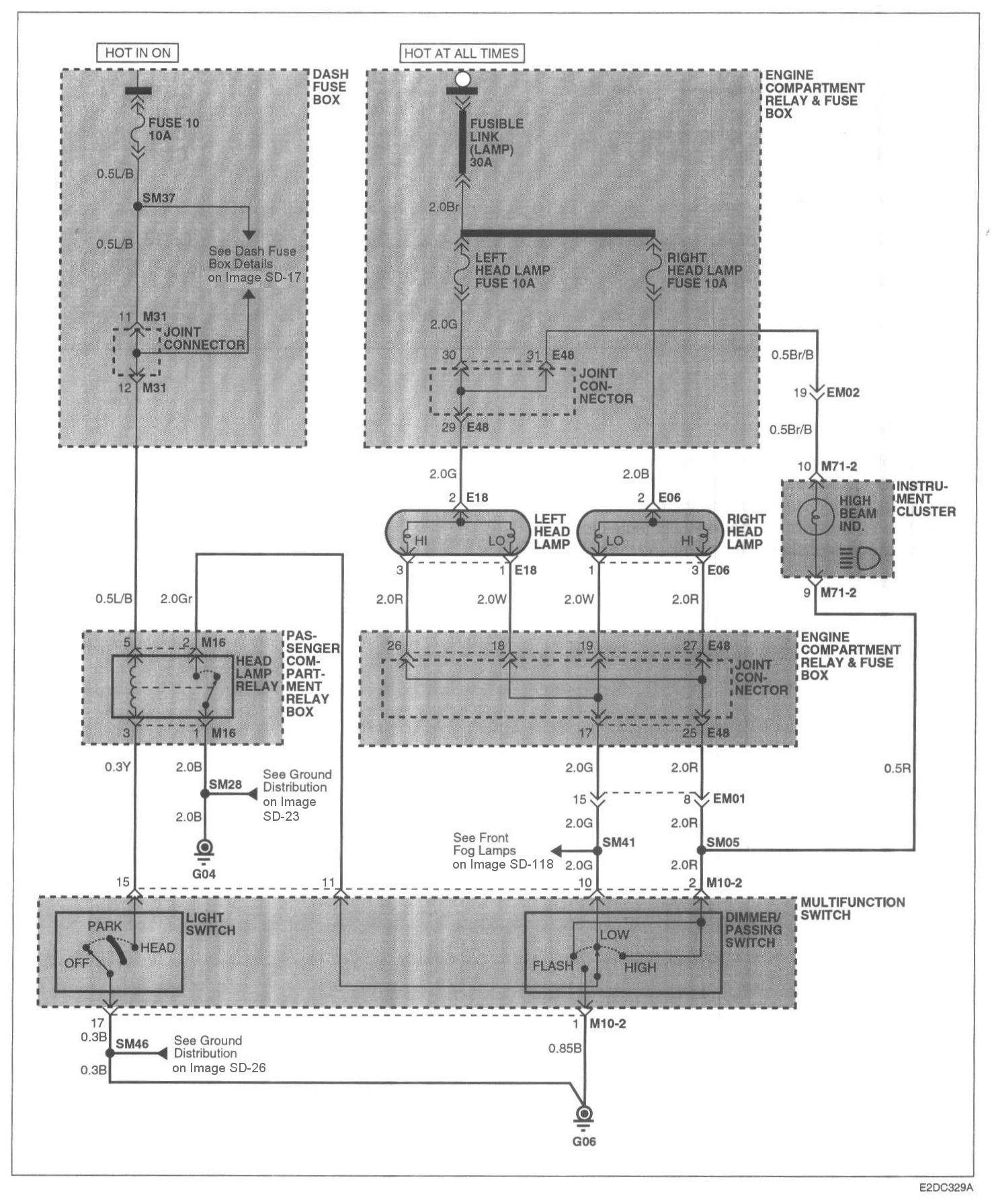

Image SD-108 Head Lamps (1):
