Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Positive Crankcase Ventilation >> Diagrams

Positive Crankcase Ventilation: Diagrams

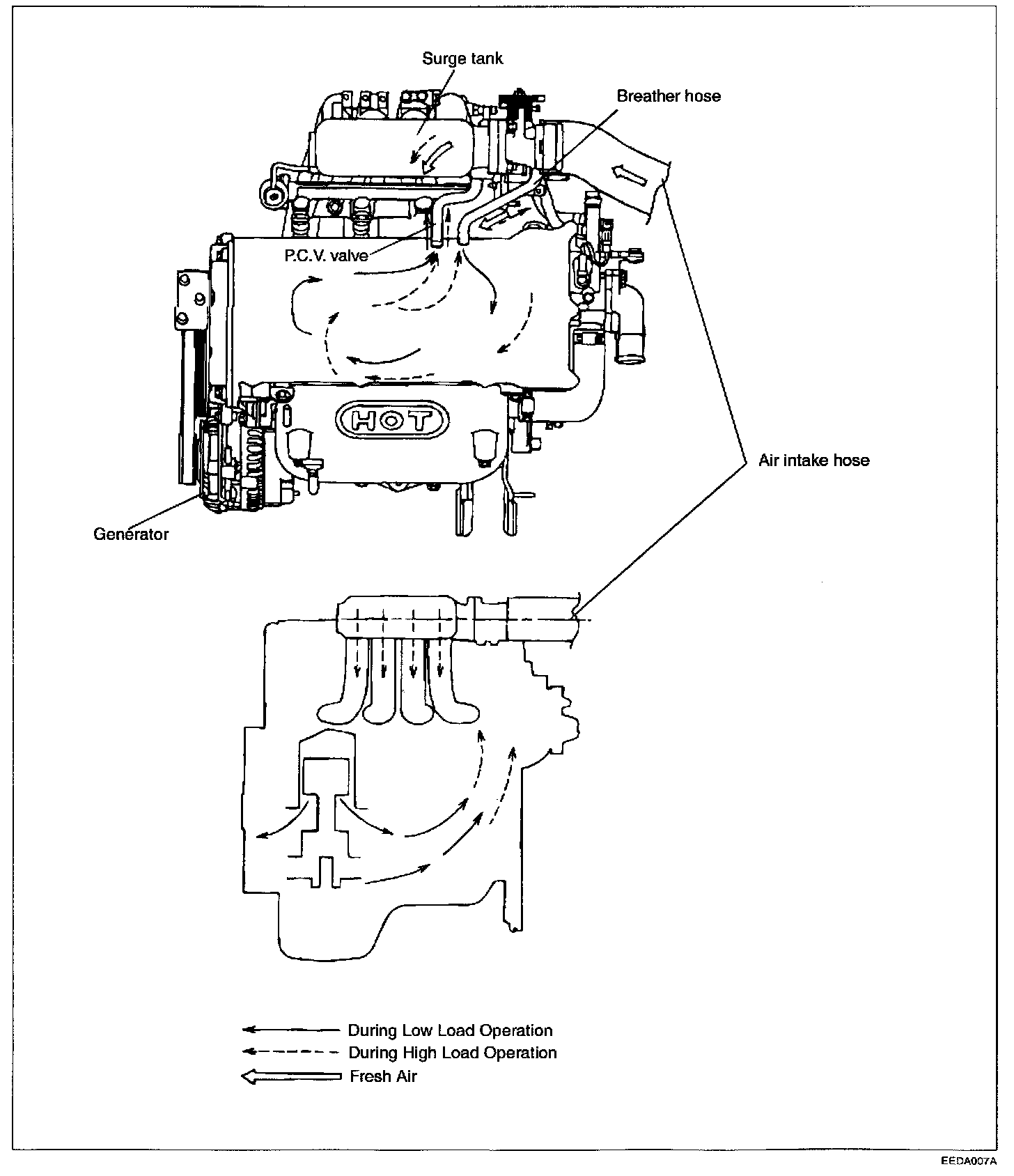

Crankcase Emission System:
