Home >> Hyundai >> 2002 >> Accent GL Hatchback L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Locations

Fuel Pump: Locations

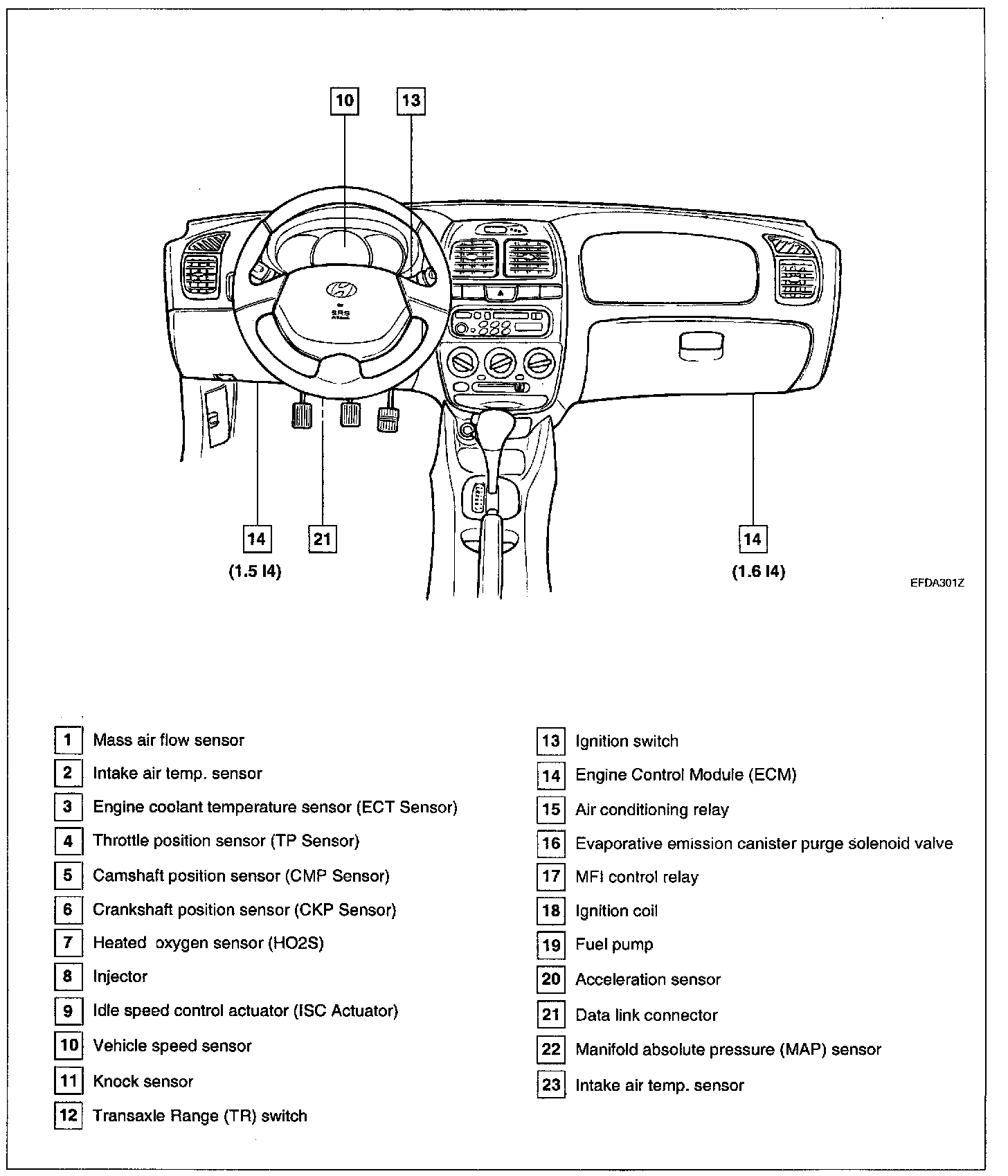

Location Of MFI Components Part 1:

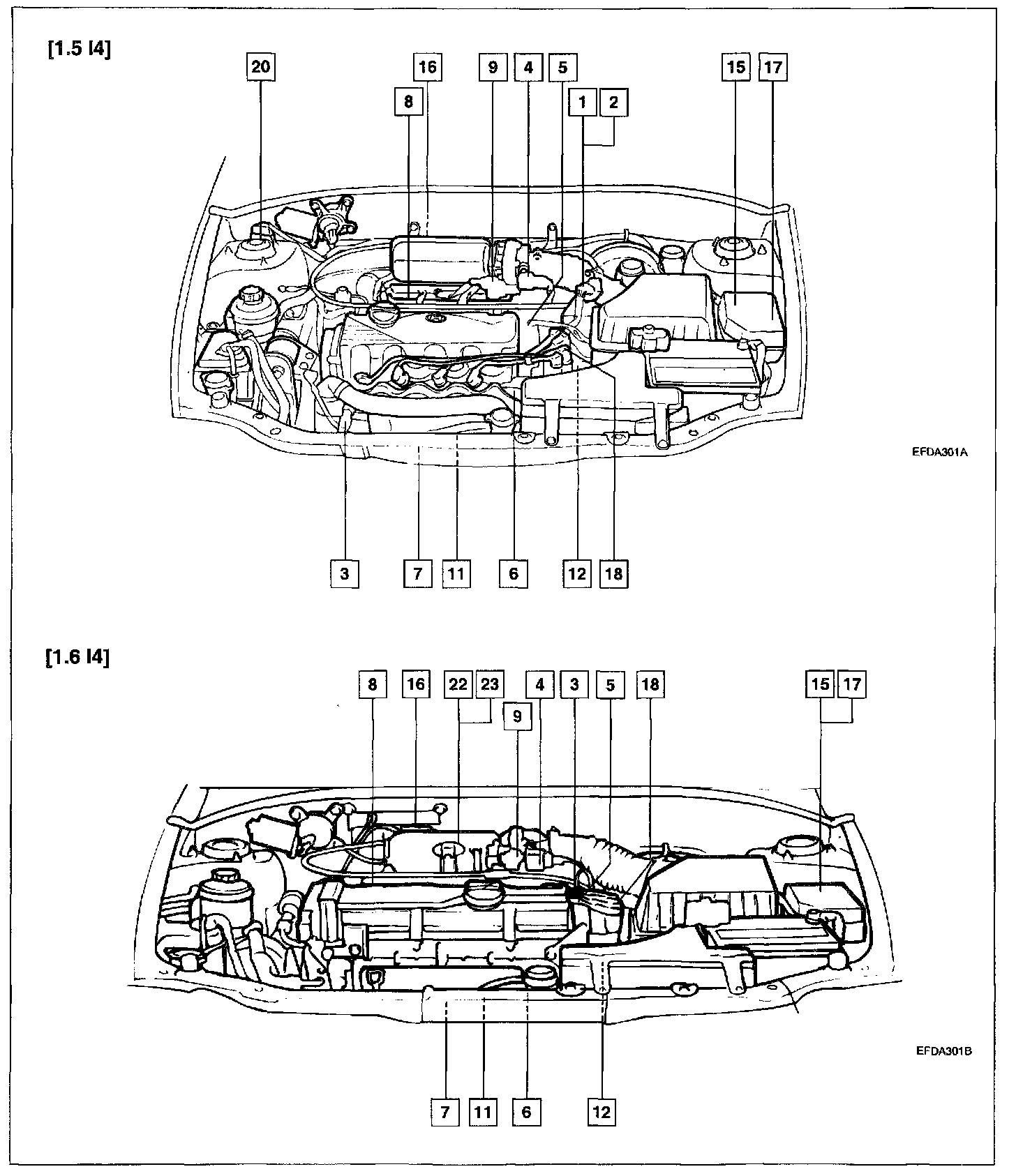

Location Of MFI Components Part 2:

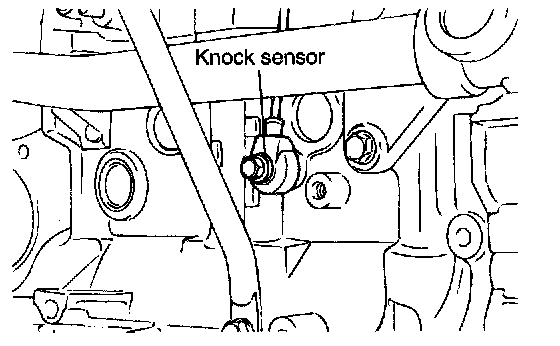

11. Knock Sensor:
