Starter Brush: Testing and Inspection

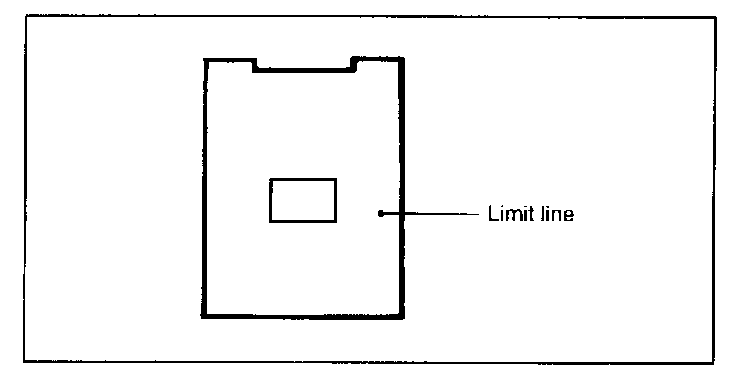

BRUSH
A brush worn down to the wear limit line should be replaced.

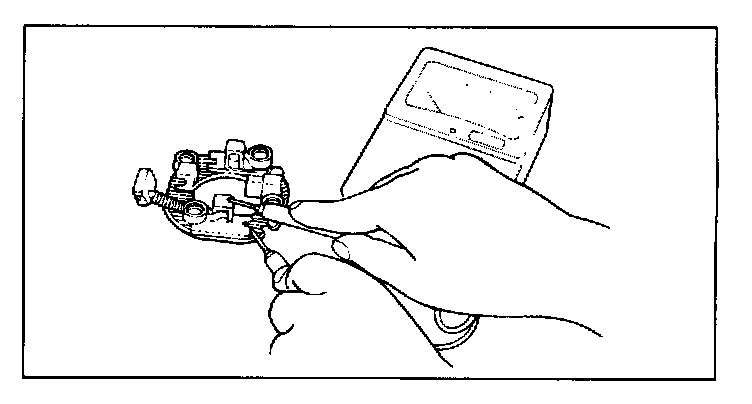

BRUSH HOLDER
Check for continuity between the (+) side brush holder and brush holder base. If there is continuity, replace the holder assembly.
