Power Window Switch: Testing and Inspection

1. Remove the switch from the door trim panel.

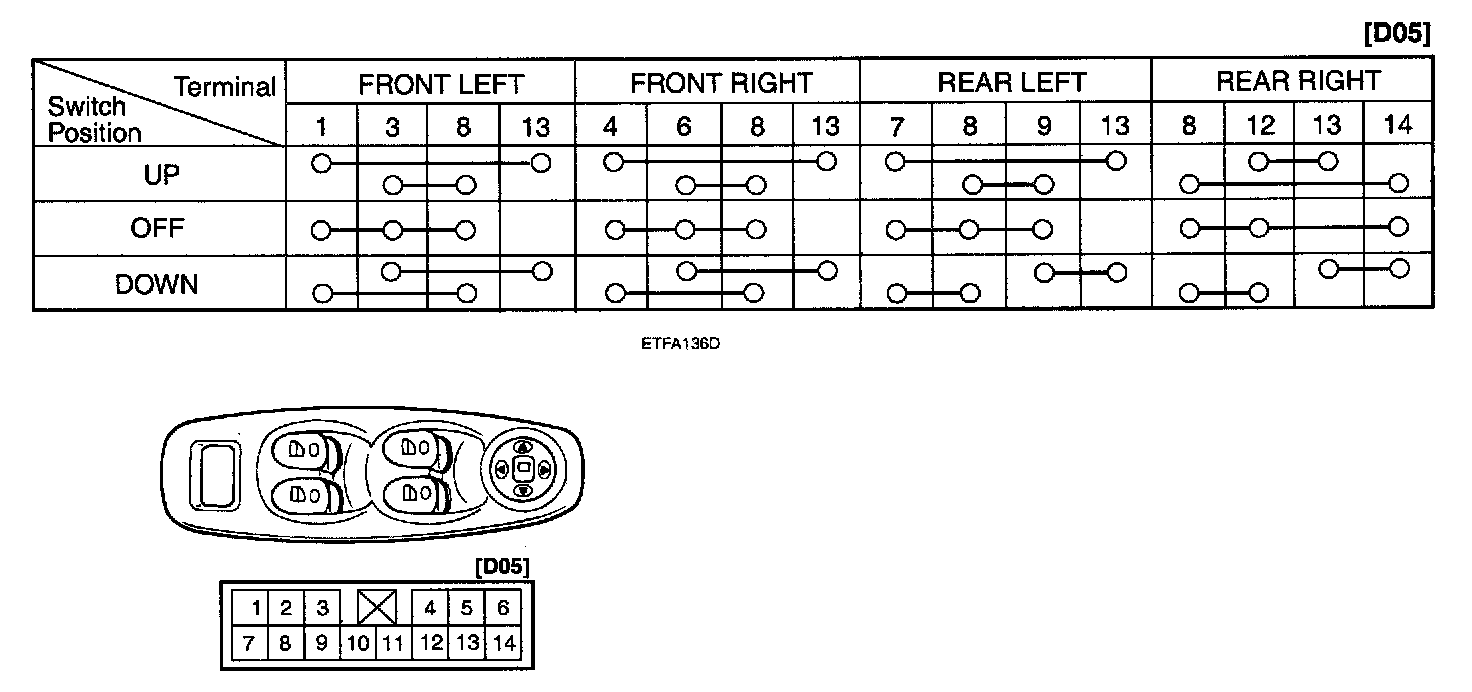

2. Check for continuity between the terminals. If continuity is not as specified, replace the power window switch.
