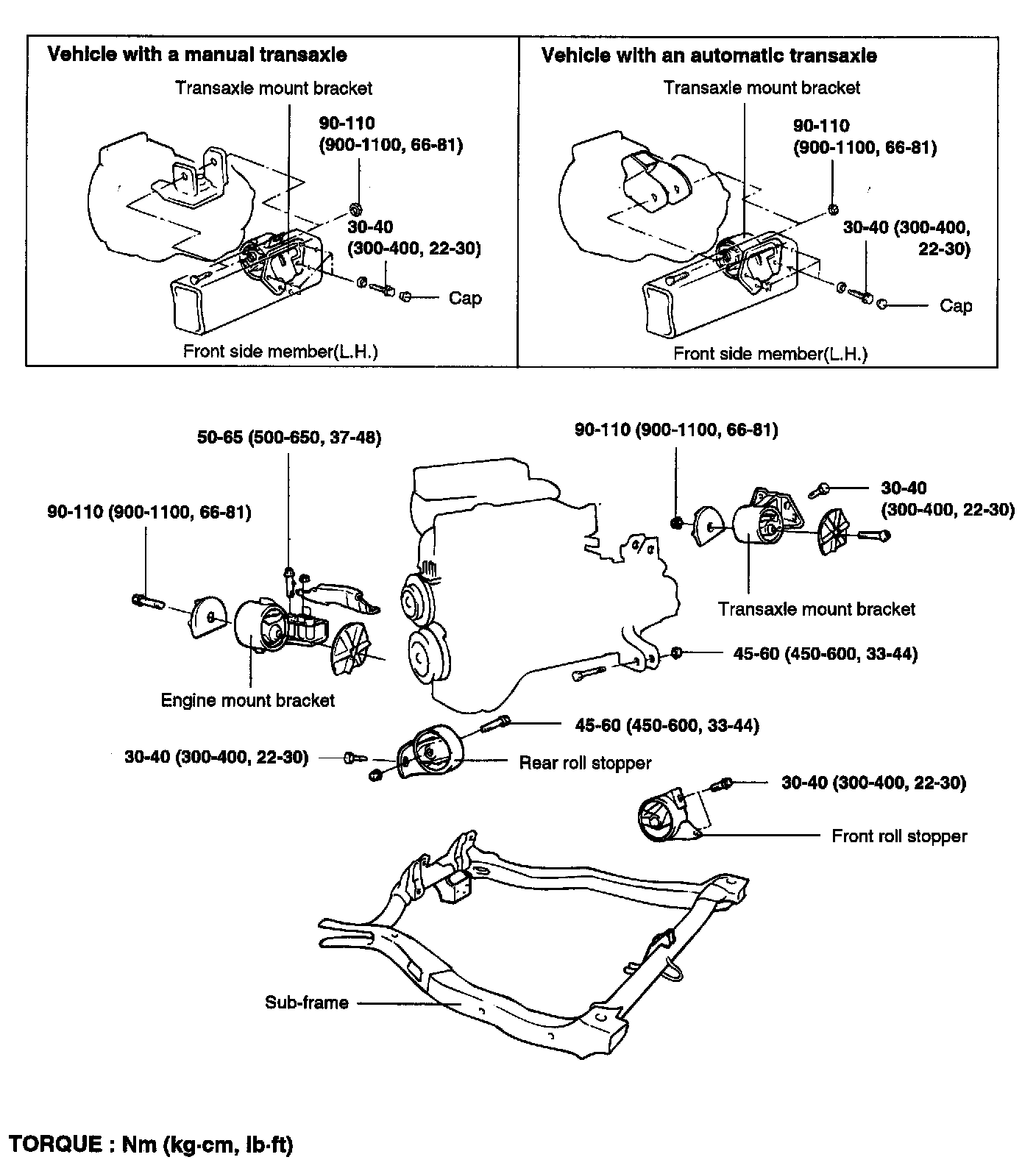

Engine Mounts

REMOVAL





Attach an engine hoist to the engine hooks, and raise the engine just enough so that there is no pressure on the insulators.

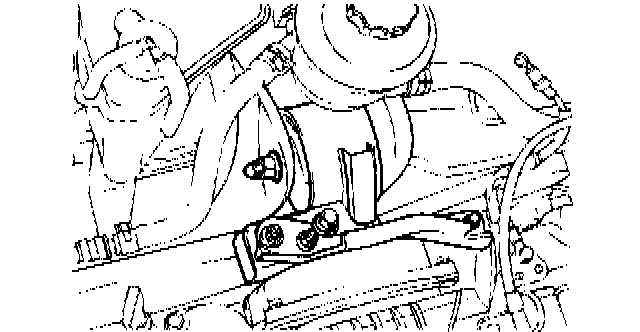

ENGINE MOUNTING
1. Remove the engine mount insulator bolts.
2. Remove the engine mount bracket from the engine.

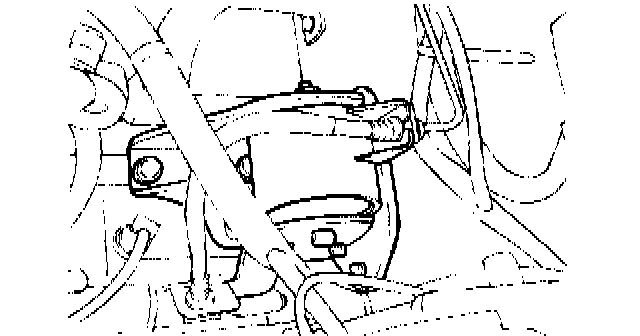

TRANSAXLE
1. For vehicles with a 5-speed manual transaxle, remove the shift lever.





2. Remove the transaxle mount bolt.

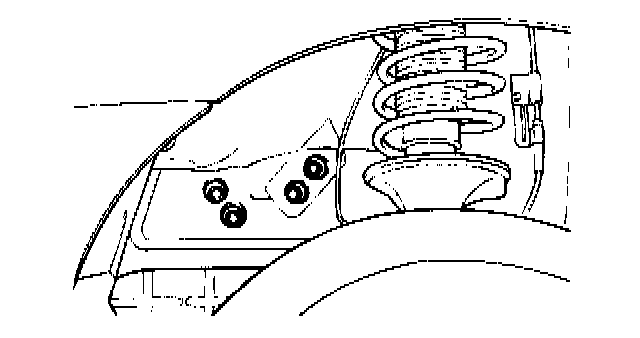

3. Detach the cap from inside the right fender shield. Remove the transaxle mounting bolts.





4. Remove the transaxle mounting bracket.

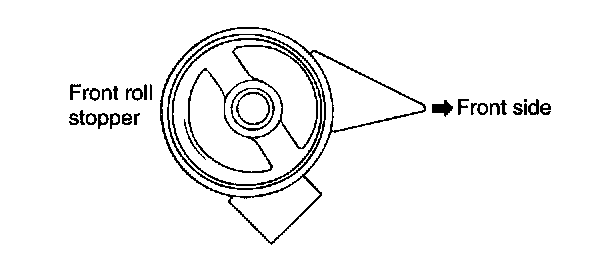

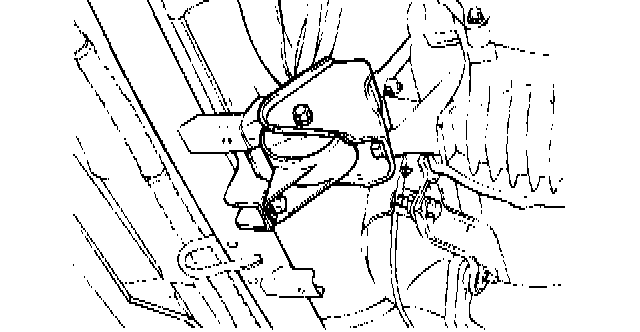

FRONT ROLL STOPPER
1. Remove the upper and lower bolts of the front roll stopper.
2. Remove the front roll stopper assembly.

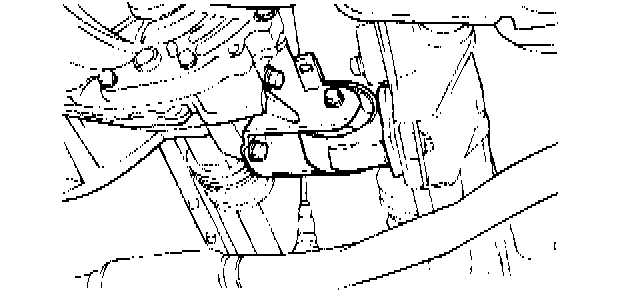

REAR ROLL STOPPER
1. Remove the bolt of the rear roll stopper.
2. Remove the rear roll stopper from the sub-frame.

INSTALLATION
1. While checking the connections of the harnesses, pipes, hoses, etc., and making sure that none of them are caught, damaged, etc., install the engine and transaxle assembly





2. When the engine and transaxle assembly is installed temporarily tighten the front roll stopper.
3. After the weight of the engine and transaxle assembly has been applied to each insulator, tighten to the specified torque.
4. Reassemble all of the components removed during disassembly. Be especially careful to properly secure all components, including fuel, electrical and fluid pipe connections.
5. Refill the coolant and check for leaks.
6. Refill the transaxle fluid, test its operation, and check for leaks.
7. Check the operation of the transaxle control cable and accelerator cable. Adjust as necessary.
8. Check for proper operation of each of the various gauges.
