Valves

DISASSEMBLY

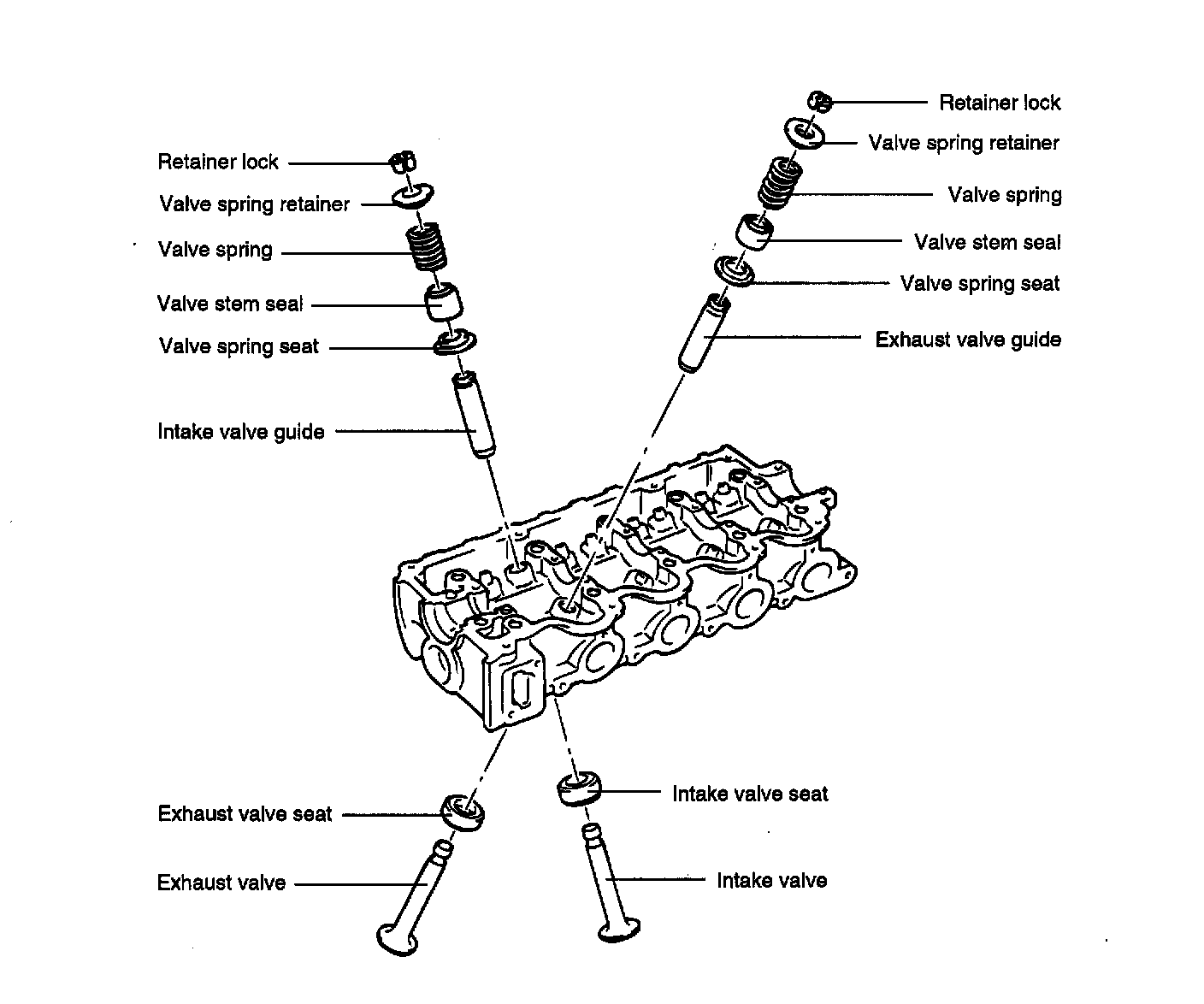

1. Using the special tool, Valve Spring Remover and Installer, remove the retainer lock. Next, remove the spring retainer, valve spring, spring seat and valve.

NOTE: Keep these parts in order so that they can be reinstalled in their original positions.

2. Remove the valve stem seals with pliers, and discard them.

NOTE: Do not reuse the valve stem seals.

INSPECTION
VALVE SPRING
1. Check the valve spring free length and tension. If they exceed the service limit, replace the spring.
2. Using a square, test the squareness of each spring. If a spring is excessively out of square, replace it.
Standard value
Free height: 42.03 mm (1.655 inch)
Load: 24.7kg at 34.5 mm
Out of square: 1.50 or less

VALVE GUIDES
Check the valve stem-to-guide clearance. If the clearance exceeds the service limit, replace the valve guide with the next oversize part.

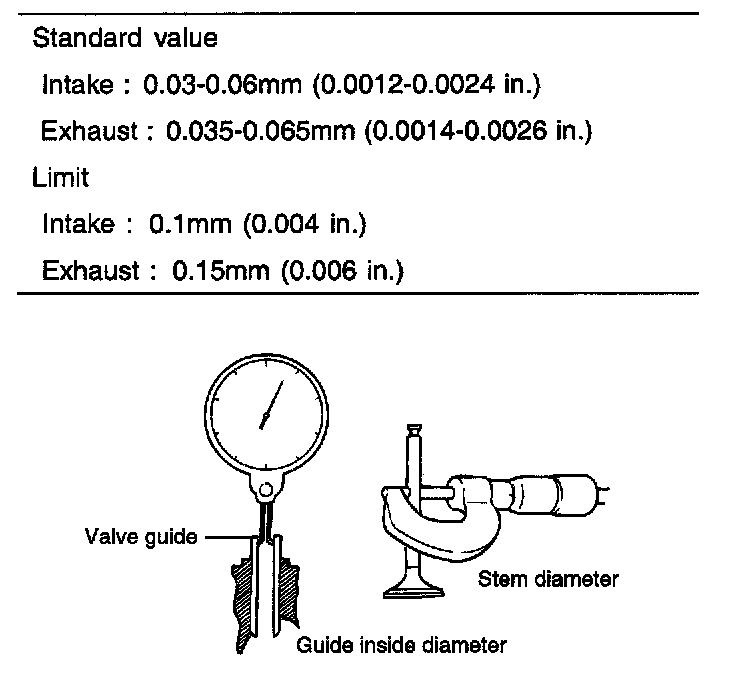

VALVE STEM-TO-GUIDE CLEARANCE

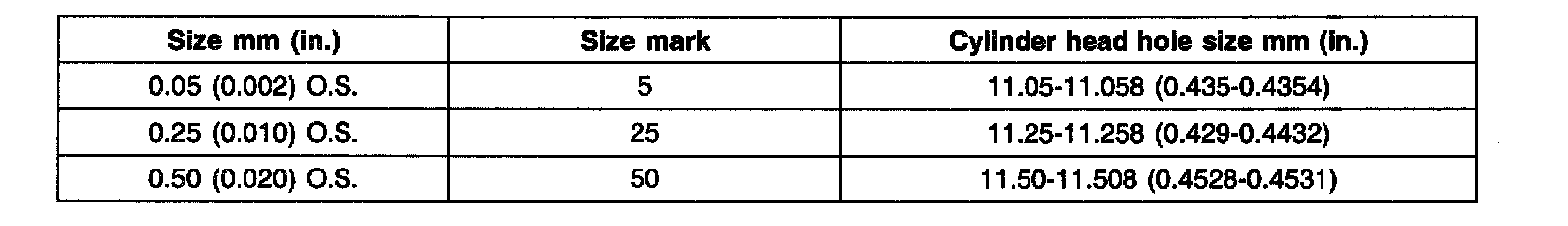

VALVE GUIDE OVERSIZES





VALVE SEAT INSERT
Check the valve seat for evidence of overheating and improper contact with the valve face. Recondition or replace the seat, if necessary.
Before reconditioning the seat, check the valve guide for wear. If the valve guide is worn, replace it, then recondition the seat. Recondition the valve seat with a valve seat grinder or cutter. The valve seat contact width should be within specifications and centered on the valve face.

VALVES





Check each valve for wear, damage and distortion of head and stem at B. Repair or correct, if necessary. If stem end A is pitted or worn, resurface as necessary. This correction must be limited to a minimum. Also resurface the valve face.
Replace the valve if the margin has decreased to less than the service limit.

VALVE STEM-TO-GUIDE CLEARANCE
Standard value
Intake: 1.1 mm (0.043 inch)
Exhaust: 1.4 mm (0.055 inch)
Limit
Intake: 0.8 mm (0.031 inch)
Exhaust: 1.1 mm (0.043 inch)

REASSEMBLY

NOTE:
1. Thoroughly clean each part before assembly.
2. Apply engine oil to sliding and rotating parts.





1. After installing the spring seat, fit the stem seal onto the valve guide.

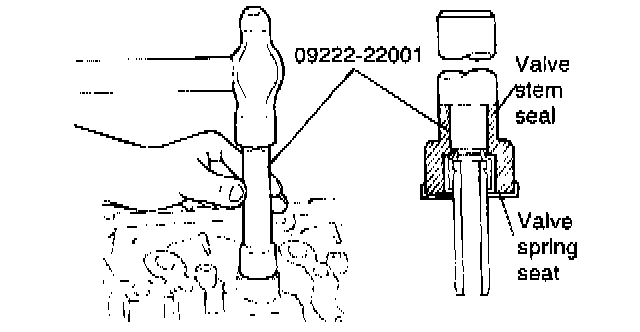

To install, fit the seal in by lightly tapping the Special Tool, Valve Stem Oil Seal Installer (09222-22001)
The seal is installed in the specified position by means of the special tool. Incorrect installation of the seal will adversely affect the lip I.D. and eccentricity, resulting in oil leaking down the valve guides. Therefore, when installing, be careful not to twist the seal. Do not reuse old stem seals.
2. Apply engine oil to each valve. Insert the valves into the valve guides. Avoid using force when inserting the valve into the seal. After insertion, check to see if the valve moves smoothly.





3. Install springs and spring retainers. Valve springs should be installed with the enamel coated side toward the valve spring retainer.
Valve springs should be installed with the enamel coated side toward the valve spring retainer.

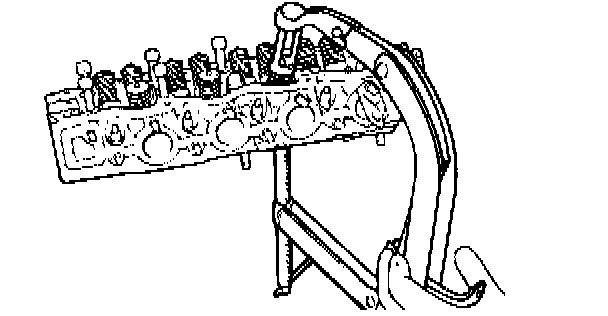

4. Using special tool, Valve Spring Remover and Installer, compress the spring. Be careful that the valve stem seal is not distorted by the bottom of the retainer. Then install the retainer locks. After installation of the valves, make certain that the retainer locks are properly installed.
5. Install the cylinder head.
