Ignition Coil: Service and Repair

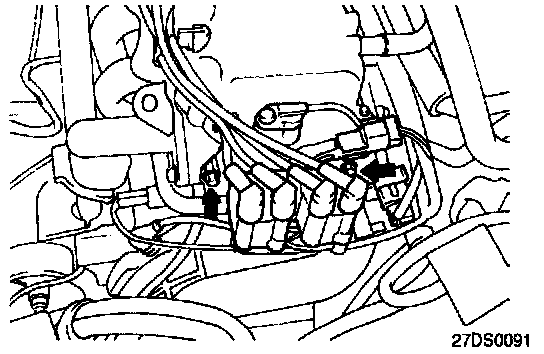

COMPONENTS

REMOVAL AND INSTALLATION







1. Remove the ignition fuse (Fusible link-F).
2. Disconnect the lead wire.
3. Remove the ignition coil mounting bolt and remove the ignition coil assembly.
4. Installation is the reverse order of removal.
