Component Inspection

Engine Control
P0032 HO2S Heater Circuit high (Bank 1 / Sensor 1) - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Measure resistance between terminals 5 and 6 of the sensor connector (Component side).

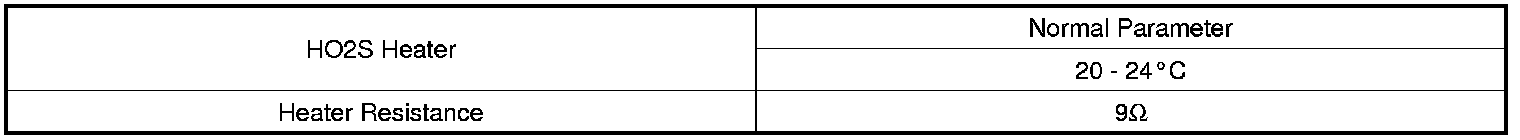

Specification









3. Is HO2S heater resistance display near the specified value?
YES
> Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO
> Check HO2S for contamination, deterioration, or damage. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to "Verification of Vehicle Repair" procedure.
