P0116 Engine Coolant Temperature Circuit Range / Performance - General Information

Component Location





General Description

An Engine Coolant Temperature Sensor (ECTS) monitors the temperature of the coolant. This input is used by the PCM for engine control and as an enabling criteria for same diagnostics. The air flow coming into the engine is accumulated and used to determine if the engine has been driven within conditions that would allow the engine coolant to heat up normally to the thermostat regulating temperature. If the coolant temperature does not reach regulating temperature of the thermostat, diagnostics that use engine coolant temperature as enabling criteria, may not run when expected.
This DTC will set when there has been excessive time to reach a minimum coolant temperature required for closed loop fuel control.

DTC Description

The purpose of this diagnosis is to detect a stuck coolant temperature signal. The diagnostic function checks whether after a variation of the calculated coolant temperature also a variation of the measured coolant temperature is detected. PCM sets DTC P0116 when the variation of measured engine coolant temperature from engine start is smaller than threshold while variation of calculated coolant temperature by PCM is greater than threshold.

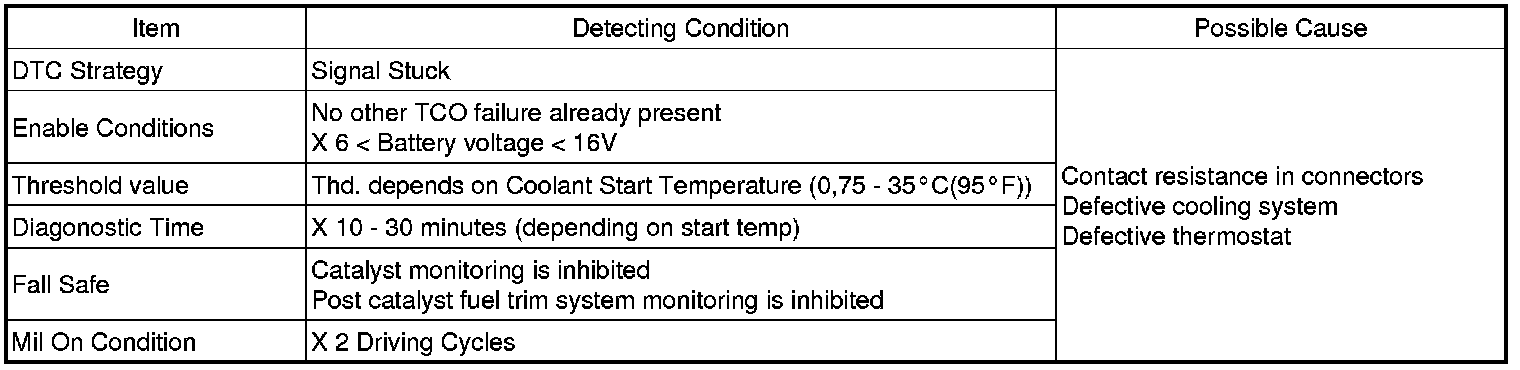

DTC Detecting Condition





Specification

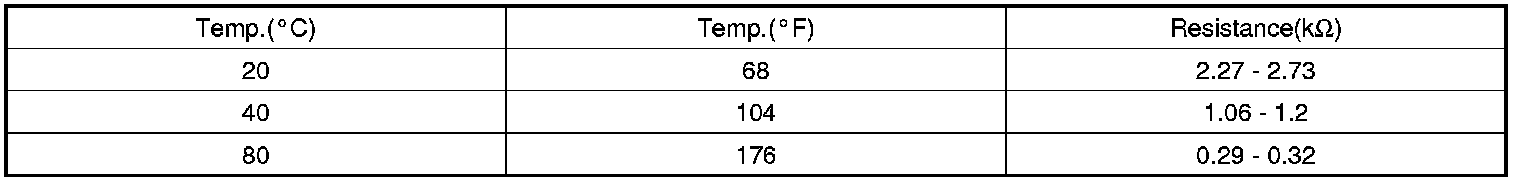

[ECTS]

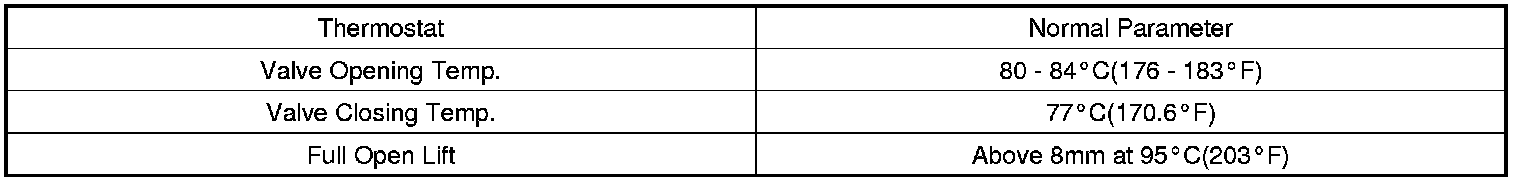

[THERMOSTAT]






Schematic Diagram

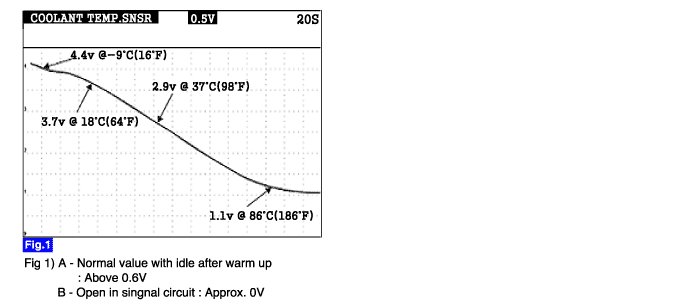

Signal Waveform
