P0198 Engine Oil Temp. Sensor High Input - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect OTS connector.

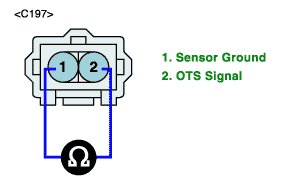

3. Measure resistance between terminals 1 and 2 of OTS connector.(Component side)

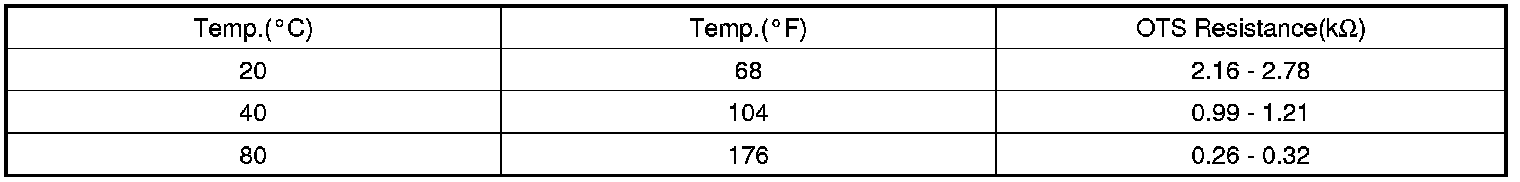

Specification









4. Is sensor switching properly?
YES
> Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO
> Check OTS for contamination, deterioration, or damage. Substitute with a known-good OTS and check for proper operation. If the problem is corrected, replace OTS and then go to "Verification of Vehicle Repair" procedure.
