Component Inspection

Engine Control
P0265 Cylinder 2 - Injector Circuit High:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect injector connector.

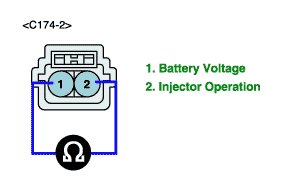

3. Measure resistance between terminals 1 and 2 of the injector connector(Component side).

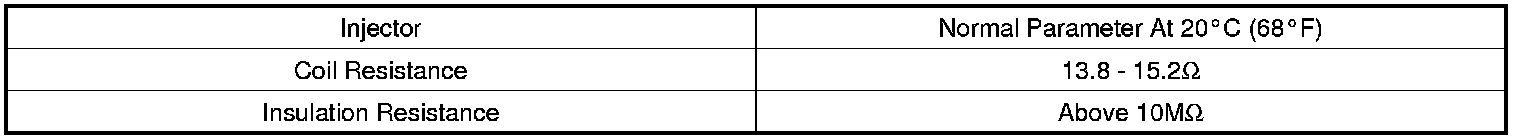

Specification









4. Is resistance within the specification?
YES
> Go to next step as below.
NO
> Check injector for contamination, deterioration, or damage. Substitute with a known-good injector and check for proper operation. If the problem is corrected, replace injector and then go to "Verification of Vehicle Repair" procedure.
