General Information

Engine Control
P0441 Evap. Emission System Incorrect Purge Flow - General Information

Component Location







General Description

The evaporative emission control system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The ECM controls the Purge Control Solenoid Valve (PCSV) to purge any collected vapors from the canister back to the engine for combustlon. This valve is actuated by the purge control signal from the PCM and controls fuel vapor from the canister to the intake manifold.

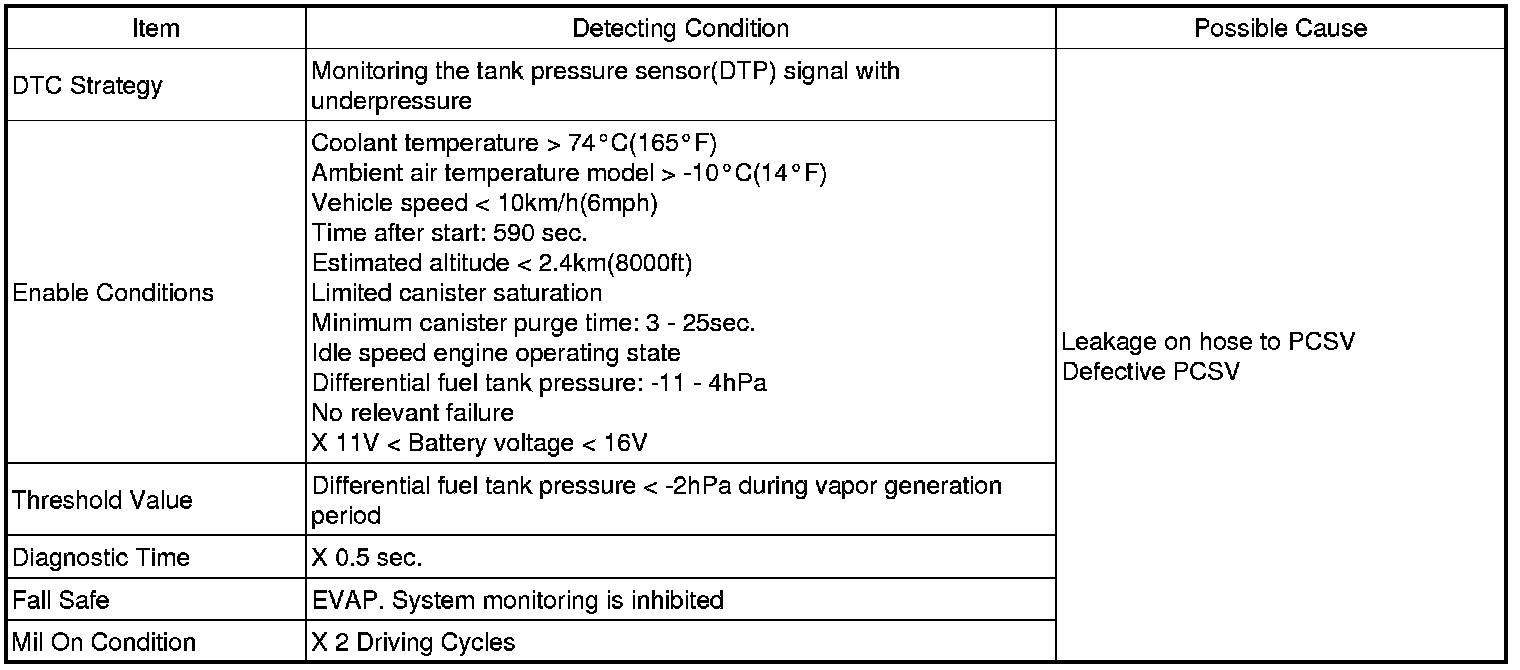

DTC Detecting Condition
