P0560 System Voltage Malfunction - General Information

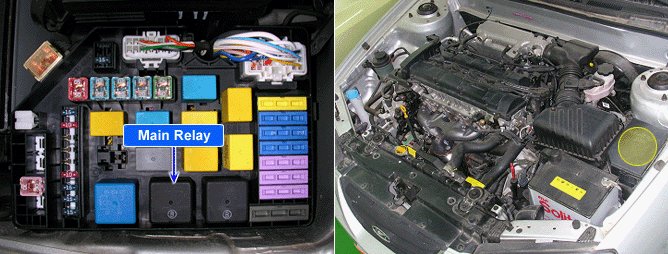

Component Location





General Description

The PCM provides ground to one side of the coil of the main relay and the other side is connected to the battery. The PCM monitors battery voltage and the voltage after the main relay.

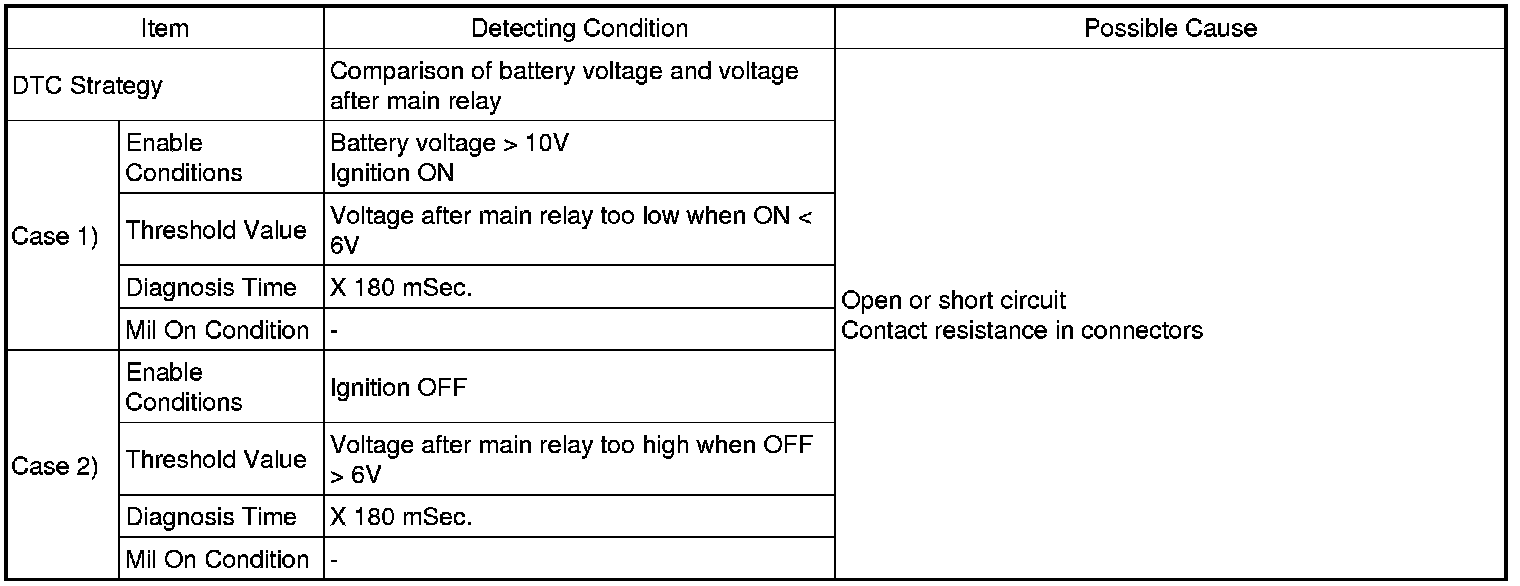

DTC Detecting Condition

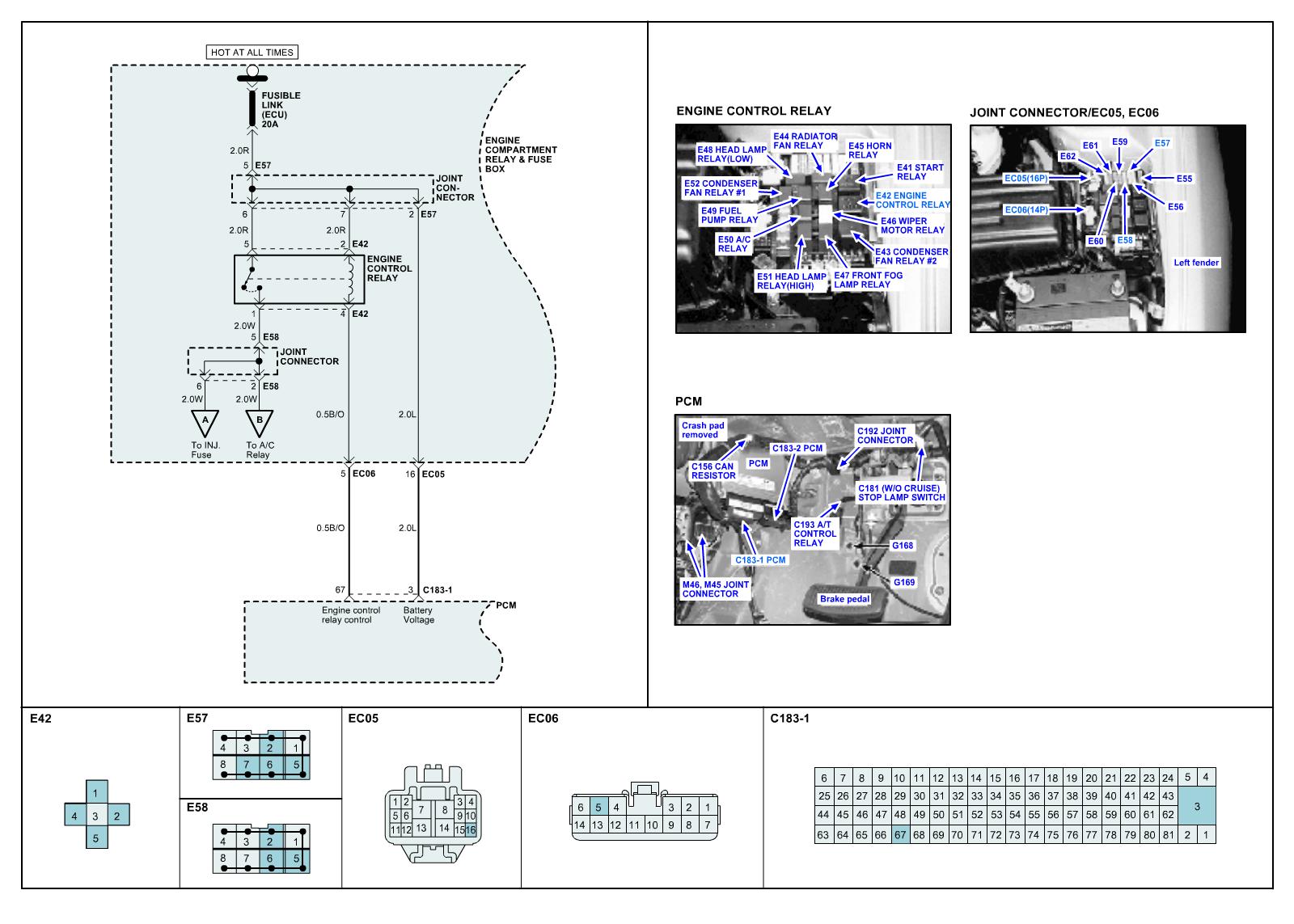

Schematic Diagram
