Component Inspection

Automatic Transaxle
P0707 Transaxle Range Switch Circuit Low Input - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Remove "TRANSAXLE RANGE SWITCH"

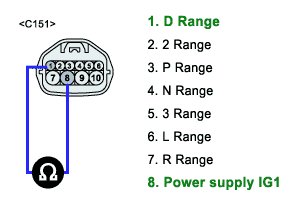

3. Measure the resistance between each terminal of the sensor
A. Specification : Approx. 0 Ohms








[ RANGE SWITCH continuity check table (Case of SPORTS MODE vehicle has no 3,2,L range) ]
4. Is resistance within specifications ?
YES
1) Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "Verification of Vehicle Repair" procedure.
NO
1) Replace "TRANSAXLE RANGE SWITCH" as necessary and Go to "Verification of Vehicle Repair" procedure
